How to Identify and Measure Fittings
Pipe size is an industry designation, not the actual size. View information about how to measure threaded and unthreaded pipe and pipe fittings.
More
Quick-Clamp High-Vacuum Fittings for Stainless Steel Tubing
- For Use With:
Fittings with Gasket End: Air, Argon, Helium, Nitrogen
All Other Fittings: Air - Specifications Met: ISO 2861
Instead of a gasket, these fittings have a metal-reinforced O-ring that is designed for high-vacuum applications, such as vacuum coating and heat treating, leak testing, and analyzing gases. Also known as KF, QF, and NW fittings, they are the most common type of connection in high-vacuum systems. Connect with a clamp and another quick-clamp fitting for fast, easy access to your line. To use fittings in pressure applications, use a pressure-rated ring (sold separately). Made of 304 stainless steel, these fittings have very good corrosion resistance.

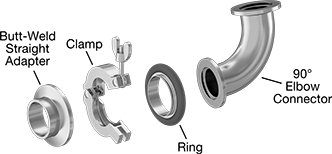

Note: To complete a connection, you’ll need two quick-clamp fittings, a ring, and a clamp (all sold separately).
For technical drawings and 3-D models, click on a part number.
- Temperature Range: 0° to 300° F
- Tubing: Use with 304/304L or 316/316L stainless steel
Fittings with butt-weld end weld to tubing for a permanent connection. Fittings with butt-weld end are also known as ferrules.
| For Tube OD (Quick Clamp) | Flange OD | High-Vacuum Flange Size | High Vacuum Connection Type | For Tube OD (Butt Weld) | Material | Max. Vacuum | Lg. | Each | |
| 1/2" | 1.18" | 10 | ISO-KF | 1/2" | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | 1 9/16" | 00000000 | 000000 |
| 3/4" | 1.18" | 16 | ISO-KF | 3/4" | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | 1 9/16" | 0000000 | 00000 |
| 1" | 1.57" | 25 | ISO-KF | 1" | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | 1 9/16" | 0000000 | 00000 |
| 1 1/2" | 2.16" | 40 | ISO-KF | 1 1/2" | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | 1 9/16" | 0000000 | 00000 |
| 2" | 2.95" | 50 | ISO-KF | 2" | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | 1 9/16" | 0000000 | 00000 |
- Temperature Range: 0° to 300° F
- Tubing: Use with 304/304L stainless steel, 316/316L stainless steel, or aluminum
Clamps tighten by hand.
Lever clamps are also known as toggle clamps.
Clamps with lanyard let you secure the clamp to equipment.
| For Tube OD | For Flange OD | For High-Vacuum Flange Size | High Vacuum Connection Type | Material | Max. Vacuum | Lanyard Lg. | Each | |
Wing Nut | ||||||||
|---|---|---|---|---|---|---|---|---|
| 1/2", 3/4" | 1.18" | 10, 16 | ISO-KF | Aluminum | 1 × 10 -7 torr @ 72° F | __ | 00000000 | 00000 |
| 1" | 1.57" | 25 | ISO-KF | Aluminum | 1 × 10 -7 torr @ 72° F | __ | 0000000 | 00000 |
| 1 1/2" | 2.16" | 40 | ISO-KF | Aluminum | 1 × 10 -7 torr @ 72° F | __ | 0000000 | 00000 |
| 2" | 2.95" | 50 | ISO-KF | Aluminum | 1 × 10 -7 torr @ 72° F | __ | 0000000 | 00000 |
Lever | ||||||||
| 1/2", 3/4" | 1.18" | 10, 16 | ISO-KF | Aluminum | 1 × 10 -7 torr @ 72° F | __ | 0000000 | 00000 |
| 1" | 1.57" | 25 | ISO-KF | Aluminum | 1 × 10 -7 torr @ 72° F | __ | 0000000 | 00000 |
| 1 1/2" | 2.16" | 40 | ISO-KF | Aluminum | 1 × 10 -7 torr @ 72° F | __ | 0000000 | 00000 |
| 2" | 2.95" | 50 | ISO-KF | Aluminum | 1 × 10 -7 torr @ 72° F | __ | 0000000 | 00000 |
Lever with Lanyard | ||||||||
| 3/4" | 1.18" | 16 | ISO-KF | Aluminum | 1 × 10 -7 torr @ 72° F | 5 3/4" | 00000000 | 00000 |
| 1" | 1.57" | 25 | ISO-KF | Aluminum | 1 × 10 -7 torr @ 72° F | 5 3/4" | 00000000 | 00000 |
| 1 1/2" | 2.16" | 40 | ISO-KF | Aluminum | 1 × 10 -7 torr @ 72° F | 5 3/4" | 00000000 | 00000 |
| 2" | 2.95" | 50 | ISO-KF | Aluminum | 1 × 10 -7 torr @ 72° F | 5 3/4" | 00000000 | 00000 |
- Temperature Range:
Fittings with Fluoroelastomer O-Ring: 0° to 300° F
Fittings with Silicone O-Ring: -50° to 390°F - Tubing: Use with 304/304L stainless steel, 316/316L stainless steel, or aluminum
Use these rings with quick-clamp high-vacuum fittings. They consist of a stainless steel inner ring covered by an O-ring.
Silicone rings withstand higher temperatures than fluoroelastomer ones.
| For Tube OD | For Flange OD | For High-Vacuum Flange Size | High Vacuum Connection Type | Inner Ring Material | Max. Vacuum | Max. Pressure | Each | |
Fluoroelastomer Rubber O-Ring | ||||||||
|---|---|---|---|---|---|---|---|---|
Rings | ||||||||
| 1/2" | 1.18" | 10 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | Not Rated | 00000000 | 00000 |
| 3/4" | 1.18" | 16 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | Not Rated | 00000000 | 0000 |
| 1" | 1.57" | 25 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | Not Rated | 0000000 | 00000 |
| 1 1/2" | 2.16" | 40 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | Not Rated | 0000000 | 00000 |
| 2" | 2.95" | 50 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | Not Rated | 0000000 | 00000 |
Rings with Stainless Steel Screen | ||||||||
| 3/4" | 1.18" | 16 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | Not Rated | 00000000 | 00000 |
| 1" | 1.57" | 25 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | Not Rated | 00000000 | 00000 |
| 1 1/2" | 2.16" | 40 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | Not Rated | 00000000 | 00000 |
| 2" | 2.95" | 50 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | Not Rated | 00000000 | 00000 |
Rings with Aluminum Outer Ring | ||||||||
| 3/4" | 1.18" | 16 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | Not Rated | 00000000 | 00000 |
| 1" | 1.57" | 25 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | 100 psi @ 72° F | 0000000 | 00000 |
| 1 1/2" | 2.16" | 40 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | 75 psi @ 72° F | 0000000 | 00000 |
| 2" | 2.95" | 50 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | 50 psi @ 72° F | 0000000 | 00000 |
Silicone Rubber O-Ring | ||||||||
Rings | ||||||||
| 1/2" | 1.18" | 10 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | Not Rated | 00000000 | 00000 |
| 3/4" | 1.18" | 16 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | Not Rated | 00000000 | 00000 |
| 1" | 1.57" | 25 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | Not Rated | 00000000 | 00000 |
| 1 1/2" | 2.16" | 40 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | Not Rated | 00000000 | 00000 |
| 2" | 2.95" | 50 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | Not Rated | 00000000 | 00000 |
- Temperature Range: 0° to 300° F
- Tubing: Use with 304/304L stainless steel, 316/316L stainless steel, or aluminum
Hose absorbs moderate vibration
| For Tube OD | Flange OD | High-Vacuum Flange Size | High Vacuum Connection Type | Material | Max. Vacuum | Bend Radius | Flexibility | Each | |
3 3/16" Lg. | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| 3/4" | 1.18" | 16 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | __ | Flexible | 0000000 | 000000 |
4 3/16" Lg. | |||||||||
| 1" | 1.57" | 25 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | __ | Flexible | 0000000 | 00000 |
| 1 1/2" | 2.16" | 40 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | __ | Flexible | 0000000 | 000000 |
| 2" | 2.95" | 50 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | __ | Flexible | 0000000 | 000000 |
12" Lg. | |||||||||
| 3/4" | 1.18" | 16 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | 1 5/8" | Flexible | 00000000 | 000000 |
| 1" | 1.57" | 25 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | 1 3/8" | Flexible | 00000000 | 000000 |
| 1 1/2" | 2.16" | 40 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | 2 1/2" | Flexible | 00000000 | 000000 |
| 2" | 2.95" | 50 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | 3 1/4" | Flexible | 00000000 | 000000 |
24" Lg. | |||||||||
| 3/4" | 1.18" | 16 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | 1 5/8" | Flexible | 00000000 | 000000 |
| 1" | 1.57" | 25 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | 1 3/8" | Flexible | 00000000 | 000000 |
| 1 1/2" | 2.16" | 40 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | 2 1/2" | Flexible | 00000000 | 000000 |
| 2" | 2.95" | 50 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | 3 1/4" | Flexible | 00000000 | 000000 |
39" Lg. | |||||||||
| 3/4" | 1.18" | 16 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | 1 5/8" | Flexible | 00000000 | 000000 |
| 1" | 1.57" | 25 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | 1 3/8" | Flexible | 00000000 | 000000 |
| 1 1/2" | 2.16" | 40 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | 2 1/2" | Flexible | 00000000 | 000000 |
| 2" | 2.95" | 50 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | 3 1/4" | Flexible | 00000000 | 000000 |
- Temperature Range: 0° to 190° F
- Tubing: Use with 304/304L or 316/316L stainless steel
Valves are also known as vacuum isolation valves. They connect to a vacuum system so you can install gauges, release gases, and remove air. They operate manually and have a compact body that fits easily into tight spaces.
| Actuation | For Tube OD | Flange OD | High-Vacuum Flange Size | Max. Vacuum | Body Material | Overall Ht. | Overall Lg. | Each | |
| Manual | 1/2" | 1 3/16" | 10 | 10 -7 torr @ 72° F | 304 Stainless Steel | 4 1/8" | 2 1/4" | 00000000 | 0000000 |
| Manual | 3/4" | 1 3/16" | 16 | 10 -7 torr @ 72° F | 304 Stainless Steel | 4 1/8" | 2 1/4" | 00000000 | 000000 |
| Manual | 1" | 1 9/16" | 25 | 10 -7 torr @ 72° F | 304 Stainless Steel | 5 5/8" | 3" | 00000000 | 000000 |
| Manual | 1 1/2" | 2 1/8" | 40 | 10 -7 torr @ 72° F | 304 Stainless Steel | 6 3/8" | 3 7/8" | 00000000 | 000000 |
| Manual | 2" | 2 15/16" | 50 | 10 -7 torr @ 72° F | 304 Stainless Steel | 8" | 4 1/2" | 00000000 | 000000 |
Butt-Weld Fittings for Stainless Steel Tubing
- For Use With: See table
- Temperature Range: See table
- Tubing:
304 Stainless Steel: Use with 304/304L stainless steel that meets ASTM A213, ASTM A269, or ASTM A270, except DIN EN 10357 fittings with only ASTM A269 or ASTM A270
316 Stainless Steel: Use with 316/316L stainless steel that meets ASTM A213, ASTM A269, or ASTM A270, except ASME BPE and DIN EN 10357 fittings with only ASTM A269 or ASTM A270 - Specifications Met: See table
Weld these fittings to tubing for a permanent, flush connection that permits smooth flow through a line.
304 stainless steel fittings have very good corrosion resistance. 316 stainless steel fittings have excellent corrosion resistance.
For technical drawings and 3-D models, click on a part number.
| For Tube OD | Max. Pressure | Max. Vacuum | Temp. Range, °F | Length (A) | Wall Thick. | For Use With | Each | |
304/304L Stainless Steel | ||||||||
|---|---|---|---|---|---|---|---|---|
Polished | ||||||||
| 2 1/2" | 450 psi @ 72° F | 10 -6 torr @ 72° F | -65° to 250° | 1 9/16" | 0.065" | Dairy, Food | 00000000 | 000000 |
Dull | ||||||||
| 2 1/2" | 450 psi @ 72° F | 10 -6 torr @ 72° F | -65° to 250° | 1 9/16" | 0.065" | Air, Food, Water | 00000000 | 00000 |
316/316L Stainless Steel | ||||||||
Polished | ||||||||
| 2 1/2" | 450 psi @ 72° F | 10 -6 torr @ 72° F | -65° to 250° | 1 9/16" | 0.065" | Dairy, Food | 0000000 | 00000 |
Clamps for Claw-Clamp High-Vacuum Fittings for Stainless Steel Tubing
Connect claw-clamp high-vacuum fittings for an airtight seal. For a complete connection, you'll need four clamps and a ring (sold separately).
Single-claw clamps have a clamp on one end and an exposed bolt on the other. Thread the bolt-end directly into the body of pumps, valves, or other high-vacuum components.
For technical drawings and 3-D models, click on a part number.
Material | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| For Tube OD | For Flange OD | For High-Vacuum Flange Size | High Vacuum Connection Type | O-Ring | Inner Ring | Max. Vacuum | Max. Temp., °F | Each | |
| 2 1/2" | 3.74" | 63 | ISO-K | Viton® Fluoroelastomer Rubber | 304 Stainless Steel | 1 × 10 -9 torr @ 72° F | 400° | 0000000 | 000000 |
| 3" | 4.33" | 80 | ISO-K | Viton® Fluoroelastomer Rubber | 304 Stainless Steel | 1 × 10 -9 torr @ 72° F | 400° | 000000 | 00000 |
| 4" | 5.12" | 100 | ISO-K | Viton® Fluoroelastomer Rubber | 304 Stainless Steel | 1 × 10 -9 torr @ 72° F | 400° | 0000000 | 00000 |
| 6" | 7.09" | 160 | ISO-K | Viton® Fluoroelastomer Rubber | 304 Stainless Steel | 1 × 10 -9 torr @ 72° F | 400° | 0000000 | 00000 |
Quick-Clamp High-Vacuum Fittings for Aluminum Tubing
- For Use With: Air
- Specifications Met: ISO 2861
For use in high-vacuum systems, these fittings use a metal reinforced O-ring to create an airtight seal. To form a complete connection, pair two adapters with a clamp and a ring (all sold separately). Made of aluminum, these fittings are lightweight and resist corrosion. This and the airtight seal make them a good choice for vacuum coating, heat treating, or leak testing. Also known as KF, QF, and NW fittings.
For technical drawings and 3-D models, click on a part number.
- Temperature Range: 0° to 300° F
- Tubing: Use with aluminum
| For Tube OD | Flange OD | High-Vacuum Flange Size | High Vacuum Connection Type | Wall Thick. | Material | Max. Vacuum | Lg. | Each | |
| 3/4" | 1.18" | 16 | ISO-KF | 0.065" | Aluminum | 1 × 10 -7 torr @ 72° F | 1 9/16" | 0000000 | 000000 |
| 1" | 1.57" | 25 | ISO-KF | 0.065" | Aluminum | 1 × 10 -7 torr @ 72° F | 1 9/16" | 0000000 | 00000 |
| 1 1/2" | 2.16" | 40 | ISO-KF | 0.065" | Aluminum | 1 × 10 -7 torr @ 72° F | 1 9/16" | 0000000 | 00000 |
| 2" | 2.95" | 50 | ISO-KF | 0.065" | Aluminum | 1 × 10 -7 torr @ 72° F | 1 9/16" | 0000000 | 00000 |
- Temperature Range: 0° to 300° F
- Tubing: Use with 304/304L stainless steel, 316/316L stainless steel, or aluminum
Connect quick-clamp fittings in high-vacuum applications. Clamps tighten by hand. They are aluminum, which is lightweight with good corrosion resistance.
Lever clamps are also known as toggle clamps.
Clamps with lanyard let you secure the clamp to equipment.
| For Tube OD | For Flange OD | For High-Vacuum Flange Size | High Vacuum Connection Type | Material | Max. Vacuum | Lanyard Lg. | Each | |
Wing Nut | ||||||||
|---|---|---|---|---|---|---|---|---|
| 1/2", 3/4" | 1.18" | 10, 16 | ISO-KF | Aluminum | 1 × 10 -7 torr @ 72° F | __ | 00000000 | 00000 |
| 1" | 1.57" | 25 | ISO-KF | Aluminum | 1 × 10 -7 torr @ 72° F | __ | 0000000 | 00000 |
| 1 1/2" | 2.16" | 40 | ISO-KF | Aluminum | 1 × 10 -7 torr @ 72° F | __ | 0000000 | 00000 |
| 2" | 2.95" | 50 | ISO-KF | Aluminum | 1 × 10 -7 torr @ 72° F | __ | 0000000 | 00000 |
Lever | ||||||||
| 1/2", 3/4" | 1.18" | 10, 16 | ISO-KF | Aluminum | 1 × 10 -7 torr @ 72° F | __ | 0000000 | 00000 |
| 1" | 1.57" | 25 | ISO-KF | Aluminum | 1 × 10 -7 torr @ 72° F | __ | 0000000 | 00000 |
| 1 1/2" | 2.16" | 40 | ISO-KF | Aluminum | 1 × 10 -7 torr @ 72° F | __ | 0000000 | 00000 |
| 2" | 2.95" | 50 | ISO-KF | Aluminum | 1 × 10 -7 torr @ 72° F | __ | 0000000 | 00000 |
Lever with Lanyard | ||||||||
| 3/4" | 1.18" | 16 | ISO-KF | Aluminum | 1 × 10 -7 torr @ 72° F | 5 3/4" | 00000000 | 00000 |
| 1" | 1.57" | 25 | ISO-KF | Aluminum | 1 × 10 -7 torr @ 72° F | 5 3/4" | 00000000 | 00000 |
| 1 1/2" | 2.16" | 40 | ISO-KF | Aluminum | 1 × 10 -7 torr @ 72° F | 5 3/4" | 00000000 | 00000 |
| 2" | 2.95" | 50 | ISO-KF | Aluminum | 1 × 10 -7 torr @ 72° F | 5 3/4" | 00000000 | 00000 |
- Temperature Range: 0° to 350° F
- Tubing: Use with aluminum
| For Tube OD | For Flange OD | For High-Vacuum Flange Size | High Vacuum Connection Type | Inner Ring Material | O-Ring Material | Max. Vacuum | Each | |
| 3/4" | 1.18" | 16 | ISO-KF | Aluminum | Viton® Fluoroelastomer Rubber | 1 × 10 -7 torr @ 72° F | 0000000 | 00000 |
| 1" | 1.57" | 25 | ISO-KF | Aluminum | Viton® Fluoroelastomer Rubber | 1 × 10 -7 torr @ 72° F | 0000000 | 0000 |
| 1 1/2" | 2.16" | 40 | ISO-KF | Aluminum | Viton® Fluoroelastomer Rubber | 1 × 10 -7 torr @ 72° F | 0000000 | 00000 |
| 2" | 2.95" | 50 | ISO-KF | Aluminum | Viton® Fluoroelastomer Rubber | 1 × 10 -7 torr @ 72° F | 0000000 | 00000 |
- Temperature Range: 0° to 300° F
- Tubing: Use with 304/304L stainless steel, 316/316L stainless steel, or aluminum
Hose absorbs moderate vibration.
| For Tube OD | Flange OD | High-Vacuum Flange Size | High Vacuum Connection Type | Material | Max. Vacuum | Bend Radius | Flexibility | Each | |
3 3/16" Lg. | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| 3/4" | 1.18" | 16 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | __ | Flexible | 0000000 | 000000 |
4 3/16" Lg. | |||||||||
| 1" | 1.57" | 25 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | __ | Flexible | 0000000 | 00000 |
| 1 1/2" | 2.16" | 40 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | __ | Flexible | 0000000 | 000000 |
| 2" | 2.95" | 50 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | __ | Flexible | 0000000 | 000000 |
12" Lg. | |||||||||
| 3/4" | 1.18" | 16 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | 1 5/8" | Flexible | 00000000 | 000000 |
| 1" | 1.57" | 25 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | 1 3/8" | Flexible | 00000000 | 000000 |
| 1 1/2" | 2.16" | 40 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | 2 1/2" | Flexible | 00000000 | 000000 |
| 2" | 2.95" | 50 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | 3 1/4" | Flexible | 00000000 | 000000 |
24" Lg. | |||||||||
| 3/4" | 1.18" | 16 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | 1 5/8" | Flexible | 00000000 | 000000 |
| 1" | 1.57" | 25 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | 1 3/8" | Flexible | 00000000 | 000000 |
| 1 1/2" | 2.16" | 40 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | 2 1/2" | Flexible | 00000000 | 000000 |
| 2" | 2.95" | 50 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | 3 1/4" | Flexible | 00000000 | 000000 |
39" Lg. | |||||||||
| 3/4" | 1.18" | 16 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | 1 5/8" | Flexible | 00000000 | 000000 |
| 1" | 1.57" | 25 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | 1 3/8" | Flexible | 00000000 | 000000 |
| 1 1/2" | 2.16" | 40 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | 2 1/2" | Flexible | 00000000 | 000000 |
| 2" | 2.95" | 50 | ISO-KF | 304 Stainless Steel | 1 × 10 -7 torr @ 72° F | 3 1/4" | Flexible | 00000000 | 000000 |
- Temperature Range: 0° to 190° F
Valves are also known as vacuum isolation valves. They connect to a vacuum system so you can install gauges, release gases, and remove air. They operate manually and have a compact body that fits easily into tight spaces.
| Actuation | For Tube OD | Flange OD | High-Vacuum Flange Size | Max. Vacuum | Body Material | Overall Ht. | Overall Lg. | Each | |
| Manual | 3/4" | 1 3/16" | 16 | 10 -7 torr @ 72° F | 304 Stainless Steel | 4 1/8" | 2 1/4" | 00000000 | 0000000 |
| Manual | 1" | 1 9/16" | 25 | 10 -7 torr @ 72° F | 304 Stainless Steel | 5 5/8" | 3" | 00000000 | 000000 |
| Manual | 1 1/2" | 2 1/8" | 40 | 10 -7 torr @ 72° F | 304 Stainless Steel | 6 3/8" | 3 7/8" | 00000000 | 000000 |
| Manual | 2" | 2 15/16" | 50 | 10 -7 torr @ 72° F | 304 Stainless Steel | 8" | 4 1/2" | 00000000 | 000000 |
