How to Identify and Measure Fittings
Pipe size is an industry designation, not the actual size. View information about how to measure threaded and unthreaded pipe and pipe fittings.
More
Extra-High-Polish Metal
Quick-Clamp Sanitary Tube Fittings
- For Use With: Air, Deionized Water, Pharmaceuticals, Water
- Temperature Range: See Gaskets
- Tubing: Use with 316/316L stainless steel that meets ASTM A269 or ASTM A270
- Specifications Met: See table
- Certification: Material Certificate with Traceable Lot Number and Test Report
Polished to a 20 Ra finish, these fittings have an extra-smooth interior that prevents product buildup and inhibits bacteria growth. Use them in pharmaceutical and bioprocessing applications. Also known as tri-clamp fittings, they connect with a clamp, a gasket, and another quick-clamp fitting for a fast and easy way to access your line. Fittings are 316 stainless steel for excellent corrosion resistance.
The pressure rating of the fitting will depend on the clamp you choose.
The temperature rating of the fitting will vary depending on the gasket material you choose.

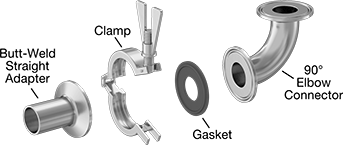

Note: To complete a connection, you’ll need two quick-clamp fittings, a clamp, and a gasket (all sold separately).
For technical drawings and 3-D models, click on a part number.
Fittings with butt-weld end are also known as ferrules; they weld to tubing for a permanent connection.
| For Tube OD | Wall Thick. | Material | Max. Pressure | Specifications Met | Each | |
| 1 1/2" | 0.065" | 316/316L Stainless Steel | 700 psi @ 72° F | ASME BPE | 0000000 | 000000 |
Clamps have a wing nut and tighten by hand.
| For Tube OD | For Flange OD | Material | Max. Pressure | Each | |
| 1", 1 1/2" | 1.984" | 316 Stainless Steel | 700 psi @ 72° F | 0000000 | 000000 |
Buna-N gaskets are oil resistant. EPDM gaskets resist water and steam and work well in humid environments. Silicone gaskets withstand high temperatures. Fluoroelastomer gaskets stand up to fuel, oil, and acid condensates. PTFE gaskets withstand harsh chemicals, with the exception of molten alkali metal and elemental fluorine.
| For Tube OD | ID | OD | Thick. | Temp. Range, °F | Color | Specifications Met | Each | |
Buna-N Rubber | ||||||||
|---|---|---|---|---|---|---|---|---|
| 1 1/2" | 1.400" | 1.980" | 0.203" | -30° to 200° | Black | 3-A Certified 18-03, FDA Compliant 21 CFR 177.1550, FDA Compliant 21 CFR 177.2600 | 0000000 | 00000 |
EPDM Rubber | ||||||||
| 1" | 0.900" | 1.980" | 0.203" | -20° to 300° | Black | 3-A Certified 18-03, FDA Compliant 21 CFR 177.1550, FDA Compliant 21 CFR 177.2600 | 0000000 | 0000 |
| 1 1/2" | 1.400" | 1.980" | 0.203" | -20° to 300° | Black | 3-A Certified 18-03, FDA Compliant 21 CFR 177.1550, FDA Compliant 21 CFR 177.2600 | 0000000 | 0000 |
Silicone Rubber | ||||||||
| 1 1/2" | 1.400" | 1.980" | 0.203" | -40° to 450° | Clear | 3-A Certified 18-03, FDA Compliant 21 CFR 177.1550, FDA Compliant 21 CFR 177.2600 | 0000000 | 0000 |
Fluoroelastomer Rubber | ||||||||
| 1 1/2" | 1.400" | 1.980" | 0.203" | -15° to 400° | Black | 3-A Certified 18-03, FDA Compliant 21 CFR 177.2600 | 0000000 | 0000 |
PTFE Plastic | ||||||||
| 1 1/2" | 1.400" | 1.980" | 0.203" | -100° to 500° | White | 3-A Certified 20-27 | 00000000 | 0000 |
