High-Polish Gasket Fittings for Stainless Steel Tubing
- For Use With: Air, Dairy, Water
- Temperature Range: See Gaskets
- Tubing:
Inch Butt-Weld Fittings and Quick-Clamp Fittings: Use with welded 304/304L or 316/316L stainless steel that meets ASTM 269 or ASTM 27
Metric Butt-Weld Fittings: Use with welded or seamless 316 stainless steel - Specifications Met:
304 Stainless Steel Adapters, Caps, and Nuts: 3-A Certified 63-04
Gaskets: See table
Join these fittings with a threaded nut and a gasket for a secure connection that grants you easy access to your line. Also known as bevel seat fittings, the fittings are beveled to fit snugly around the gasket, creating a vibration-resistant seal. Fittings are polished to a smooth finish on the interior to prevent product buildup and bacterial growth.
316 stainless steel fittings have excellent corrosion resistance.

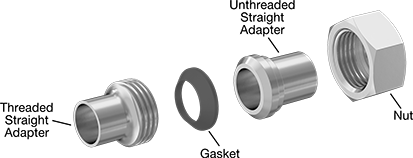

Note: For a complete connection, you’ll need a threaded straight adapter, an unthreaded straight adapter, a gasket, and a nut (all sold separately unless noted).
For technical drawings and 3-D models, click on a part number.
Butt Weld Tube Connection | ||||||
|---|---|---|---|---|---|---|
| Gasket Connection | Butt Weld Connection | Wall Thick. | Material | Max. Pressure | Each | |
| 41mm | 1 1/2" | 0.809" | 316 Stainless Steel | 580 psi @ 72° F | 00000000 | 000000 |
| For Tube OD | Nut Material | Max. Pressure | Each | |
| 41mm | 304 Stainless Steel | 580 psi @ 72° F | 00000000 | 000000 |
| For Tube OD | ID | OD | Thick. | Temp. Range, °F | Color | Each | |
Buna-N Rubber | |||||||
|---|---|---|---|---|---|---|---|
| 41mm | 42.000mm | 52.000mm | 5mm | -30° to 200° | Blue | 0000000 | 00000 |
