Robot Bases
Elevate robot arms with these bases so they can reach onto raised surfaces, such as conveyor belts or workstations. Made from steel, these bases are strong and built to last—they’re also machinable and weldable, so you can modify the mounting plates to suit your application. Secure them to the ground or other flat surface using the holes in the bottom plate. Additional holes are designed to level the bases—thread fasteners (not included) through each hole and adjust their depth to compensate for uneven floors.
For technical drawings and 3-D models, click on a part number.
Bolt-on bases come with mounting holes that match the patterns on commonly used robot arms.
Bases with cable routing hole are hollow, so you can feed cables, wires, and tubes through the center column. These bases help keep your cables organized and out of the way.
Overall | Robot Mount. Location | Floor Mount. Location | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| For Robot Arm Manufacturer (Series/Model No.) | Ht. | Lg. | Wd. | Static Load Cap., lbs. | Mount. Fasteners Included | Mount. Hole Dia. (No. of Holes) | Mount. Plate Dia. | Mount. Hole Dia. (No. of Holes) | Mount. Plate Lg. | Mount. Plate Wd. | Features | Each | |
Gray Powder-Coated Steel | |||||||||||||
| FANUC (CRX 10iA, CRX 10iA/L) Universal Robots (UR3, UR3e, UR5, UR5e, UR10, UR10e, UR16, UR16e) Omron (TM 5, TM 12, TM 14) | 24" | 11 7/8" | 11 7/8" | 200 | No | 0.236" (4) 0.315" (2) | 8" | 1/2" (4) | 11 7/8" | 11 7/8" | 1/2"-13 Holes for Leveling, Cable Routing Hole | 0000000 | 0000000 |
| FANUC (CRX 10iA, CRX 10iA/L) Universal Robots (UR3, UR3e, UR5, UR5e, UR10, UR10e, UR16, UR16e) Omron (TM 5, TM 12, TM 14) | 30" | 11 7/8" | 11 7/8" | 200 | No | 0.236" (4) 0.315" (2) | 8" | 1/2" (4) | 11 7/8" | 11 7/8" | 1/2"-13 Holes for Leveling, Cable Routing Hole | 0000000 | 000000 |
| FANUC (CRX 10iA, CRX 10iA/L) Universal Robots (UR3, UR3e, UR5, UR5e, UR10, UR10e, UR16, UR16e) Omron (TM 5, TM 12, TM 14) | 36" | 11 7/8" | 11 7/8" | 200 | No | 0.236" (4) 0.315" (2) | 8" | 1/2" (4) | 11 7/8" | 11 7/8" | 1/2"-13 Holes for Leveling, Cable Routing Hole | 0000000 | 000000 |
| FANUC (CRX 10iA, CRX 10iA/L) Universal Robots (UR3, UR3e, UR5, UR5e, UR10, UR10e, UR16, UR16e) Omron (TM 5, TM 12, TM 14) | 42" | 11 7/8" | 11 7/8" | 200 | No | 0.236" (4) 0.315" (2) | 8" | 1/2" (4) | 11 7/8" | 11 7/8" | 1/2"-13 Holes for Leveling, Cable Routing Hole | 0000000 | 000000 |
| FANUC (CRX 10iA, CRX 10iA/L) Universal Robots (UR3, UR3e, UR5, UR5e, UR10, UR10e, UR16, UR16e) Omron (TM 5, TM 12, TM 14) | 48" | 11 7/8" | 11 7/8" | 200 | No | 0.236" (4) 0.315" (2) | 8" | 1/2" (4) | 11 7/8" | 11 7/8" | 1/2"-13 Holes for Leveling, Cable Routing Hole | 0000000 | 000000 |
Bolt-on bases come with mounting holes that match the patterns on commonly used robot arms.
Overall | Robot Mount. Location | Floor Mount. Location | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| For Robot Arm Manufacturer (Series/Model No.) | Ht. | Lg. | Wd. | Static Load Cap., lbs. | Mount. Fasteners Included | Mount. Hole Dia. (No. of Holes) | Mount. Plate Lg. | Mount. Plate Wd. | Mount. Hole Dia. (No. of Holes) | Mount. Plate Lg. | Mount. Plate Wd. | Features | Each | |
Gray Powder-Coated Steel | ||||||||||||||
| FANUC (LR Mate 200iD/4S) | 24" | 14" | 14" | 200 | No | 0.331" (4) | 11" | 11" | 3/4" (8) | 14" | 14" | 5/8"-11 Holes for Leveling | 0000000 | 000000000 |
| FANUC (LR Mate 200iD/4S) | 30" | 14" | 14" | 200 | No | 0.331" (4) | 11" | 11" | 3/4" (8) | 14" | 14" | 5/8"-11 Holes for Leveling | 0000000 | 00000000 |
| FANUC (LR Mate 200iD/4S) | 36" | 14" | 14" | 200 | No | 0.331" (4) | 11" | 11" | 3/4" (8) | 14" | 14" | 5/8"-11 Holes for Leveling | 0000000 | 00000000 |
| FANUC (LR Mate 200iD/4S) | 42" | 20" | 20" | 200 | No | 0.331" (4) | 11" | 11" | 3/4" (8) | 20" | 20" | 5/8"-11 Holes for Leveling | 0000000 | 00000000 |
| FANUC (LR Mate 200iD/4S) | 48" | 20" | 20" | 200 | No | 0.331" (4) | 11" | 11" | 3/4" (8) | 20" | 20" | 5/8"-11 Holes for Leveling | 0000000 | 00000000 |
| FANUC (LR Mate 200iD/7L) | 24" | 14" | 14" | 200 | No | 0.331" (4) | 11" | 11" | 3/4" (8) | 14" | 14" | 5/8"-11 Holes for Leveling | 0000000 | 00000000 |
| FANUC (LR Mate 200iD/7L) | 30" | 14" | 14" | 200 | No | 0.331" (4) | 11" | 11" | 3/4" (8) | 14" | 14" | 5/8"-11 Holes for Leveling | 000000 | 00000000 |
| FANUC (LR Mate 200iD/7L) | 36" | 14" | 14" | 200 | No | 0.331" (4) | 11" | 11" | 3/4" (8) | 14" | 14" | 5/8"-11 Holes for Leveling | 0000000 | 00000000 |
| FANUC (LR Mate 200iD/7L) | 42" | 20" | 20" | 200 | No | 0.331" (4) | 11" | 11" | 3/4" (8) | 20" | 20" | 5/8"-11 Holes for Leveling | 0000000 | 00000000 |
| FANUC (LR Mate 200iD/7L) | 48" | 20" | 20" | 200 | No | 0.331" (4) | 11" | 11" | 3/4" (8) | 20" | 20" | 5/8"-11 Holes for Leveling | 0000000 | 00000000 |
For a custom mounting pattern, drill your own holes onto blank bases.
Overall | Robot Mount. Location | Floor Mount. Location | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ht. | Lg. | Wd. | Static Load Cap., lbs. | Mount. Fasteners Included | Mount. Plate Lg. | Mount. Plate Wd. | Mount. Hole Dia. (No. of Holes) | Mount. Plate Lg. | Mount. Plate Wd. | Features | Each | |
Gray Powder-Coated Steel | ||||||||||||
| 24" | 14" | 14" | 200 | No | 11" | 11" | 3/4" (8) | 14" | 14" | 5/8"-11 Holes for Leveling | 0000000 | 0000000 |
| 30" | 14" | 14" | 200 | No | 11" | 11" | 3/4" (8) | 14" | 14" | 5/8"-11 Holes for Leveling | 0000000 | 000000 |
| 36" | 14" | 14" | 200 | No | 11" | 11" | 3/4" (8) | 14" | 14" | 5/8"-11 Holes for Leveling | 0000000 | 00000000 |
| 42" | 20" | 20" | 200 | No | 11" | 11" | 3/4" (8) | 20" | 20" | 5/8"-11 Holes for Leveling | 0000000 | 00000000 |
| 48" | 20" | 20" | 200 | No | 11" | 11" | 3/4" (8) | 20" | 20" | 5/8"-11 Holes for Leveling | 0000000 | 00000000 |
45° base extensions tilt your robot arm forward so that it can reach lower than if it were mounted horizontally. These extensions help your robot arm reach inside machines or deep boxes, or downward onto a work surface. Mount them to a flat surface, or to the top of another base with a cable routing hole. They include fasteners to attach them to another base, but not to flat surfaces.
Overall | Robot Mount. Location | Base, Floor Mount. Location | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| For Robot Arm Manufacturer (Series/Model No.) | Angle | Ht. | Lg. | Wd. | Static Load Cap., lbs. | Mount. Fasteners Included | Mount. Hole Dia. (No. of Holes) | Mount. Plate Dia. | Mount. Fasteners Included | Mount. Plate Dia. | Features | Each | |
Gray Powder-Coated Steel | |||||||||||||
| FANUC (CRX 10iA, CRX 10iA/L) Universal Robots (UR3, UR3e, UR5, UR5e, UR10, UR10e, UR16, UR16e) Omron (TM 5, TM 12, TM 14) | 15° | 6 3/8" | 8 1/8" | 7 9/16" | 200 | No | 0.236" (4) 0.315" (2) | 8" | Yes | 7 9/16" | Cable Routing Hole | 0000000 | 0000000 |
| FANUC (CRX 10iA, CRX 10iA/L) Universal Robots (UR3, UR3e, UR5, UR5e, UR10, UR10e, UR16, UR16e) Omron (TM 5, TM 12, TM 14) | 45° | 8 1/8" | 8 1/8" | 7 9/16" | 200 | No | 0.236" (4) 0.315" (2) | 8" | Yes | 7 9/16" | Cable Routing Hole | 0000000 | 000000 |
Use these mounts with robot bases to secure your controller near your robot arm for easy access and to cut down on cord lengths. When installed, these mounts elevate your controller off the floor, keeping it out of harm’s way.
Overall | Controller Mount. Location | Base Mount. Location | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| For Robot Arm Manufacturer (Series/Model No.) | Ht. | Lg. | Wd. | Mount. Fasteners Included | Mount. Hole Dia. (No. of Holes) | Mount. Plate Lg. | Mount. Plate Wd. | Mount. Fasteners Included | Mount. Hole Dia. (No. of Holes) | Each | |
Gray Powder-Coated Steel | |||||||||||
| FANUC (CRX 10iA, CRX 10iA/L) Universal Robots (UR3, UR3e, UR5, UR5e, UR10, UR10e, UR16, UR16e) Omron (TM 5, TM 12, TM 14) | 4 1/4" | 16 3/4" | 11" | Yes | 1/4" (12) | 3 1/8" | 9" | Yes | 1/4" (5) | 0000000 | 0000000 |
Robot Workstations
For technical drawings and 3-D models, click on a part number.
These stations are a portable working home for your robot arm. Roll them between jobs and lock the casters in place while working. Keep the work surface even by adjusting the leveling feet. A controller mount secures your controller beneath the arm, out of harm’s way but easy to access.
Overall | Capacity, lbs | Robot Mount. Location | Controller Mount. Location | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| For Robot Arm Manufacturer (Series/Model No.) | Ht. | Wd. | Dp. | Top Thick. | Top | Overall | Foot Type | Includes | Mount. Hole Diameter (No. of Holes) | Mount. Fasteners Included | Mount. Hole Dia. (No. of Holes) | Mount. Fasteners Included | Each | |
Gray Powder-Coated Steel | ||||||||||||||
| FANUC (CRX 10iA, CRX 10iA/L) Universal Robots (UR3, UR3e, UR5, UR5e, UR10, UR10e, UR16, UR16e) Omron (TM 5, TM 12, TM 14) | 37 1/4" | 47 1/4" | 27 1/2" | 1/4" | 250 | 400 | Caster | Four Leveling Feet | 0.197" (4) 0.264" (8) | No | 1/4" (12) | No | 0000000 | 000000000 |
Attach plates to platforms to keep workpieces positioned for easy, repeatable access. All include handles and locator mounting holes for securing them to platforms. Made of stainless steel, the plates stand up to corrosion.
Diamond plates are good for holding rectangular or cylindrical parts. Peg plates accept pegs (not included), which can be moved around to create custom layouts for parts with unique shapes. They come with rest pads that attach to the pegs for supporting heavy parts. Use blank plates for machining custom holes for your specific parts or when you want to weld components to the plate.
For short parts, you may need to add a blank plate for support, so the part can be accessed. For taller parts, you’ll need to use two plates spaced apart to act as a brace. Make sure the part’s center of gravity falls below the plate that is on top.
Overall | Hole | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lg. | Wd. | Thick. | Lg. | Wd. | Dia. | Center-to-Center | No. of Holes | No. of Columns | No. of Rows | Each | |
Stainless Steel | |||||||||||
Diamond Plates | |||||||||||
| 27 3/4" | 20 3/4" | 0.135" | 1 3/16" | 1 3/16" | __ | 2" | 96 | 8 | 12 | 0000000 | 0000000 |
| 27 3/4" | 20 3/4" | 0.135" | 2 3/8" | 2 3/8" | __ | 3 15/16" | 24 | 4 | 6 | 0000000 | 000000 |
| 27 3/4" | 20 3/4" | 0.135" | 3 9/16" | 3 9/16" | __ | 5 1/2" | 12 | 3 | 4 | 0000000 | 000000 |
Peg Plates | |||||||||||
| 27 3/4" | 20 3/4" | 0.135" | __ | __ | 9/32" | 1" | 384 | 16 | 24 | 0000000 | 000000 |
Blank Plates | |||||||||||
| 27 3/4" | 20 3/4" | 0.135" | __ | __ | __ | __ | __ | __ | __ | 0000000 | 000000 |
Use pegs to create custom layouts on part presentation plates with peg holes. Each peg comes with a screw. Thread the screw through the peg hole from the back of the plate to mount the peg to the front of the plate. Another peg can be stacked on top of the mounted peg to support tall parts.
Overall | ||||||
|---|---|---|---|---|---|---|
| Lg. | Wd. | Stackable | Mount Type | Mounting Fasteners Included | Each | |
Aluminum | ||||||
| 1 1/8" | 3/8" | Yes | Threaded Insert | Yes | 0000000 | 00000 |
Telescoping Robot Workstations
For technical drawings and 3-D models, click on a part number.
Raise and lower your robot arm on these workstations, placing them at the right height for each task. Manually adjust the work surface at 1-in. intervals, or add a hydraulic lift kit (sold separately) for faster and more precise positioning. These workstations have swivel casters for easy transport from one job to the next—use the leveling pads to balance them on uneven floors. Workstations have ample room for storing your controller, teach pendant, and other robot accessories.
Overall | Capacity, lbs. | Robot Mount. Location | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| For Robot Arm Manufacturer (Series/Model No.) | Ht. | Wd. | Dp. | Ht. | Adjustment Increments | Top | Overall | Foot Type | Mount. Hole Thread Size (No. of Holes) | Mount. Fasteners Included | Each | |
White Painted Steel | ||||||||||||
| FANUC (CR 4, CR 7, CR 7L, CRX 10iA, CRX 10iA/L) Doosan (M0609, M0617, M1013, M1509) Omron (TM 5, TM 12, TM 14) Universal Robots (UR3, UR3e, UR5, UR5e, UR10, UR10e, UR16, UR16e) | 38" | 40 1/4" | 36" | 30"-38" | 1" | 1,400 | 1,800 | Caster | M6 (4) M8 (24) M10 (8) M12 (6) | Yes | 0000000 | 000000000 |
Hydraulic lift kits save you time spent manually lifting or lowering the work surface, which requires adjusting bolts on all four workstation legs. These kits also allow for more precise positioning than manual adjustment, which only lets you set the height at 1-in. intervals. When used with a lift kit, top capacity for workstations is 700 lbs.
Cylinder | Cylinder Mtg. Holes | Pump Mtg. Holes | Switch Mtg. Holes | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wd. | Material | No. of | Dia. | No. of | Dia. | No. of | Dia. | Mtg. Fasteners Included | Cord Lg., ft. | Specifications Met | Each | |
| 1 1/2" | Aluminum | 16 | 1/4" | 7 | 1/4" | 2 | 3/16" | No | 8 | CSA Certified, UL Listed | 00000000 | 000000000 |
Positioning Slides for Universal Robots
 Shown with Robot Arm (Not Included) |  |
 |
Extend the horizontal reach of your Universal Robots’ arm to operate your robot at multiple positions along an assembly line, or transport workpieces from a conveyor to your CNC. All of these slides have a carriage, slide controller, and software plug-in for connecting, operating, and programming your robot’s arm. The slides become an extension of the arm, so you can program how they glide back and forth on the rail as part of the robot's work cycle. A cable management system keeps your cables from tangling while the slides are in motion.
These slides are all Universal Robots+ (UR+) certified products, and have been validated by Universal Robots for compatibility and simple integration with UR robot arms. Pair them with Telescoping Bases for Universal Robots to also extend the vertical reach of your robot’s arm.
For technical drawings and 3-D models, click on a part number.
Overall | Carriage | Load Capacity, lbs. | Robot Mount. Location | Floor Mount. Location | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Lg., mm | Wd., mm | Ht., mm | Travel Lg., mm | Position Accuracy, mm | Lg., mm | Wd., mm | Dynamic | Static | Mount. Hole Dia. (No. of Holes) | Mount. Fasteners Included | Mount. Hole Dia. (No. of Holes) | Mount. Fasteners Included | Includes | Each | |
For UR3e, UR5e, UR10e, UR16e Series | |||||||||||||||
Aluminum | |||||||||||||||
| 1,245 | 150 | 190 | 700 | ±0.1 | 170 | 200 | 2,450 | 2,700 | 6mm, 8mm (4) | Yes | 6mm (10) | No | Slide Controller, Software Plug-In for Universal Robots | 0000000 | 0000000000 |
| 1,550 | 150 | 190 | 1,000 | ±0.1 | 170 | 200 | 2,450 | 2,700 | 6mm, 8mm (4) | Yes | 6mm (10) | No | Slide Controller, Software Plug-In for Universal Robots | 0000000 | 000000000 |
| 1,855 | 150 | 190 | 1,300 | ±0.1 | 170 | 200 | 2,450 | 2,700 | 6mm, 8mm (4) | Yes | 6mm (10) | No | Slide Controller, Software Plug-In for Universal Robots | 0000000 | 000000000 |
| 2,160 | 150 | 190 | 1,600 | ±0.1 | 170 | 200 | 2,450 | 2,700 | 6mm, 8mm (4) | Yes | 6mm (10) | No | Slide Controller, Software Plug-In for Universal Robots | 0000000 | 000000000 |
| 2,337 | 150 | 190 | 1,800 | ±0.1 | 170 | 200 | 2,450 | 2,700 | 6mm, 8mm (4) | Yes | 6mm (10) | No | Slide Controller, Software Plug-In for Universal Robots | 0000000 | 000000000 |
Telescoping Bases for Universal Robots
Take your Universal Robots arm to new heights—these bases move up and down to extend your robot’s vertical reach for high and low stacking jobs. Often used for loading boxes off a conveyor, they start at ground level and reach higher as they need to stack boxes on top of each other. The bases have a mounting plate, base controller, and software plug-in for connecting, operating, and programming your arm. They become an extension of the arm, so you can program how they move as part of the robot's work cycle. Use the threaded holes on the bases and mounting plate to attach accessories, such as a cable management system.
These bases are all Universal Robots+ (UR+) certified products, and have been validated by Universal Robots for compatibility and simple integration with UR robot arms. Pair these bases with Positioning Slides for Universal Robots to also extend the horizontal reach of your robot’s arm.
For technical drawings and 3-D models, click on a part number.
Overall | Load Capacity, lbs. | Robot Mount. Location | Floor Mount. Location | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Lg., mm | Wd., mm | Ht. When Retracted, mm | Ht. When Extended, mm | Travel Lg., mm | Position Accuracy, mm | Dynamic | Static | Mount. Hole Dia. (No. of Holes) | Mount. Fasteners Included | Mount. Hole Dia. (No. of Holes) | Mount. Fasteners Included | Includes | Each | |
For UR3, UR3e, UR5, UR5e, UR10, UR10e, UR16, UR16e Series | ||||||||||||||
Aluminum | ||||||||||||||
| 200 | 200 | 525 | 1,025 | 500 | ±1 | 325 | 325 | 6 mm (4), 8 mm (8) | Yes | 6.6 mm (8) | No | Base Controller, Software Plug-In for Universal Robots | 0000000 | 000000000 |
| 200 | 200 | 725 | 1,625 | 900 | ±1 | 325 | 325 | 6 mm (4), 8 mm (8) | Yes | 6.6 mm (8) | No | Base Controller, Software Plug-In for Universal Robots | 0000000 | 00000000 |
Robot Base Mounts
Secure your robot arm to benches, frames, or other surfaces with these base mounts. Made from aluminum, they’re machinable, so you can drill holes to match them to custom mounting patterns. They also resist corrosion in wet environments.

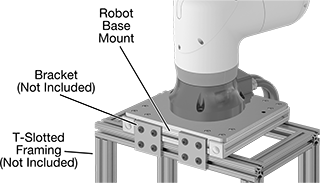

Attach mounts for T-slotted framing to frames and workstations made from T-slotted framing using brackets, nuts, and fasteners (not included). Bolt them to your robot arm through mounting holes on the face.
Quick-connect mounts have two halves joined by a quick-connect clamp, so you can easily disconnect your robot arm from a base. You’ll need both a robot-base mounting adapter, which connects to your robot, and a robot base mount, which is bolted to a flat surface. Release the clamp to move your robot arm from one base to another, or to switch arms at a workstation. Two locating pins ensure that the arm is accurately aligned with the base, so you don’t need to calibrate after each move. Adapters come with hardware to attach them to your robot arm, but mounts do not include fasteners to attach them to a surface.
For technical drawings and 3-D models, click on a part number.
Rail | Robot Mounting Location | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| For Robot Arm Manufacturer (Series/Model No.) | Wd. | Lg. | Thick. | Static Load Capacity, lbs. | T-Slotted Framing Mount Type | Profile | Ht. | Wd. | T-Slot Wd. | Mount Type | Mounting Hole Dia. (No. of Holes) | Mounting Fasteners Included | Each | |
Robot Base Mount | ||||||||||||||
Silver Anodized Aluminum | ||||||||||||||
| FANUC (CRX 10iA, 10iA/L) Universal Robots (UR5, UR5e, UR10, UR10e, UR16, UR16e) | 11" | 11 1/4" | 1 7/8" | 125 | Rail | Single | 1 1/2" | 1 1/2" | 0.32" | Bolt On | 0.354" (8) | No | 00000000 | 0000000 |
| Universal Robots (UR3, UR3e) | 11" | 11" | 1 7/8" | 125 | Rail | Single | 1 1/2" | 1 1/2" | 0.32" | Bolt On | 0.260" (4) | No | 00000000 | 000000 |
Mounting | ||||||||
|---|---|---|---|---|---|---|---|---|
| For Robot Arm Manufacturer (Series/Model No.) | Dia. | Thick. | Location | Type | Hole Dia. (No. of Holes) | Fasteners Included | Each | |
Robot-Base Mounting Adapter | ||||||||
Blue Powder-Coated Aluminum | ||||||||
| FANUC (CRX 10iA, 10iA/L) Universal Robots (UR3, UR3e, UR5, UR5e, UR10, UR10e, UR16, UR16e) | 8 3/8" | 1/2" | Robot | Bolt On | 1/4" (4), 5/16" (8) | Yes | 0000000 | 0000000 |
