Hinge Type Hinge Type |
|---|
 | Butt |
Material Material |
|---|
|
System of Measurement System of Measurement |
|---|
|
Overall Width Overall Width | Show |
|---|
|
Overall Width Overall Width | Hide |
|---|
Rod End Type Rod End Type |
|---|
 | Ball Joint |
 | Bolt |
 | Clevis |
Shank Thread Direction Shank Thread Direction |
|---|
|
Pin Type Pin Type |
|---|
 |  |
| Lift Off | Quick Disconnect |
Pin Material Pin Material |
|---|
|
Mounting Holes Mounting Holes |
|---|
 | Without Holes |
Finish Finish |
|---|
|
Ball Material Ball Material |
|---|
|
Lubrication Lubrication |
|---|
|
Capacity Capacity |
|---|
|
About Hinges
More
About Rod Ends
More
Narrow-Profile Lift-Off Hinges without Holes
Hinge with 360°
Range of Motion
Range of
Motion
Also known as bullet hinges, these hinges are the right size for tight spaces and narrow frames. The hinge pin is permanently attached to the frame leaf so you can quickly lift the door off the hinge without removing the pin. Hinges with a 360° range of motion have a small triangular surface to weld to the door frame. Hinges with a 270° range of motion have a body that welds directly to the door frame.
304 stainless steel hinges are more corrosion resistant than low-carbon steel. They also have good chemical resistance.
For technical drawings and 3-D models, click on a part number.
Pull-Release Quick-Disconnect Hinges without Holes
These hinges are spring loaded—pull the handle to retract the pin and disconnect a door; release the handle and the pin snaps back. The hinges can also be used as a latch on cabinet lids, electrical enclosure doors, and computer equipment housings. Pin travel is the distance the pin must be moved to disconnect the hinge. A pair includes one left-side and one right-side hinge.
300 series stainless steel hinges are more corrosion resistant than zinc-plated low-carbon steel. They also have good chemical resistance.
For technical drawings and 3-D models, click on a part number.
Door Leaf | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Ht. | Wd. | O'all Wd. | Leaf Thick. | Range of Motion | Pin Dia. | Pin Travel | Pin Material | Spring Material | Mounting Fasteners Included | Pair | |
Zinc-Plated Low-Carbon Steel—Dull | |||||||||||
| 2" | 7/8" | 7/8" | 0.050" | 270° | 3/16" | 3/8" | Steel | Stainless Steel | No | 0000000 | 00000 |
300 Series Stainless Steel—Dull | |||||||||||
| 2" | 7/8" | 7/8" | 0.050" | 270° | 3/16" | 3/8" | 300 Series Stainless Steel | Stainless Steel | No | 0000000 | 0000 |
Ball Joint Rod Ends
Made of steel, these rod ends generally handle higher loads than stainless steel, aluminum, and nylon rod ends.
Rod ends with an oversized shank have a shank that is one size larger than the ID to handle greater stress.
Zinc-plated steel rod ends provide moderate corrosion resistance.
For technical drawings and 3-D models, click on a part number.

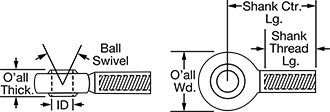

| Shank Thread Size | ID | Max. Ball Swivel | O'all Wd. | O'all Thick. | Shank Center Lg. | Shank Thread Lg. | Static Radial Load Cap., lbs. | Material | Choose a Shank Thread Direction | Each | |
Ball Joints | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 5/16"-24 | 5/16" | 22° | 7/8" | 7/16" | 1 7/8" | 1 1/4" | 4,500 | Zinc-Plated Carbon Steel | 00000000 | 00000 | |
Ball Joints with Oversized Shank | |||||||||||
| 5/16"-24 | 1/4" | 27° | 7/8" | 3/8" | 1 7/8" | 1 1/4" | 5,500 | Zinc-Plated Carbon Steel | 00000000 | 0000 | |
Internally Threaded Ball Joint Rod Ends
Made of steel, these rod ends generally handle higher loads than stainless steel, aluminum, and nylon rod ends.
Zinc-plated steel rod ends provide moderate corrosion resistance.
For technical drawings and 3-D models, click on a part number.

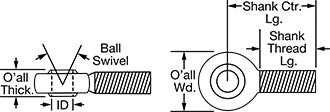

| Shank Thread Size | ID | Max. Ball Swivel | O'all Wd. | O'all Thick. | Shank Center Lg. | Shank Thread Lg. | Static Radial Load Cap., lbs. | Material | Choose a Shank Thread Direction | Each | |
Ball Joints | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 5/16"-24 | 5/16" | 22° | 7/8" | 7/16" | 1 3/8" | 11/16" | 5,100 | Zinc-Plated Carbon Steel | 00000000 | 00000 | |
Internally Threaded Lubrication-Free Ball Joint Rod Ends
A PTFE-embedded insert or PTFE liner reduces wear, handles shock loads, and eliminates the need for lubrication. Made of steel, these rod ends generally handle higher loads than stainless steel, aluminum, and nylon rod ends. All are zinc plated, so they resist corrosion for a short time before the finish is consumed and the steel is exposed.
For technical drawings and 3-D models, click on a part number.
| Shank Thread Size | ID | Max. Ball Swivel | O'all Wd. | O'all Thick. | Shank Center Lg. | Shank Thread Lg. | Static Radial Load Cap., lbs. | Material | Choose a Shank Thread Direction | Each | |
| 5/16"-24 | 5/16" | 14° | 7/8" | 7/16" | 1 3/8" | 11/16" | 2,750 | Zinc-Plated Carbon Steel | 0000000 | 00000 |
Lubrication-Free Ball Joint Rod Ends
A PTFE-embedded insert or PTFE liner reduces wear, handles shock loads, and eliminates the need for lubrication. Made of steel, these rod ends generally handle higher loads than stainless steel, aluminum, and nylon rod ends. All are zinc plated, so they resist corrosion for a short time before the finish is consumed and the steel is exposed.
For technical drawings and 3-D models, click on a part number.
| Shank Thread Size | ID | Max. Ball Swivel | O'all Wd. | O'all Thick. | Shank Center Lg. | Shank Thread Lg. | Static Radial Load Cap., lbs. | Material | Choose a Shank Thread Direction | Each | |
| 5/16"-24 | 5/16" | 14° | 7/8" | 7/16" | 1 7/8" | 1 1/4" | 2,750 | Zinc-Plated Carbon Steel | 0000000 | 00000 |
Internally Threaded Oil-Embedded Ball Joint Rod Ends
An oil-embedded bronze insert slowly releases lubricant throughout the life of the rod end. Made of zinc-plated steel, these rod ends generally handle higher loads than stainless steel, aluminum, and nylon rod ends and offer moderate corrosion resistance.
For technical drawings and 3-D models, click on a part number.
| Shank Thread Size | ID | Max. Ball Swivel | O'all Wd. | O'all Thick. | Shank Center Lg. | Shank Thread Lg. | Static Radial Load Cap., lbs. | Material | Choose a Shank Thread Direction | Each | |
| 5/16"-24 | 5/16" | 14° | 7/8" | 7/16" | 1 3/8" | 11/16" | 3,200 | Zinc-Plated Carbon Steel | 00000000 | 00000 |
Oil-Embedded Ball Joint Rod Ends
An oil-embedded bronze insert slowly releases lubricant throughout the life of the rod end. Made of zinc-plated steel, these rod ends generally handle higher loads than stainless steel, aluminum, and nylon rod ends and offer moderate corrosion resistance.
For technical drawings and 3-D models, click on a part number.
| Shank Thread Size | ID | Max. Ball Swivel | O'all Wd. | O'all Thick. | Shank Center Lg. | Shank Thread Lg. | Static Radial Load Cap., lbs. | Material | Choose a Shank Thread Direction | Each | |
| 5/16"-24 | 5/16" | 14° | 7/8" | 7/16" | 1 7/8" | 1 1/4" | 2,750 | Zinc-Plated Carbon Steel | 0000000 | 00000 |
Ultra-Precision Ball Joint Rod Ends
Made to extremely tight tolerances, these rod ends are for applications that require positioning accuracy, such as accelerators and other types of control linkages. Rod ends are steel and generally handle higher loads than stainless steel, aluminum, and nylon rod ends. They have a heat-treated steel ball for added strength and a brass insert for smooth operation.
Zinc- and cadmium-plated rod ends provide moderate corrosion resistance.
For technical drawings and 3-D models, click on a part number.
| Shank Thread Size | ID | Max. Ball Swivel | O'all Wd. | O'all Thick. | Shank Center Lg. | Shank Thread Lg. | Static Radial Load Cap., lbs. | Material | Shank Thread Direction | Each | |
| 5/16"-24 | 5/16" | 11° | 7/8" | 7/16" | 1 7/8" | 1 1/4" | 2,500 | Zinc-Plated Carbon Steel | Right Hand | 0000000 | 000000 |
Internally Threaded Ultra-Precision Ball Joint Rod Ends
Made to extremely tight tolerances, these rod ends are for applications that require positioning accuracy, such as accelerators and other types of control linkages. Rod ends are steel and generally handle higher loads than stainless steel, aluminum, and nylon rod ends. They have a heat-treated steel ball for added strength and a brass insert for smooth operation.
Zinc- and cadmium-plated rod ends provide moderate corrosion resistance.
For technical drawings and 3-D models, click on a part number.
| Shank Thread Size | ID | Max. Ball Swivel | O'all Wd. | O'all Thick. | Shank Center Lg. | Shank Thread Lg. | Static Radial Load Cap., lbs. | Material | Shank Thread Direction | Each | |
| 5/16"-24 | 5/16" | 11° | 7/8" | 7/16" | 1 3/8" | 3/4" | 3,350 | Zinc-Plated Carbon Steel | Right Hand | 0000000 | 000000 |
Mil. Spec. Ball Joint Rod Ends
Made of cadmium-plated steel, these rod ends generally handle higher loads than stainless steel, aluminum, and nylon rod ends. They provide moderate corrosion resistance. All have a PTFE liner that allows smooth ball rotation and eliminates the need for lubrication. Liner meets SAE-AS81820.
For technical drawings and 3-D models, click on a part number.
| Shank Thread Size | ID | Max. Ball Swivel | O'all Wd. | O'all Thick. | Shank Center Lg. | Shank Thread Lg. | Static Radial Load Cap., lbs. | Specifications Met | Material | Choose a Shank Thread Direction | Each | |
Ball Joints | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5/16"-24 | 5/16" | 14° | 7/8" | 7/16" | 1 7/8" | 1 3/16" | 7,150 | SAE AS81935 (Formerly MIL-B-81935), SAE AS81820 | Cadmium-Plated Alloy Steel | 0000000 | 0000000 | |
Corrosion-Resistant Ball Joint Rod Ends
Made of stainless steel, these rod ends provide excellent corrosion resistance. A PTFE liner allows smooth ball rotation and eliminates the need for lubrication.
For technical drawings and 3-D models, click on a part number.
| Shank Thread Size | ID | Max. Ball Swivel | O'all Wd. | O'all Thick. | Shank Center Lg. | Shank Thread Lg. | Static Radial Load Cap., lbs. | Material | Choose a Shank Thread Direction | Each | |
| 5/16"-24 | 5/16" | 22° | 7/8" | 7/16" | 1 7/8" | 1 1/4" | 2,050 | 303 Stainless Steel | 00000000 | 000000 |
Internally Threaded Corrosion-Resistant
Ball Joint Rod Ends
Made of stainless steel, these rod ends provide excellent corrosion resistance. A PTFE liner allows smooth ball rotation and eliminates the need for lubrication.
For technical drawings and 3-D models, click on a part number.
| Shank Thread Size | ID | Max. Ball Swivel | O'all Wd. | O'all Thick. | Shank Center Lg. | Shank Thread Lg. | Static Radial Load Cap., lbs. | Material | Choose a Shank Thread Direction | Each | |
| 5/16"-24 | 5/16" | 22° | 7/8" | 7/16" | 1 3/8" | 11/16" | 2,100 | 303 Stainless Steel | 00000000 | 000000 |
Lightweight Corrosion-Resistant Ball Joint Rod Ends
These anodized aluminum rod ends are lighter than stainless steel rod ends and have good corrosion resistance. A PTFE liner allows smooth ball rotation and eliminates the need for lubrication.
For technical drawings and 3-D models, click on a part number.
| Shank Thread Size | ID | Max. Ball Swivel | O'all Wd. | O'all Thick. | Shank Center Lg. | Shank Thread Lg. | Static Radial Load Cap., lbs. | Material | Choose a Shank Thread Direction | Each | |
| 5/16"-24 | 5/16" | 14° | 7/8" | 7/16" | 1 7/8" | 1 1/4" | 2,850 | Anodized 7075 Aluminum | 00000000 | 000000 |
Internally Threaded Lightweight
Corrosion-Resistant Ball Joint Rod Ends
These anodized aluminum rod ends are lighter than stainless steel rod ends and have good corrosion resistance. A PTFE liner allows smooth ball rotation and eliminates the need for lubrication.
For technical drawings and 3-D models, click on a part number.
| Shank Thread Size | ID | Max. Ball Swivel | O'all Wd. | O'all Thick. | Shank Center Lg. | Shank Thread Lg. | Static Radial Load Cap., lbs. | Material | Choose a Shank Thread Direction | Each | |
| 5/16"-24 | 5/16" | 14° | 7/8" | 7/16" | 1 3/8" | 11/16" | 2,850 | Anodized 7075 Aluminum | 00000000 | 000000 |
Internally Threaded Chemical-Resistant
Ball Joint Rod Ends
Made of impact-resistant nylon, these rod ends withstand corrosion as well as fuels, lyes, and weak acids. They are also 80% lighter than steel rod ends. A self-lubricating nylon ball provides maximum abrasion resistance and eliminates the need for lubrication.
For technical drawings and 3-D models, click on a part number.
| Shank Thread Size | ID | Max. Ball Swivel | O'all Wd. | O'all Thick. | Shank Center Lg. | Shank Thread Lg. | Static Radial Load Cap., lbs. | Temp. Range, °F | Material | Specifications Met | Choose a Shank Thread Direction | Each | |
| 5/16"-24 | 5/16" | 25° | 7/8" | 7/16" | 1 3/8" | 11/16" | 110 | -20° to 175° | Nylon Plastic | ISO 12240-4 | 0000000 | 00000 |
Chemical-Resistant Ball Joint Rod Ends
Made of impact-resistant nylon, these rod ends withstand corrosion as well as fuels, lyes, and weak acids. They are also 80% lighter than steel rod ends. A self-lubricating nylon ball provides maximum abrasion resistance and eliminates the need for lubrication.
For technical drawings and 3-D models, click on a part number.
| Shank Thread Size | ID | Max. Ball Swivel | O'all Wd. | O'all Thick. | Shank Center Lg. | Shank Thread Lg. | Static Radial Load Cap., lbs. | Temp. Range, °F | Material | Specifications Met | Choose a Shank Thread Direction | Each | |
| 5/16"-24 | 5/16" | 25° | 7/8" | 7/16" | 1 7/8" | 1 1/4" | 30 | -20° to 175° | Nylon Plastic | ISO 12240-4 | 0000000 | 00000 |
High-Load Ball Joint Rod Ends
These steel rod ends handle loads that are at least 25% higher than other comparably sized rod ends. PTFE allows smooth rotation and eliminates the need for lubrication.
Rod ends with an oversized shank have a shank that is one size larger than the ID to handle greater stress.
Rod ends with Nylon/PTFE insert have a durable, self-sealing insert that reduces wear. Rod ends with zinc-plated steel insert provide moderate corrosion resistance.
For technical drawings and 3-D models, click on a part number.
| Shank Thread Size | ID | Max. Ball Swivel | O'all Wd. | O'all Thick. | Shank Center Lg. | Shank Thread Lg. | Static Radial Load Cap., lbs. | Material | Choose a Shank Thread Direction | Each | |
Ball Joints | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
Nylon/PTFE Plastic Blend Insert | |||||||||||
| 5/16"-24 | 5/16" | 14° | 7/8" | 7/16" | 1 7/8" | 1 1/4" | 7,600 | Chrome-Moly Steel | 000000 | 000000 | |
Zinc-Plated Alloy Steel Insert and PTFE Plastic Liner | |||||||||||
| 5/16"-24 | 5/16" | 14° | 7/8" | 7/16" | 1 7/8" | 1 1/4" | 7,600 | Zinc-Plated Alloy Steel | 00000000 | 00000 | |
Ball Joints with Oversized Shank | |||||||||||
Nylon/PTFE Plastic Blend Insert | |||||||||||
| 5/16"-24 | 1/4" | 13° | 7/8" | 3/8" | 1 7/8" | 1 1/4" | 8,450 | Chrome-Moly Steel | 000000 | 00000 | |
Internally Threaded High-Load Ball Joint Rod Ends
These steel rod ends handle loads that are at least 25% higher than other comparably sized rod ends. PTFE allows smooth rotation and eliminates the need for lubrication.
Rod ends with Nylon/PTFE insert have a durable, self-sealing insert that reduces wear. Rod ends with zinc-plated steel insert provide moderate corrosion resistance.
For technical drawings and 3-D models, click on a part number.
| Shank Thread Size | ID | Max. Ball Swivel | O'all Wd. | O'all Thick. | Shank Center Lg. | Shank Thread Lg. | Static Radial Load Cap., lbs. | Material | Choose a Shank Thread Direction | Each | |
Ball Joints | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
Nylon/PTFE Plastic Blend Insert | |||||||||||
| 5/16"-24 | 5/16" | 14° | 7/8" | 7/16" | 1 3/8" | 3/4" | 7,600 | Chrome-Moly Steel | 0000000 | 000000 | |
Zinc-Plated Alloy Steel Insert and PTFE Plastic Liner | |||||||||||
| 5/16"-24 | 5/16" | 14° | 7/8" | 7/16" | 1 3/8" | 3/4" | 7,600 | Zinc-Plated Alloy Steel | 00000000 | 00000 | |
Rod End Bolt Blanks
Cut, tap, bore, or weld these rod end bolts to your exact requirements. They have an unfinished shank.
For technical drawings and 3-D models, click on a part number.
| Shank Dia. | O'all Wd. | Shank Center Lg. | O'all Thick. | Tensile Strength, psi | Material | Features | Each | |
| 7/16" | 7/8" | 4 15/16" | 1/2" | 75,000 | Carbon Steel | Centered Starter Dimple | 00000000 | 00000 |
Corrosion-Resistant Clevis Rod Ends
These clevis rod ends offer more corrosion resistance than standard steel clevis rod ends. Also called yoke-end linkages, they support pivoting movement along one axis when threaded onto shafts, rods, valve pistons, and other assemblies.
Zinc-plated steel rod ends offer moderate corrosion resistance. Stainless steel rod ends offer excellent corrosion resistance.
For technical drawings and 3-D models, click on a part number.
| Shank Thread Size | ID | Jaw Opening Wd. | O'all Wd. | Shank Center Lg. | Shank Thread Lg. | Jaw Center Lg. | Tensile Strength, psi | Includes | Shank Thread Direction | Each | |
Zinc-Plated Carbon Steel | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 3/8"-16 | 3/8" | 7/16" | 7/8" | 2 1/2" | 7/8" | 1 5/8" | 58,000 | Clevis Pin, Cotter Pin | Right Hand | 0000000 | 000000 |
| 3/8"-24 | 3/8" | 7/16" | 7/8" | 2 1/2" | 7/8" | 1 5/8" | 58,000 | Clevis Pin, Cotter Pin | Right Hand | 0000000 | 00000 |
316 Stainless Steel | |||||||||||
| 3/8"-24 | 3/8" | 7/16" | 7/8" | 2 1/2" | 7/8" | 1 5/8" | 80,000 | Clevis Pin, Cotter Pin | Right Hand | 0000000 | 00000 |
Clevis Rod Ends
These steel rod ends are machined to SAE standards. Also called yoke-end linkages, they support pivoting movement along one axis when threaded onto shafts, rods, valve pistons, and other assemblies.
For technical drawings and 3-D models, click on a part number.
| Shank Thread Size | ID | Jaw Opening Wd. | O'all Wd. | Shank Center Lg. | Shank Thread Lg. | Jaw Center Lg. | Tensile Strength, psi | Includes | Shank Thread Direction | Each | |
Carbon Steel | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 3/8"-16 | 3/8" | 7/16" | 7/8" | 2 1/2" | 7/8" | 1 5/8" | 58,000 | Clevis Pin, Cotter Pin | Right Hand | 0000000 | 00000 |
| 3/8"-24 | 3/8" | 7/16" | 7/8" | 2 1/2" | 7/8" | 1 5/8" | 58,000 | Clevis Pin, Cotter Pin | Right Hand | 0000000 | 0000 |
Clevis Rod End Blanks
Thread or weld the unfinished shank of these rod ends to meet your specific linkage needs. Also called yoke-end linkages, they support pivoting movement along one axis when threaded onto shafts, rods, valve pistons, and other assemblies.
For technical drawings and 3-D models, click on a part number.
