Quick-Disconnect Tube Couplings for Dairy
- Temperature Range: -40° to 300° F
- Tubing: Use with soft (Durometer 50A-65A) silicone rubber
Also known as single-use fittings, these plugs and sockets are disposable so you don't have to sterilize your line. They are packaged in a clean room and double bagged to prevent contamination. Plugs and sockets join with a latch so you can frequently connect and disconnect your line. To connect, insert the plug into the socket; to disconnect, press the latch on the socket and remove the plug. The flanged end connects to any other sanitary stainless steel quick-clamp fitting (sold separately). Plugs and sockets are open-flow style, so there is no shut-off valve to stop the flow when the coupling is separated. They have a universal connection, so the plugs will connect to any of the sockets regardless of the tube size.
Note: For a complete coupling, order a plug and a socket.
Warning: Flow should be stopped before you disconnect your line.
For technical drawings and 3-D models, click on a part number.
Quick-Clamp Fittings for Dairy
- Temperature Range: 0° to 140° F
- Tubing: Use with soft (Durometer 50A-65A) silicone rubber
- Specifications Met: Made of FDA Listed Materials
Also known as single-use fittings, these are disposable so you don't have to sterilize your line. Join the flanged end of the fittings to any other sanitary stainless steel quick-clamp fitting (sold separately) with a gasket and a clamp for a fast and easy way to access your line. Fittings have a smooth interior to prevent product buildup and contamination. They are PVDF (also known as Kynar), which has excellent strength.
Note: For a complete connection, you’ll need two quick-clamp fittings, a clamp, and a gasket (all sold separately).
For technical drawings and 3-D models, click on a part number.

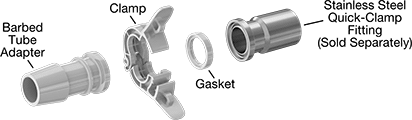

Barbed fittings insert into tubing and secure with a clamp.
| For Tube OD | Flange OD | For Tube ID | Material | Color | Max. Pressure | Each | |
| 3/4" | 0.984" | 1/4" | PVDF Plastic | White | 80 psi @ 72° F | 0000000 | 000000 |
| 3/4" | 0.984" | 3/8" | PVDF Plastic | White | 80 psi @ 72° F | 0000000 | 00000 |
| 3/4" | 0.984" | 1/2" | PVDF Plastic | White | 80 psi @ 72° F | 0000000 | 00000 |
| 3/4" | 0.984" | 3/4" | PVDF Plastic | White | 80 psi @ 72° F | 0000000 | 00000 |
| 1 1/2" | 1.984" | 1/4" | PVDF Plastic | White | 80 psi @ 72° F | 0000000 | 00000 |
| 1 1/2" | 1.984" | 3/8" | PVDF Plastic | White | 80 psi @ 72° F | 0000000 | 00000 |
| 1 1/2" | 1.984" | 1/2" | PVDF Plastic | White | 80 psi @ 72° F | 0000000 | 00000 |
| 1 1/2" | 1.984" | 3/4" | PVDF Plastic | White | 80 psi @ 72° F | 0000000 | 00000 |
| 1 1/2" | 1.984" | 1" | PVDF Plastic | White | 80 psi @ 72° F | 0000000 | 00000 |
