Jack Screws
Screw
Screw with Hex Nut,
Lock Washer,
and Flat Washers
Lock Washer,
and Flat Washers
Secure computer cables and panels. Zinc yellow-chromate plated and zinc-plated finish provide some corrosion resistance.
For technical drawings and 3-D models, click on a part number.
Thread (A) | Thread (B) | ||||||
|---|---|---|---|---|---|---|---|
| Size | Lg. | Size | Min. Lg. | Lg. | Pkg. Qty. | Pkg. | |
Screws | |||||||
Zinc Yellow-Chromate Plated 12L14 Steel | |||||||
3/16" Hex Size | |||||||
| 4-40 | 3/16" | 4-40 | 0.1" | 3/16" | 25 | 000000000 | 000000 |
| 4-40 | 1/4" | 4-40 | 0.1" | 3/16" | 25 | 000000000 | 00000 |
| 4-40 | 5/16" | 4-40 | 0.1" | 3/16" | 25 | 000000000 | 00000 |
| 4-40 | 3/8" | 4-40 | 0.1" | 3/16" | 25 | 000000000 | 00000 |
| 4-40 | 7/16" | 4-40 | 0.1" | 3/16" | 25 | 000000000 | 00000 |
| 4-40 | 1/2" | 4-40 | 0.1" | 3/16" | 10 | 000000000 | 0000 |
| 4-40 | 9/16" | 4-40 | 0.1" | 3/16" | 10 | 000000000 | 0000 |
| 4-40 | 5/8" | 4-40 | 0.1" | 3/16" | 10 | 000000000 | 0000 |
Zinc-Plated 12L14 Steel | |||||||
3/16" Hex Size | |||||||
| 4-40 | 1/8" | 4-40 | 0.1" | 3/16" | 25 | 000000000 | 00000 |
| 4-40 | 3/4" | 4-40 | 0.1" | 3/16" | 10 | 000000000 | 0000 |
| 4-40 | 7/8" | 4-40 | 0.1" | 3/16" | 10 | 000000000 | 00000 |
| 4-40 | 1" | 4-40 | 0.1" | 3/16" | 10 | 000000000 | 00000 |
Screws with Hex Nut, Lock Washer, and Two Flat Washers | |||||||
Zinc Yellow-Chromate Plated 12L14 Steel | |||||||
3/16" Hex Size | |||||||
| 4-40 | 3/16" | 4-40 | 0.1" | 3/16" | 25 | 000000000 | 00000 |
| 4-40 | 1/4" | 4-40 | 0.1" | 3/16" | 25 | 000000000 | 00000 |
| 4-40 | 5/16" | 4-40 | 0.1" | 3/16" | 25 | 000000000 | 00000 |
| 4-40 | 3/8" | 4-40 | 0.1" | 3/16" | 25 | 000000000 | 00000 |
| 4-40 | 7/16" | 4-40 | 0.1" | 3/16" | 25 | 000000000 | 00000 |
| 4-40 | 1/2" | 4-40 | 0.1" | 3/16" | 10 | 000000000 | 0000 |
| 4-40 | 9/16" | 4-40 | 0.1" | 3/16" | 10 | 000000000 | 0000 |
| 4-40 | 5/8" | 4-40 | 0.1" | 3/16" | 10 | 000000000 | 0000 |
Zinc-Plated 12L14 Steel | |||||||
3/16" Hex Size | |||||||
| 4-40 | 1/8" | 4-40 | 0.1" | 3/16" | 25 | 000000000 | 00000 |
| 4-40 | 3/4" | 4-40 | 0.1" | 3/16" | 10 | 000000000 | 00000 |
| 4-40 | 7/8" | 4-40 | 0.1" | 3/16" | 10 | 000000000 | 00000 |
| 4-40 | 1" | 4-40 | 0.1" | 3/16" | 10 | 000000000 | 00000 |

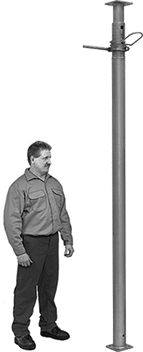

Vertical Braces
Support beams and joists.
To adjust the height of locking-pin braces, extend the brace to the approximate height needed and insert the locking pin through the hole to secure. Then turn the threaded handle counterclockwise to raise it up to 6" for more precise height adjustments.
To adjust the height of locking-ring braces, slide the safety lock into the notch to secure at the approximate height needed. Then turn the 10" long handle for final height adjustments.
For technical drawings and 3-D models, click on a part number.
Ht. | Capacity | Base | Top Plate | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Min. | Max. | @ Min. Ht. | @ Max. Ht. | Material | Wd. | Dp. | Wd. | Dp. | Mounting Hole Dia. (No. of) | Mounting Fasteners Included | Center-to-Center Adjustments | Handle Lg. | Each | |
Locking Pin | ||||||||||||||
| 78" | 138" | 6,400 lbs. @ 78" | 3,800 lbs. @ 138" | Steel | 4 3/4" | 4 3/4" | 4 3/4" | 4 3/4" | 9/16" (8) | No | 6" | __ | 0000000 | 0000000 |
| 120" | 216" | 9,300 lbs. @ 120" | 2,700 lbs. @ 216" | Steel | 4 3/4" | 4 3/4" | 4 3/4" | 4 3/4" | 9/16" (8) | No | 6" | __ | 0000000 | 000000 |
Locking Ring | ||||||||||||||
| 16" | 24" | 18,000 lbs. @ 16" | 18,000 lbs. @ 24" | Steel | 4" | 4" | 4" | 4" | 3/8" (4), 5/8" (4) | No | 4" | 10" | 000000 | 00000 |
| 25" | 41" | 18,000 lbs. @ 25" | 17,000 lbs. @ 41" | Steel | 4" | 4" | 4" | 4" | 3/8" (4), 5/8" (4) | No | 4" | 10" | 000000 | 00000 |
| 40" | 64" | 18,000 lbs. @ 40" | 17,000 lbs. @ 64" | Steel | 4" | 4" | 4" | 4" | 3/8" (4), 5/8" (4) | No | 4" | 10" | 000000 | 000000 |
| 68" | 100" | 17,000 lbs. @ 68" | 14,000 lbs. @ 100" | Steel | 4" | 4" | 4" | 4" | 3/8" (4), 5/8" (4) | No | 4" | 10" | 000000 | 000000 |
