Made-to-Order Drill Bushings

	Installation Type Installation Type


Permanent	Removable

	Drill Bushing Type Drill Bushing Type

	Drill Bushing Style Drill Bushing Style

Smooth

Serrated

	DFARS (Defense Acquisition Regulations Supplement) DFARS (Defense Acquisition Regulations Supplement)

DFARS Specialty Metals
COTS-Exempt

	Minimum ID Minimum ID

0.0135"

0.0135" to 2.2656" in 0.0001"
increments

0.3450 mm

	OD Increment OD Increment

0.0001"

0.0025 mm

	Minimum Length Minimum Length

0.125"

1/8" to 3" in 1/16" increments

4 mm

	RoHS (Restriction of Hazardous Substances) RoHS (Restriction of Hazardous Substances)

RoHS Compliant

	ID Increment ID Increment

0.0001"

0.0025 mm

	Length Increment Length Increment

1/16"

1 mm

	REACH (Registration, Evaluation, Authorization and Restriction of Chemicals) REACH (Registration, Evaluation, Authorization and Restriction of Chemicals)

REACH Compliant

	Minimum OD Minimum OD

0.1562"

0.1562" to 2.7500" in 0.0001"
increments

4.0000 mm

	Maximum Length Maximum Length

76 mm

	Maximum ID Maximum ID

2.2656"

57.0000 mm

	Maximum OD Maximum OD

2.7500"

69.0000 mm

View catalog pages (7)

Forward

How can we improve?

4 Products

Made-to-Order Press-Fit Drill Bushings

Mount flush with jig plates for precise drilling. These bushings can also be used as spacers, shims, and machinery bushings.

To Order: Specify ID, OD, and length from the ranges listed. The difference between the ID and OD must be at least 0.07".

For technical drawings and 3-D models, click on a part number.

								Each
Choose an ID	Choose an OD	Choose a Length	Length Tolerance	Drill Bushing Type	Material	Hardness		1-5	6-11	12-Up
0.0135" to 2.2656" in 0.0001" increments	0.1562" to 2.7500" in 0.0001" increments	0.125" to 3" in 0.0625" increments	-0.015" to 0.015"	P	Steel	Rockwell C61	00000000	000000	000000	000000

Made-to-Order Metric Press-Fit Drill Bushings

Mount flush with jig plates for precise drilling. These bushings can also be used as spacers, shims, and machinery bushings.

To Order: Specify ID, OD, and length from the ranges listed. The difference between the ID and OD must be at least 1.778 mm.

Choose an ID	Choose an OD	Choose a Length	Length Tolerance, mm	Drill Bushing Type	Material	Hardness		Each
0.3450 to 57.0000 mm in 0.0025 mm increments	4.0000 to 69.0000 mm in 0.0025 mm increments	4 to 76 mm in 1 mm increments	-0.4 to 0.4	PM	Steel	Rockwell C61	00000000	000000

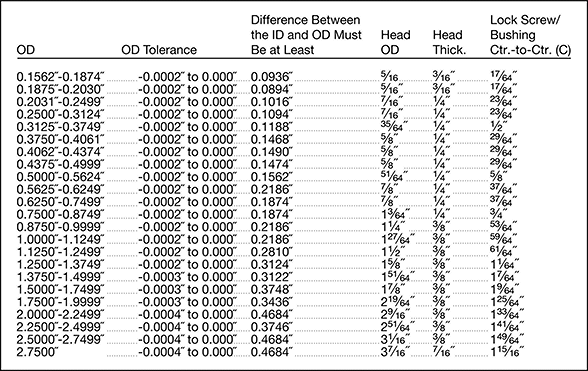

Made-to-Order Removable Drill Bushings

Reusable and easy to change out, these bushings are held in place by the included slotted head lock screw. They can also be used as spacers, shims, and machinery bushings. Also known as slip-fixed or renewable bushings.

To Order: Specify ID, OD, and length from the ranges listed.

								Each
Choose an ID	Choose an OD	Choose a Length	Length Tolerance	Drill Bushing Type	Material	Hardness		1-5	6-11	12-Up
0.0135" to 2.2656" in 0.0001" increments	0.1562" to 2.7500" in 0.0001" increments	0.125" to 3" in 0.0625" increments	-0.015" to 0.015"	SF	Steel	Rockwell C61	00000000	000000	000000	000000

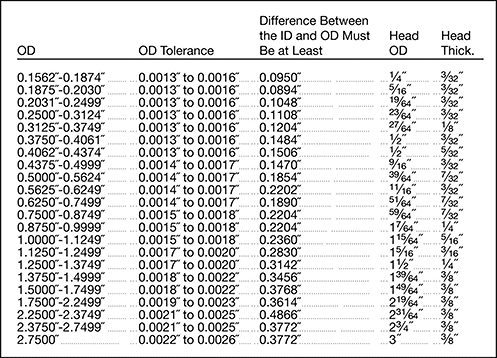

Made-to-Order Press-Fit Drill Bushings with Head

The head prevents these bushings from being pushed through the jig when drilling pressure is extreme. The head sits above the jig plate or can be mounted flush by installing in a counterbored hole. Drill bushings can also be used as spacers, shims, and machinery bushings.

To Order: Specify ID, OD, and length from the ranges listed.

For technical drawings and 3-D models, click on a part number.

								Each
Choose an ID	Choose an OD	Choose a Length	Length Tolerance	Drill Bushing Type	Material	Hardness		1-5	6-11	12-Up
0.0135" to 2.2656" in 0.0001" increments	0.1562" to 2.7500" in 0.0001" increments	0.125" to 3" in 0.0625" increments	-0.015" to 0.015"	H	Steel	Rockwell C61	00000000	000000	000000	000000
