48 Products

Starrett High-Accuracy Combination Squares

Replace your try square, miter square, depth gauge, height gauge, center-point finder, and level. The blade on these squares meets Fed. Spec. GGG-R-791H, which establishes uniform standards for accuracy, graduations, and size. Blades are labeled with numeric increments that are less than 1" for quick reading. All have wear-resistant etched markings.

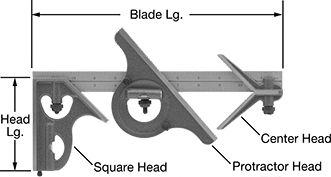

Blade with Square Head with Built-in Level, Center Head, Protractor Head, and Scriber

Inch

				Blade				Graduation			Cast Iron Heads
Blade Lg.	Front Grad. Marks (Increments)	Back Grad. Marks (Increments)	Accuracy	Wd.	Thick.	Material	Color	Color	Mark Style	Head Lg.		Each
Inch
12"	32nds (4/32"), 64ths (8/64")	8ths (1"), 16ths (1")	-0.0035" to +0.005"	1"	3/32"	Steel	Silver	Black	Etched	4 1/2"	0000000	0000000
18"	32nds (4/32"), 64ths (8/64")	8ths (1"), 16ths (1")	-0.0035" to +0.006"	1"	3/32"	Steel	Silver	Black	Etched	4 1/2"	0000000	000000
24"	32nds (4/32"), 64ths (8/64")	8ths (1"), 16ths (1")	-0.0035" to +0.007"	1"	3/32"	Steel	Silver	Black	Etched	4 1/2"	0000000	000000

Replacement Lockbolt for Square, Center, and Protractor Heads

0000000

Each

00000

Blade with Square Head with Built-in Level, Center Head, Reversible Protractor Head, and Scriber


	Inch
	Inch/Metric

				Blade				Graduation
Blade Lg.	Front Grad. Marks (Increments)	Back Grad. Marks (Increments)	Accuracy	Wd.	Thick.	Material	Color	Color	Mark Style	Head Lg.		Each
Cast Iron Heads
Inch
12"	32nds (4/32"), 64ths (8/64")	8ths (1"), 16ths (1")	-0.0035" to +0.005"	1"	3/32"	Steel	Silver	Black	Etched	4 1/2"	0000000	0000000
12"	32nds (4/32"), 64ths (8/64")	50ths (1/10"), 100ths (1/10")	-0.0035" to +0.005"	1"	3/32"	Steel	Silver	Black	Etched	4 1/2"	0000000	000000
18"	32nds (4/32"), 64ths (8/64")	8ths (1"), 16ths (1")	-0.0035" to +0.006"	1"	3/32"	Steel	Silver	Black	Etched	4 1/2"	0000000	000000
24"	32nds (4/32"), 64ths (8/64")	8ths (1"), 16ths (1")	-0.0035" to +0.007"	1"	3/32"	Steel	Silver	Black	Etched	4 1/2"	0000000	000000
Inch/Metric
11 3/4"/300mm	1/2 mm (10 mm), 32nds (4/32")	Millimeters (10 mm), 64ths (8/64")	-0.0035" to +0.005"/-0.09 mm to +0.15 mm	1"	3/32"	Steel	Silver	Black	Etched	4 1/2"	0000000	000000
23 1/2"/600mm	1/2 mm (10 mm), 32nds (4/32")	Millimeters (10 mm), 64ths (8/64")	-0.0035" to +0.007"/-0.11 mm to +0.25 mm	1"	3/32"	Steel	Silver	Black	Etched	4 1/2"	0000000	000000
Hardened Steel Heads
Inch
12"	32nds (4/32"), 64ths (8/64")	8ths (1"), 16ths (1")	-0.0035" to +0.005"	1"	3/32"	Satin-Chrome Steel	Silver	Black	Etched	3 5/8"	0000000	000000
12"	32nds (4/32"), 64ths (8/64")	50ths (1/10"), 100ths (1/10")	-0.0035" to +0.005"	1"	3/32"	Satin-Chrome Steel	Silver	Black	Etched	3 5/8"	0000000	000000
18"	32nds (4/32"), 64ths (8/64")	8ths (1"), 16ths (1")	-0.0035" to +0.006"	1"	3/32"	Satin-Chrome Steel	Silver	Black	Etched	3 5/8"	0000000	000000
18"	32nds (4/32"), 64ths (8/64")	50ths (1/10"), 100ths (1/10")	-0.0035" to +0.006"	1"	3/32"	Satin-Chrome Steel	Silver	Black	Etched	3 5/8"	0000000	000000
24"	32nds (4/32"), 64ths (8/64")	8ths (1"), 16ths (1")	-0.0035" to +0.007"	1"	3/32"	Satin-Chrome Steel	Silver	Black	Etched	3 5/8"	0000000	000000
24"	32nds (4/32"), 64ths (8/64")	50ths (1/10"), 100ths (1/10")	-0.0035" to +0.007"	1"	3/32"	Satin-Chrome Steel	Silver	Black	Etched	3 5/8"	0000000	000000
Inch/Metric
11 3/4"/300mm	1/2 mm (10 mm), 32nds (4/32")	Millimeters (10 mm), 64ths (8/64")	-0.0035" to +0.005"/-0.09 mm to +0.15 mm	1"	3/32"	Satin-Chrome Steel	Silver	Black	Etched	3 5/8"	0000000	000000
23 1/2"/600mm	1/2 mm (10 mm), 32nds (4/32")	Millimeters (10 mm), 64ths (8/64")	-0.0035" to +0.007"/-0.11 mm to +0.25 mm	1"	3/32"	Satin-Chrome Steel	Silver	Black	Etched	3 5/8"	0000000	000000

Replacement Lockbolt for Square, Center, and Protractor Heads

0000000

Each

00000

Starrett High-Accuracy Combination Square Heads

Attach to Starrett High-Accuracy Combination Square Blades with the included lockbolts.

Square head checks 90° angles. Center head identifies the center on pipes, rods, and shafts. Protractor head measures angles.

Hardened-steel heads are more durable and last longer than cast iron heads.

Square Head

Center Head

Protractor Head

		Protractor
Component	For Blade Lgs.	Angle Measuring Range	Graduation Marks (Numeric Increments)		Each
Cast Iron
Square Head	4"	__	__	0000000	000000
Square Head with Built-in Level	6"	__	__	0000000	00000
Square Head with Built-in Level	12"-48"	__	__	0000000	00000
Center Head	4"	__	__	0000000	00000
Center Head	6"	__	__	0000000	00000
Center Head	12"-48"	__	__	0000000	00000
Nonreversible Protractor Head with Built-in Level	12"-48"	0°-180°	1° (10°)	0000000	000000
Reversible Protractor Head with Built-in Level	12"-48"	0°-180°	1° (10°)	0000000	000000
Hardened Steel
Square Head	4"	__	__	0000000	00000
Square Head with Built-in Level	6"	__	__	0000000	00000
Square Head with Built-in Level	12"-48"	__	__	0000000	000000
Center Head	4"	__	__	0000000	00000
Center Head	6"	__	__	0000000	000000
Center Head	12"-48"	__	__	0000000	00000

Replacement Lockbolts

For Head Style	For Blade Lgs.		Each
Center	6"	0000000	000000
Square, Center	4"	0000000	00000
Square, Center	6"	0000000	00000
Square, Center, Protractor	12"-36"/300 mm-600 mm	0000000	0000

High-Accuracy Combination Square Heads

Square Head

Center Head

Protractor Head

Attach to High-Accuracy Combination Square Blades with the included lockbolts.

Square head checks 90° angles. Center head identifies the center on pipes, rods, and shafts. Protractor head measures angles.

Hardened cast iron heads are more durable and last longer than cast iron heads.

		Protractor
Component	For Blade Lgs.	Angle Measuring Range	Graduation Marks (Numeric Increments)		Each
Cast Iron
Square Head with Built-in Level	12"-24"	__	__	00000000	000000
Center Head	12"-24"	__	__	00000000	00000
Reversible Protractor Head	12"-24"	0°-180°	1° (10°)	00000000	00000
Hardened Cast Iron
Square Head with Built-in Level	12"-24"	__	__	00000000	00000
Center Head	12"-24"	__	__	00000000	00000

Replacement Lockbolt

00000000

Each

00000

High-Accuracy Combination Squares

Use these squares in place of your try square, miter square, depth gauge, height gauge, center-point finder, and level. Blades are labeled with numeric increments that are less than 1" for quick reading. All have a corrosion-resistant satin-chrome finish that reduces glare and wear-resistant etched markings.

Square head checks 90° angles. Center head identifies the center on pipes, rods, and shafts. Protractor head measures angles.

Hardened cast iron heads are more durable and last longer than cast iron heads.

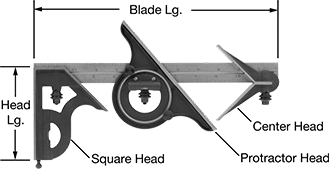

Blade with Square Head with Built-in Level, Center Head, Reversible Protractor Head, and Scriber

Inch

				Blade				Graduation
Blade Lg.	Front Grad. Marks (Increments)	Back Grad. Marks (Increments)	Accuracy	Wd.	Thick.	Material	Color	Color	Mark Style	Head Lg.		Each
Cast Iron Heads
Inch
12"	32nds (4/32"), 64ths (8/64")	8ths (1"), 16ths (1")	-0.0025" to +0.0025"	1"	3/32"	Satin-Chrome Steel	Silver	Black	Etched	4 1/2"	00000000	0000000
Hardened Cast Iron Heads
Inch
12"	32nds (4/32"), 64ths (8/64")	8ths (1"), 16ths (1")	-0.0025" to +0.0025"	1"	3/32"	Satin-Chrome Steel	Silver	Black	Etched	4 1/2"	00000000	000000

Replacement Lockbolt

00000000

Each

00000

Scratch-Resistant High-Accuracy Combination Squares

A titanium coating protects the blade against scratches and wear. Use these squares to replace your try square, miter square, depth gauge, height gauge, center-point finder, and level. Blades are labeled with numeric increments that are less than 1" for quick reading. All have wear-resistant etched markings.

Square head checks 90° angles. Center head identifies the center on pipes, rods, and shafts. Protractor head measures angles.

Blade with Square Head with Built-in Level, Center Head, Protractor Head, and Scriber

Inch

				Blade				Graduation			Cast Iron Heads
Blade Lg.	Front Graduation Marks (Numeric Increments)	Back Graduation Marks (Numeric Increments)	Accuracy	Wd.	Thick.	Material	Color	Color	Mark Style	Head Lg.		Each
Inch
12"	32nds (4/32"), 64ths (8/64")	8ths (1"), 16ths (1")	-0.002" to +0.002"	1"	3/32"	Titanium-Coated Steel	Gold	Black	Etched	4 1/2"	00000000	0000000

Combination Squares

Replace your try square, miter square, depth gauge, marking gauge, 90° level, ruler, and scriber with one tool. Blades labeled with numeric increments that are less than 1" are quick-reading. All have wear-resistant etched markings.

Square head checks 90° angles.

Center head identifies the center on pipes, rods, and shafts.

Protractor head measures angles.

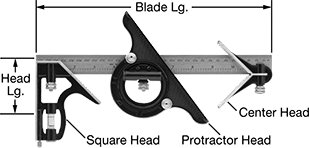

Blade with Square Head with Built-in Level, Center Head, Reversible Protractor Head with Built-in Level, and Scriber

Inch/Metric

			Blade				Graduation			Aluminum Heads
Blade Lg.	Front Graduation Marks (Numeric Increments)	Back Graduation Marks (Numeric Increments)	Wd.	Thick.	Material	Color	Color	Mark Style	Head Lg.		Each
Inch/Metric
12"/300mm	Millimeters (10 mm), 32nds (4/32")	Millimeters (10 mm), 16ths (1")	1"	3/32"	Steel	Silver	Black	Etched	4 1/4"	000000	000000

Stationary Disc Sanders

On/Off Switch Control

Use with adhesive-back discs. Sanders with two voltages are wired for the lower voltage.

Miter gauge enables angled sanding.

	Table
For Disc Dia.	Wd.	Lg.	Max. No-Load Speed, rpm	No. of Speeds	Voltage	Current, A	Motor Speed, rpm	hp	Phase	Includes	Features		Each
On/Off Switch Control
10"	6"	11"	1,725	One	120V AC/240V AC	7.4/3.7	1,725	1/2	Single	Miter Gauge	Disc Guard	0000000	0000000
12"	8"	14"	1,725	One	120V AC/240V AC	12.8/6.4	1,725	1	Single	Miter Gauge	Disc Guard	0000000	00000000

Center Finders for Curved Surfaces

Center your work by mounting these into your drill chuck or collet and lining up the pointer with the mark on the shaft.

For Max. Dia.	Material		Each
5"	Chrome-Plated Steel	00000000	000000
