Floor Sinks
Empty heavy buckets of liquid directly into these low-profile, floor-mounted sinks. They are also known as mop sinks. Install them by sliding over 3" pipe. The connection is made water tight with the included seal.
Freestanding Sinks
A (Shown without Faucet)
B (Shown with Faucet)
C
E
G&H
J
F
D
Sinks that meet NSF/ANSI standards have rounded corners that are easy to clean and resist buildup. They are typically used in food service applications.
Style C has a threaded side opening with removable plug for external draining.
Style F is the most corrosion resistant sink we offer. The bowl is undercoated to prevent condensation.
Optional drain board for styles H&J is an angled shelf that mounts to either side of the sink.
O'all | Bowl Inside | Faucet Holes | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Style | No. of Bowls | Wd. | Dp. | Ht. | Wd. | Dp. | Ht. | Drain Opening Dia. | No. of | Dia. | Ctr.-to-Ctr. | For Use Outdoors | Features | Includes | Each | |
Sinks | ||||||||||||||||
White Plastic with Steel Legs | ||||||||||||||||
| A | 1 | 20" | 23 7/8" | 33 3/4" | 19 1/2" | 19 5/8" | 13" | 1 3/4" | 2 | 1" | 4" | No | Leveling Feet | Drain with Strainer | 000000 | 0000000 |
| B | 2 | 40" | 24" | 33 3/4" | 18 7/8" | 18 5/8" | 12 1/2" | 1 3/4" | 2 | 1 1/4" | 4", 8" | No | Leveling Feet | Drain with Strainer | 0000000 | 000000 |
304 Stainless Steel with Stainless Steel Legs | ||||||||||||||||
| C | 1 | 36" | 18" | 32" | 35 3/4" | 17 3/4" | 14" | 1 1/4" | 0 | __ | __ | Yes | Removable Legs | Removable Plug for Side Opening, Tailpiece | 0000000 | 00000000 |
| E | 1 | 26" | 21" | 33" | 24" | 18 3/4" | 13 1/2" | 1 3/4" | 0 | __ | __ | Yes | __ | Drain with Strainer | 0000000 | 000000 |
| E | 1 | 32" | 21" | 33" | 30" | 18 3/4" | 13 1/2" | 1 3/4" | 0 | __ | __ | Yes | __ | Drain with Strainer | 0000000 | 000000 |
| E | 1 | 40" | 21" | 33" | 38" | 18 3/4" | 13 1/2" | 1 3/4" | 0 | __ | __ | Yes | __ | Drain with Strainer | 0000000 | 000000 |
| E | 1 | 52" | 21" | 33" | 50" | 18 3/4" | 13 1/2" | 1 3/4" | 0 | __ | __ | Yes | __ | Drain with Strainer | 0000000 | 000000 |
| E | 1 | 64" | 21" | 33" | 62" | 18 3/4" | 13 1/2" | 1 3/4" | 0 | __ | __ | Yes | __ | Drain with Strainer | 0000000 | 000000 |
| H | 1 | 27" | 27" | 48" | 24" | 24" | 12" | 3 1/2" | 2 | 1 1/4" | 8" | No | Seamless Bowl | __ | 0000000 | 00000000 |
| H | 1 | 39" | 27" | 48" | 36" | 24" | 12" | 3 1/2" | 2 | 1 1/4" | 8" | No | Seamless Bowl | __ | 0000000 | 00000000 |
| J | 2 | 51" | 27" | 48" | 24" | 24" | 12" | 3 1/2" | 4 | 1 1/4" | 8" | No | Seamless Bowl | __ | 0000000 | 00000000 |
| J | 2 | 63" | 27" | 48" | 30" | 24" | 12" | 3 1/2" | 4 | 1 1/4" | 8" | No | Seamless Bowl | __ | 0000000 | 00000000 |
304 Stainless Steel with Stainless Steel Legs—Meets NSF/ANSI 2 | ||||||||||||||||
| G | 1 | 27" | 27 1/2" | 44" | 24" | 24" | 14" | 3 1/2" | 2 | 1 1/2" | 8" | No | Seamless Bowl | __ | 0000000 | 00000000 |
| G | 1 | 39" | 27 1/2" | 44" | 36" | 24" | 14" | 3 1/2" | 2 | 1 1/2" | 8" | No | Seamless Bowl | __ | 0000000 | 00000000 |
304 Stainless Steel with Iron Legs | ||||||||||||||||
| E | 1 | 26" | 21" | 33" | 24" | 18 3/4" | 13 1/2" | 1 3/4" | 0 | __ | __ | Yes | __ | Drain with Strainer | 0000000 | 000000 |
| E | 1 | 32" | 21" | 33" | 30" | 18 3/4" | 13 1/2" | 1 3/4" | 0 | __ | __ | Yes | __ | Drain with Strainer | 0000000 | 000000 |
| E | 1 | 40" | 21" | 33" | 38" | 18 3/4" | 13 1/2" | 1 3/4" | 0 | __ | __ | Yes | __ | Drain with Strainer | 0000000 | 000000 |
| E | 1 | 52" | 21" | 33" | 50" | 18 3/4" | 13 1/2" | 1 3/4" | 0 | __ | __ | Yes | __ | Drain with Strainer | 0000000 | 000000 |
| E | 1 | 64" | 21" | 33" | 62" | 18 3/4" | 13 1/2" | 1 3/4" | 0 | __ | __ | Yes | __ | Drain with Strainer | 0000000 | 000000 |
316 Stainless Steel with Steel Legs | ||||||||||||||||
| F | 1 | 39" | 20" | 46" | 36" | 17" | 9" | 1 1/2" | 0 | __ | __ | No | Leveling Feet, Undercoated Bowl | Drain with Strainer | 0000000 | 00000000 |
| F | 1 | 51" | 27" | 46" | 48" | 24" | 5" | 1 1/2" | 0 | __ | __ | No | Leveling Feet, Undercoated Bowl | Drain with Strainer | 0000000 | 00000000 |
| Optional Drain Board for Style H and J | 0000000 | Each | 0000000 |
O'all | Bowl Inside | Inlet | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Style | No. of Bowls | Wd. | Dp. | Ht. | Wd. | Dp. | Ht. | Drain Opening Dia. | Spout Type | Pipe Size | Thread Type | Flow Rate, gpm | For Use Outdoors | Features | Includes | Each | |
Sinks with Chrome-Plated Brass Faucet | |||||||||||||||||
White Plastic with Steel Legs | |||||||||||||||||
| A | 1 | 20" | 23 7/8" | 40 3/4" | 19 1/2" | 19 5/8" | 13" | 1 3/4" | Swivel | 1/2 | NPT | 2.1 | No | Leveling Feet | Drain with Strainer | 000000 | 0000000 |
| B | 2 | 40" | 24" | 40 3/4" | 18 7/8" | 18 5/8" | 12 1/2" | 1 3/4" | Swivel | 1/2 | NPT | 2.1 | No | Leveling Feet | Drain with Strainer | 0000000 | 000000 |
304 Stainless Steel with Stainless Steel Legs—Meets NSF/ANSI 2 | |||||||||||||||||
| D | 3 | 58" | 23" | 38 7/8" | 11" | 15" | 11" | 3 1/2" | Swivel | 1/2 | NPS | 2.2 | Yes | __ | Drain with Strainer | 0000000 | 00000000 |
Hands-Free Freestanding Sinks
C
A
B
D
E
F

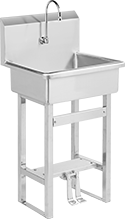

Step on the pedals for water; release them to stop the flow. These sinks have rounded corners that are easy to clean and resist buildup.
Sinks that meet NSF/ANSI 372 have parts that comply with requirements for lead content when they touch water. They are typically used in food service applications.
Sinks with 0.5 gpm flow rate are useful when water consumption is a concern.
Touch-free faucet kit (sold separately) converts the faucet to a touch-free faucet.
Energy efficiency requirements restrict sales of sinks that cannot be sold to the listed jurisdictions/areas.
O'all | Bowl Inside | Inlet | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wd. | Dp. | Ht. | Wd. | Dp. | Ht. | Backsplash Ht. | Drain Opening Dia. | Spout Type | Pipe Size | Thread Type | For Use Outdoors | Includes | Cannot Be Sold To | Each | ||
0.5 gpm Flow Rate | ||||||||||||||||
304 Stainless Steel with Chrome-Plated Brass Faucet | ||||||||||||||||
| C | 23" | 20 1/2" | 51 1/2" | 20" | 17" | 9" | 10 1/2" | 2" | Swivel | 1/2 | NPT | Yes | Drain with Strainer | __ | 00000000 | 000000000 |
304 Stainless Steel with Chrome-Plated Brass Faucet—Meets NSF/ANSI 2, NSF/ANSI 372 | ||||||||||||||||
| A | 19" | 18" | 46" | 17" | 14" | 7" | 9 1/2" | 2" | Swivel | 1/2 | NPT | Yes | Drain with Strainer | __ | 00000000 | 000000 |
| A | 21" | 20" | 46" | 19" | 16" | 10" | 9 1/2" | 2" | Swivel | 1/2 | NPT | Yes | Drain with Strainer | __ | 00000000 | 00000000 |
| B | 19" | 18" | 46" | 17" | 14" | 7" | 9 1/2" | 2" | Swivel | 1/2 | NPT | Yes | Drain with Strainer | __ | 00000000 | 00000000 |
| D | 40" | 20" | 49 1/4" | 37" | 16 1/2" | 8" | 10" | 2" | Swivel | 1/2 | NPT | Yes | Drain with Strainer | __ | 00000000 | 00000000 |
| E | 60" | 20" | 49 1/4" | 57" | 16 1/2" | 8" | 10" | 2" | Swivel | 1/2 | NPT | Yes | Drain with Strainer | __ | 00000000 | 00000000 |
| F | 80" | 20" | 49 1/4" | 77" | 16 1/2" | 8" | 10" | 2" | Swivel | 1/2 | NPT | Yes | Drain with Strainer | __ | 00000000 | 00000000 |
2 gpm Flow Rate | ||||||||||||||||
304 Stainless Steel with Chrome-Plated Brass Faucet | ||||||||||||||||
| C | 23" | 20 1/2" | 51 1/2" | 20" | 17" | 9" | 10 1/2" | 2" | Swivel | 1/2 | NPT | Yes | Drain with Strainer | CA, CO, DC, HI, MA, ME, NJ, OR, RI, VT, WA | 00000000 | 00000000 |
304 Stainless Steel with Chrome-Plated Brass Faucet—Meets NSF/ANSI 2, NSF/ANSI 372 | ||||||||||||||||
| A | 19" | 18" | 46" | 17" | 14" | 7" | 9 1/2" | 2" | Swivel | 1/2 | NPT | Yes | Drain with Strainer | CA, CO, DC, HI, MA, ME, NJ, OR, RI, VT, WA | 0000000 | 000000 |
| A | 21" | 20" | 46" | 19" | 16" | 10" | 9 1/2" | 2" | Swivel | 1/2 | NPT | Yes | Drain with Strainer | CA, CO, DC, HI, MA, ME, NJ, OR, RI, VT, WA | 0000000 | 00000000 |
| B | 19" | 18" | 46" | 17" | 14" | 7" | 9 1/2" | 2" | Swivel | 1/2 | NPT | Yes | Drain with Strainer | CA, CO, DC, HI, MA, ME, NJ, OR, RI, VT, WA | 00000000 | 00000000 |
| D | 40" | 20" | 49 1/4" | 37" | 16 1/2" | 8" | 10" | 2" | Swivel | 1/2 | NPT | Yes | Drain with Strainer | CA, CO, DC, HI, MA, ME, NJ, OR, RI, VT, WA | 00000000 | 00000000 |
| E | 60" | 20" | 49 1/4" | 57" | 16 1/2" | 8" | 10" | 2" | Swivel | 1/2 | NPT | Yes | Drain with Strainer | CA, CO, DC, HI, MA, ME, NJ, OR, RI, VT, WA | 00000000 | 00000000 |
| F | 80" | 20" | 49 1/4" | 77" | 16 1/2" | 8" | 10" | 2" | Swivel | 1/2 | NPT | Yes | Drain with Strainer | CA, CO, DC, HI, MA, ME, NJ, OR, RI, VT, WA | 00000000 | 00000000 |
| Touch-Free Faucet Kit | 00000000 | Each | 0000000 |
| Replacement Foot Valve (with 2 Pedals) | 0000000 | Each | 000000 |
| Replacement Faucet Spout | 0000000 | Each | 000000 |
| Replacement Aerator for Sink with 2 gpm Flow Rate (Cannot Be Sold To: CA, CO, DC, HI, MA, ME, NJ, OR, RI, VT, WA) | 00000000 | Each | 0000 |
| Valve Repair Kit | 0000000 | Each | 00000 |
| Replacement Strainer | 00000000 | Each | 00000 |
| Replacement Aerator for Sink with 0.5 gpm Flow Rate | 00000000 | Each | 0000 |
Touch-Free Freestanding Sinks
Wash your hands without touching a knob or handle—these freestanding sinks turn on with motion sensors. They’re often used in food service applications. For easy cleaning and to prevent buildup, they’re built with rounded corners. All meet NSF/ANSI 372 standards for lead content.
Sinks with a 0.5 gpm flow rate release water more slowly than sinks with a 2 gpm flow rate to save on usage.
Energy efficiency requirements restrict sales of sinks that cannot be sold to the listed jurisdictions/areas.
For technical drawings and 3-D models, click on a part number.
Sinks
A
B
C
0.5 gpm Flow Rate
Overall | Bowl Inside | Inlet | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Style | Wd. | Dp. | Ht. | Wd. | Dp. | Ht. | Drain Opening Dia. | For Tube OD | Tube Connection Type | For Use Outdoors | Includes | Specifications Met | Each | |
304 Stainless Steel with Chrome-Plated Brass Faucet | ||||||||||||||
| A | 20" | 17 1/2" | 43 1/2" | 17" | 14" | 7" | 2" | 3/8" | Compression | No | Drain with Strainer, One Mounting Bracket | NSF/ANSI 2 NSF/ANSI 372 UL Listed | 0000000 | 000000000 |
| B | 23" | 20 1/2" | 46 1/2" | 20" | 17" | 9" | 2" | 3/8" | Compression | No | Drain with Strainer, One Mounting Bracket | NSF/ANSI 2 NSF/ANSI 372 UL Listed | 0000000 | 00000000 |
| C | 40" | 20" | 45" | 37" | 16 1/2" | 8" | 2" | 3/8" | Compression | No | Drain with Strainer, One Mounting Bracket | NSF/ANSI 2 NSF/ANSI 372 UL Listed | 0000000 | 00000000 |
2 gpm Flow Rate
Overall | Bowl Inside | Inlet | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Style | Wd. | Dp. | Ht. | Wd. | Dp. | Ht. | Drain Opening Dia. | For Tube OD | Tube Connection Type | For Use Outdoors | Includes | Specifications Met | Cannot Be Sold To | Each | |
304 Stainless Steel with Chrome-Plated Brass Faucet | |||||||||||||||
| A | 20" | 17 1/2" | 43 1/2" | 17" | 14" | 7" | 2" | 3/8" | Compression | No | Drain with Strainer, One Mounting Bracket | NSF/ANSI 2 NSF/ANSI 372 UL Listed | CA, CO, DC, HI, MA, ME, NJ, OR, RI, VT, WA | 0000000 | 000000000 |
| B | 23" | 20 1/2" | 46 1/2" | 20" | 17" | 9" | 2" | 3/8" | Compression | No | Drain with Strainer, One Mounting Bracket | NSF/ANSI 2 NSF/ANSI 372 UL Listed | CA, CO, DC, HI, MA, ME, NJ, OR, RI, VT, WA | 0000000 | 00000000 |
| C | 40" | 20" | 45" | 37" | 16 1/2" | 8" | 2" | 3/8" | Compression | No | Drain with Strainer, One Mounting Bracket | NSF/ANSI 2 NSF/ANSI 372 UL Listed | CA, CO, DC, HI, MA, ME, NJ, OR, RI, VT, WA | 0000000 | 00000000 |
Replacement Strainers
Replacement Strainer
| Strainer Type | Material | For Drain ID | Each | |
| Basket | Stainless Steel | 2"-2 1/2" | 00000000 | 000000 |
Replacement Mixing/Check Valves
Mixing/Check Valve
Inlet/Outlet | |||
|---|---|---|---|
| For Tube OD | Tube Connection Type | Each | |
| 3/8" | Compression | 0000000 | 000000 |
Wall-Mount Sinks
A
B (Shown with Faucet)
C
D
E
F
G
H
Styles A and D help comply with ADA when properly installed.
Style E are typically used in food service applications. They have rounded corners that are easy to clean and resist buildup.
O'all | Bowl Inside | Faucet Holes | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Style | Wd. | Dp. | Ht. | Wd. | Dp. | Ht. | Drain Opening Dia. | No. of | Dia. | Ctr.-to-Ctr. | Mounting Fasteners Included | For Use Outdoors | Features | Includes | Each | |
Sinks | ||||||||||||||||
White Porcelain—Meets ADA Compliant, ASME A112.19.2/CSA B45.1 | ||||||||||||||||
| A | 21" | 18 3/4" | 10 1/4" | 16" | 10 3/4" | 8 1/4" | 1 1/4" | 3 | 1 1/4" | 4" | No | No | Overflow Hole | One Mounting Bracket | 0000000 | 0000000 |
White Plastic | ||||||||||||||||
| B | 20" | 23 7/8" | 14 3/8" | 19 1/2" | 19 5/8" | 13" | 1 3/4" | 2 | 1" | 4" | Yes | No | __ | Drain with Strainer, One Mounting Bracket | 000000 | 000000 |
304 Stainless Steel | ||||||||||||||||
| C | 18" | 15" | 7" | 9 1/2" | 14 1/2" | 6" | 1 1/2" | 3 | 1 1/4" | 4" | No | No | Seamless Bowl | Drain with Strainer, One Mounting Bracket, Tailpiece | 0000000 | 000000 |
| D | 18" | 22" | 8" | 14" | 12" | 5" | 1 1/2" | 3 | 1 1/4" | 4" | Yes | No | Seamless Bowl | Drain with Strainer, Tailpiece, Three Mounting Brackets | 0000000 | 000000 |
O'all | Bowl Inside | Inlet | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Style | Wd. | Dp. | Ht. | Wd. | Dp. | Ht. | Drain Opening Dia. | Faucet Material | Spout Type | Pipe Size | Thread Type | Flow Rate, gpm | Mounting Fasteners Included | For Use Outdoors | Includes | Each | |
Sinks with Chrome-Plated Faucet | |||||||||||||||||
White Plastic | |||||||||||||||||
| B | 20" | 23 7/8" | 21 3/8" | 19 1/2" | 19 5/8" | 13" | 1 3/4" | Brass | Swivel | 1/2 | NPT | 2.1 | Yes | No | Drain with Strainer, One Mounting Bracket | 000000 | 0000000 |
304 Stainless Steel—Meets NSF/ANSI 2 | |||||||||||||||||
| E | 17" | 15 1/4" | 25 1/8" | 13 3/4" | 10" | 5 1/2" | 1 7/8" | Bronze | Swivel | 1/2 | NPT | 2.2 | No | Yes | Drain with Strainer, One Mounting Bracket, P-Trap, Tailpiece | 0000000 | 000000 |
| E | 24 3/4" | 22" | 27 1/4" | 20" | 16" | 6 1/4" | 1 7/8" | Bronze | Swivel | 1/2 | NPT | 2.2 | No | Yes | Drain with Strainer, One Mounting Bracket, P-Trap, Tailpiece | 0000000 | 00000000 |
304 Stainless Steel | |||||||||||||||||
| F | 21" | 17 1/2" | 39 3/4" | 18" | 14" | 12" | 3 1/2" | Brass | Fixed | 1/2 | NPT | 2.5 | No | No | Drain with Strainer, P-Trap with Cleanout Plug, Three Mounting Brackets | 000000 | 00000000 |
| F | 25" | 19 1/2" | 39 3/4" | 22" | 16" | 12" | 3 1/2" | Brass | Fixed | 1/2 | NPT | 2.5 | No | No | Drain with Strainer, P-Trap with Cleanout Plug, Three Mounting Brackets | 000000 | 00000000 |
| G | 48" | 20" | 33 3/4" | 45" | 16 1/2" | 8" | 3 1/2" | Brass | Swivel or Fixed | 1/2 | NPT | 2.2 | No | No | Drain with Strainer, Tailpiece, Three Mounting Brackets | 0000000 | 00000000 |
| H | 60" | 20" | 33 3/4" | 57" | 16 1/2" | 8" | 3 1/2" | Brass | Swivel or Fixed | 1/2 | NPT | 2.2 | No | No | Drain with Strainer, Tailpiece, Three Mounting Brackets | 0000000 | 00000000 |
Hands-Free Wall-Mount Sinks
A
B
C
D
E
F
Press the pedals with your knees for water; release them to stop the flow. These sinks have rounded corners that are easy to clean and resist buildup.
Sinks that meet NSF/ANSI 372 have parts that comply with requirements for lead content when they touch water. They are typically used in food service applications.
Sinks with 0.5 gpm flow rate are useful when water consumption is a concern.
Touch-free faucet kit (sold separately) converts the faucet to a touch-free faucet.
Energy efficiency requirements restrict sales of sinks that cannot be sold to the listed jurisdictions/areas.
O'all | Bowl Inside | Inlet | Mounting Holes | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wd. | Dp. | Ht. | Wd. | Dp. | Ht. | Backsplash Ht. | Drain Opening Dia. | Spout Type | Pipe Size | Thread Type | Mounting Fasteners Included | No. of | Dia. | For Use Outdoors | Includes | Cannot Be Sold To | Each | ||
0.5 gpm Flow Rate | |||||||||||||||||||
304 Stainless Steel with Chrome-Plated Brass Faucet | |||||||||||||||||||
| A | 16" | 15 1/4" | 22 3/4" | 14" | 11" | 5" | 8" | 2" | Swivel | 1/2 | NPT | No | 2 | 1/4" | Yes | Drain with Strainer, One Mounting Bracket | __ | 00000000 | 0000000 |
| B | 16" | 15 1/4" | 22 3/4" | 14" | 11" | 5" | 8" | 2" | Swivel | 1/2 | NPT | No | 2 | 1/4" | Yes | Drain with Strainer, One Mounting Bracket | __ | 00000000 | 000000 |
| C | 19" | 16" | 27" | 16" | 12 1/2" | 6" | 9" | 2" | Swivel | 1/2 | NPT | No | 3 | 1/4" | Yes | Drain with Strainer, One Mounting Bracket | __ | 00000000 | 000000 |
| C | 23" | 20 1/2" | 31 1/2" | 20" | 17" | 9" | 10 1/2" | 2" | Swivel | 1/2 | NPT | No | 3 | 1/4" | Yes | Drain with Strainer, One Mounting Bracket | __ | 00000000 | 00000000 |
304 Stainless Steel with Chrome-Plated Brass Faucet—Meets NSF/ANSI 2, NSF/ANSI 372 | |||||||||||||||||||
| A | 19" | 18" | 27 3/4" | 17" | 14" | 7" | 9 1/2" | 2" | Swivel | 1/2 | NPT | No | 3 | 1/4" | Yes | Drain with Strainer, One Mounting Bracket | __ | 00000000 | 000000 |
| A | 21" | 20" | 30 3/4" | 19" | 16" | 10" | 9 1/2" | 2" | Swivel | 1/2 | NPT | No | 3 | 1/4" | Yes | Drain with Strainer, One Mounting Bracket | __ | 00000000 | 00000000 |
| B | 19" | 18" | 27 3/4" | 17" | 14" | 7" | 9 1/2" | 2" | Swivel | 1/2 | NPT | No | 3 | 1/4" | Yes | Drain with Strainer, One Mounting Bracket | __ | 00000000 | 00000000 |
| D | 40" | 20" | 29 1/4" | 37" | 16 1/2" | 8" | 10" | 2" | Swivel | 1/2 | NPT | No | 6 | 1/4" | Yes | Drain with Strainer, Two Mounting Brackets | __ | 00000000 | 00000000 |
| E | 60" | 20" | 29 1/4" | 57" | 16 1/2" | 8" | 10" | 2" | Swivel | 1/2 | NPT | No | 6 | 1/4" | Yes | Drain with Strainer, Two Mounting Brackets | __ | 00000000 | 00000000 |
| F | 80" | 20" | 29 1/4" | 77" | 16 1/2" | 8" | 10" | 2" | Swivel | 1/2 | NPT | No | 9 | 1/4" | Yes | Drain with Strainer, Three Mounting Brackets | __ | 00000000 | 00000000 |
2 gpm Flow Rate | |||||||||||||||||||
304 Stainless Steel with Chrome-Plated Brass Faucet | |||||||||||||||||||
| A | 16" | 15 1/4" | 22 3/4" | 14" | 11" | 5" | 8" | 2" | Swivel | 1/2 | NPT | No | 2 | 1/4" | Yes | Drain with Strainer, One Mounting Bracket | CA, CO, DC, HI, MA, ME, NJ, OR, RI, VT, WA | 00000000 | 000000 |
| B | 16" | 15 1/4" | 22 3/4" | 14" | 11" | 5" | 8" | 2" | Swivel | 1/2 | NPT | No | 2 | 1/4" | Yes | Drain with Strainer, One Mounting Bracket | CA, CO, DC, HI, MA, ME, NJ, OR, RI, VT, WA | 00000000 | 000000 |
| C | 19" | 16" | 27" | 16" | 12 1/2" | 6" | 9" | 2" | Swivel | 1/2 | NPT | No | 3 | 1/4" | Yes | Drain with Strainer, One Mounting Bracket | CA, CO, DC, HI, MA, ME, NJ, OR, RI, VT, WA | 00000000 | 000000 |
| C | 23" | 20 1/2" | 31 1/2" | 20" | 17" | 9" | 10 1/2" | 2" | Swivel | 1/2 | NPT | No | 3 | 1/4" | Yes | Drain with Strainer, One Mounting Bracket | CA, CO, DC, HI, MA, ME, NJ, OR, RI, VT, WA | 00000000 | 00000000 |
304 Stainless Steel with Chrome-Plated Brass Faucet—Meets NSF/ANSI 2, NSF/ANSI 372 | |||||||||||||||||||
| A | 19" | 18" | 27 3/4" | 17" | 14" | 7" | 9 1/2" | 2" | Swivel | 1/2 | NPT | No | 3 | 1/4" | Yes | Drain with Strainer, One Mounting Bracket | CA, CO, DC, HI, MA, ME, NJ, OR, RI, VT, WA | 0000000 | 000000 |
| A | 21" | 20" | 30 3/4" | 19" | 16" | 10" | 9 1/2" | 2" | Swivel | 1/2 | NPT | No | 3 | 1/4" | Yes | Drain with Strainer, One Mounting Bracket | CA, CO, DC, HI, MA, ME, NJ, OR, RI, VT, WA | 0000000 | 00000000 |
| B | 19" | 18" | 27 3/4" | 17" | 14" | 7" | 9 1/2" | 2" | Swivel | 1/2 | NPT | No | 3 | 1/4" | Yes | Drain with Strainer, One Mounting Bracket | CA, CO, DC, HI, MA, ME, NJ, OR, RI, VT, WA | 00000000 | 00000000 |
| D | 40" | 20" | 29 1/4" | 37" | 16 1/2" | 8" | 10" | 2" | Swivel | 1/2 | NPT | No | 6 | 1/4" | Yes | Drain with Strainer, Two Mounting Brackets | CA, CO, DC, HI, MA, ME, NJ, OR, RI, VT, WA | 00000000 | 00000000 |
| E | 60" | 20" | 29 1/4" | 57" | 16 1/2" | 8" | 10" | 2" | Swivel | 1/2 | NPT | No | 6 | 1/4" | Yes | Drain with Strainer, Two Mounting Brackets | CA, CO, DC, HI, MA, ME, NJ, OR, RI, VT, WA | 00000000 | 00000000 |
| F | 80" | 20" | 29 1/4" | 77" | 16 1/2" | 8" | 10" | 2" | Swivel | 1/2 | NPT | No | 9 | 1/4" | Yes | Drain with Strainer, Three Mounting Brackets | CA, CO, DC, HI, MA, ME, NJ, OR, RI, VT, WA | 00000000 | 00000000 |
| Replacement Knee Valve (with 2 Pedals) | 0000000 | Each | 0000000 |
| Valve Repair Kit | 0000000 | Each | 00000 |
| Replacement Strainer | 00000000 | Each | 00000 |
| Replacement Faucet Spout | 0000000 | Each | 000000 |
| Replacement Aerator for Sink with 0.5 gpm Flow Rate | 00000000 | Each | 0000 |
| Touch-Free Faucet Kit | 00000000 | Each | 000000 |
| Replacement Aerator for Sink with 2 gpm Flow Rate (Cannot Be Sold To: CA, CO, DC, HI, MA, ME, NJ, OR, RI, VT, WA) | 00000000 | Each | 0000 |
Touch-Free Wall-Mount Sinks
A
B
Place your hands in front of the sensor for water. These sinks are typically used in food service applications. They have rounded corners that are easy to clean and resist buildup. Meeting NSF/ANSI 372, their components comply with standards for lead content.
Choose sinks with a 0.5 gpm flow rate to conserve water.
Sinks with a 5-in. bowl height are ADA compliant.
Energy efficiency requirements restrict sales of sinks that cannot be sold to the listed jurisdictions/areas.
For technical drawings and 3-D models, click on a part number.
O'all | Bowl Inside | Inlet | Mounting Holes | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wd. | Dp. | Ht. | Wd. | Dp. | Ht. | Drain Opening Dia. | Spout Type | Flow Rate, gpm | For Tube OD | Tube Connection Type | Mounting Fasteners Included | No. of | Dia. | Detection Range | For Use Outdoors | Includes | Cannot Be Sold To | Each | ||
304 Stainless Steel with Chrome-Plated Brass Faucet—Meets NSF/ANSI 2, NSF/ANSI 372, UL Listed | ||||||||||||||||||||
| A | 19" | 18" | 21" | 17" | 14" | 7" | 2" | Swivel | 0.5 | 3/8" | Compression | No | 3 | 1/4" | 6"-30" | No | Drain with Strainer, One Mounting Bracket | __ | 0000000 | 000000000 |
| A | 19" | 18" | 21" | 17" | 14" | 7" | 2" | Swivel | 2 | 3/8" | Compression | No | 3 | 1/4" | 6"-30" | No | Drain with Strainer, One Mounting Bracket | CA, CO, DC, HI, MA, ME, NJ, OR, RI, VT, WA | 00000000 | 00000000 |
| A | 21" | 20" | 24" | 19" | 16" | 10" | 2" | Swivel | 0.5 | 3/8" | Compression | No | 3 | 1/4" | 6"-30" | No | Drain with Strainer, One Mounting Bracket | __ | 00000000 | 00000000 |
| A | 21" | 20" | 24" | 19" | 16" | 10" | 2" | Swivel | 2 | 3/8" | Compression | No | 3 | 1/4" | 6"-30" | No | Drain with Strainer, One Mounting Bracket | CA, CO, DC, HI, MA, ME, NJ, OR, RI, VT, WA | 00000000 | 00000000 |
| B | 68" | 20" | 23" | 65" | 16 1/2" | 5" | 2" | Swivel | 2 | 3/8" | Compression | No | 6 | 1/4" | 6"-30" | No | Drain with Strainer, Two Mounting Brackets | CA, CO, DC, HI, MA, ME, NJ, OR, RI, VT, WA | 00000000 | 00000000 |
Countertop Sinks
A (Sink)
B (Sink)
C (Sink Shown with Faucet)
D (Sink)
E (Sink Shown with Faucet and Sprayer)
F (Sink Shown with Faucet)
G (Sink Shown with Faucet and Sprayer)
Fiberglass sinks are impact and stain resistant. Plastic sinks are more chemical resistant than fiberglass.
Stainless steel sinks offer the best corrosion and chemical resistance. They're undercoated to prevent condensation.
Style A have a back ledge that can be drilled for a faucet.
To install Style C, apply sealant (not included) to rim and drop into your counter.
Use optional installation clips to install Style D sinks in countertops that are 3/4" or thicker, or countertops made of material that cannot be nailed into. 13" × 13" and 15" × 15" sinks require eight installation clips, while larger sinks require 12.
O'all | Bowl Inside | For Countertop Hole | Faucet Holes | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Style | Wd. | Dp. | Ht. | Wd. | Dp. | Ht. | Wd. | Dp. | Drain Opening Dia. | No. of | Dia. | Ctr.-to-Ctr. | Mounting Hardware Included | For Use Outdoors | Includes | Each | |
Sinks | |||||||||||||||||
White Fiberglass | |||||||||||||||||
| A | 17" | 20" | 10" | 14" | 15" | 9 1/2" | 15 1/2" | 18 1/2" | 3 1/2" | 0 | __ | __ | Yes | No | __ | 0000000 | 000000 |
| A | 25" | 22" | 13 3/4" | 21 3/8" | 15 3/4" | 13 1/4" | 24" | 21" | 1 1/2" | 0 | __ | __ | Yes | No | Drain with Strainer, Stopper | 0000000 | 000000 |
Black Plastic | |||||||||||||||||
| B | 14 1/2" | 14 1/2" | 8 1/4" | 12" | 12" | 8" | 12 1/2" | 12 1/2" | 1 1/2" | 0 | __ | __ | __ | Yes | Drain with Strainer, Stopper, Tailpiece | 0000000 | 000000 |
| B | 17 1/2" | 27 1/2" | 10 1/4" | 15" | 25" | 10" | 15 1/2" | 25 1/2" | 1 1/2" | 0 | __ | __ | __ | Yes | Drain with Strainer, Stopper, Tailpiece | 0000000 | 000000 |
| B | 18 1/2" | 18 1/2" | 8 1/4" | 16" | 16" | 8" | 16 1/2" | 16 1/2" | 1 1/2" | 0 | __ | __ | __ | Yes | Drain with Strainer, Stopper, Tailpiece | 0000000 | 000000 |
| B | 20 1/2" | 23 1/2" | 10 1/4" | 18" | 21" | 10" | 18 1/2" | 21 1/2" | 1 1/2" | 0 | __ | __ | __ | Yes | Drain with Strainer, Stopper, Tailpiece | 0000000 | 000000 |
| B | 20 1/2" | 25 1/2" | 12 1/4" | 18" | 23" | 12" | 18 1/2" | 23 1/2" | 1 1/2" | 0 | __ | __ | __ | Yes | Drain with Strainer, Stopper, Tailpiece | 0000000 | 000000 |
304 Stainless Steel | |||||||||||||||||
| C | 15" | 15" | 6 1/8" | 12" | 10" | 6" | 14 3/8" | 14 3/8" | 2" | 2 | 1 1/4" | 4" | Yes | No | __ | 0000000 | 000000 |
| D | 13" | 13" | 7 11/16" | 10" | 10" | 7 1/2" | 12 1/4" | 12 1/4" | 3 1/2" | 0 | __ | __ | Yes | No | __ | 00000000 | 000000 |
| D | 15" | 15" | 7 11/16" | 12" | 12" | 7 1/2" | 14 1/4" | 14 1/4" | 3 1/2" | 0 | __ | __ | Yes | No | __ | 0000000 | 000000 |
| D | 17" | 19" | 7 11/16" | 14" | 16" | 7 1/2" | 16 1/4" | 18 1/4" | 3 1/2" | 0 | __ | __ | Yes | No | __ | 00000000 | 000000 |
| D | 25" | 19" | 7 11/16" | 22" | 16" | 7 1/2" | 24 1/4" | 18 1/4" | 3 1/2" | 0 | __ | __ | Yes | No | __ | 0000000 | 000000 |
| D | 25" | 19" | 10 11/16" | 22" | 16" | 10 1/2" | 24 1/2" | 18 1/4" | 3 1/2" | 0 | __ | __ | Yes | No | __ | 00000000 | 000000 |
| E | 17" | 16" | 7 5/8" | 14" | 10" | 7 1/2" | 16 3/8" | 15 3/8" | 3 1/2" | 3 | 1 1/2" | 4" | Yes | No | __ | 00000000 | 000000 |
| E | 17" | 22" | 10 1/8" | 13 1/2" | 16" | 10" | 16 3/8" | 21 3/8" | 3 1/2" | 3 | 1 1/2" | 4" | Yes | No | __ | 0000000 | 000000 |
| E | 19" | 18" | 7 5/8" | 16" | 11 1/2" | 7 1/2" | 18 3/8" | 17 3/8" | 3 1/2" | 3 | 1 1/2" | 4" | Yes | No | __ | 0000000 | 000000 |
| E | 19 1/2" | 19" | 10 1/8" | 16" | 13 1/2" | 10" | 18 7/8" | 18 3/8" | 3 1/2" | 3 | 1 1/2" | 4" | Yes | No | __ | 0000000 | 000000 |
| E | 19 1/2" | 22" | 7 5/8" | 16" | 16" | 7 1/2" | 18 7/8" | 21 3/8" | 3 1/2" | 3 | 1 1/2" | 4" | Yes | No | __ | 0000000 | 000000 |
| E | 22" | 19 1/2" | 7 5/8" | 18" | 14" | 7 1/2" | 21 3/8" | 18 7/8" | 3 1/2" | 4 | 1 1/2" | 4" | Yes | No | __ | 0000000 | 000000 |
| E | 25" | 22" | 10 1/8" | 21" | 15 3/4" | 10" | 24 3/8" | 21 3/8" | 3 1/2" | 3 | 1 1/2" | 4" | Yes | No | __ | 0000000 | 000000 |
| E | 25" | 22" | 12 1/8" | 21" | 15 3/4" | 12" | 24 3/8" | 21 3/8" | 3 1/2" | 3 | 1 1/2" | 4" | Yes | No | __ | 0000000 | 000000 |
| E | 33" | 22" | 10 1/8" | 28" | 16" | 10" | 32 3/8" | 21 3/8" | 3 1/2" | 3 | 1 1/2" | 4" | Yes | No | __ | 00000000 | 000000 |
| F | 33" | 22" | 10 1/8" | 13 1/2" | 16" | 10" | 32 3/8" | 21 3/8" | 3 1/2" | 3 | 1 1/2" | 4" | Yes | No | __ | 0000000 | 000000 |
| G | 29" | 18" | 7 5/8" | 12" | 12" | 7 1/2" | 28 3/8" | 17 3/8" | 3 1/2" | 4 | 1 1/2" | 4" | Yes | No | __ | 0000000 | 000000 |
O'all | Bowl Inside | For Countertop Hole | Inlet | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Style | Wd. | Dp. | Ht. | Wd. | Dp. | Ht. | Wd. | Dp. | Drain Opening Dia. | Spout Type | Pipe Size | Thread Type | Flow Rate, gpm | Mounting Hardware Included | For Use Outdoors | Includes | Each | |
Sinks with Chrome-Plated Brass Faucet | ||||||||||||||||||
304 Stainless Steel | ||||||||||||||||||
| C | 15" | 15" | 6 1/8" | 12" | 10" | 6" | 14 3/8" | 14 3/8" | 2" | Swivel | 1/2 | NPS | 2.2 | Yes | No | Drain with Strainer, Tailpiece | 0000000 | 0000000 |
| E | 17" | 16" | 7 5/8" | 14" | 10" | 7 1/2" | 16 3/8" | 15 3/8" | 3 1/2" | Swivel | 1/2 | NPT | 1.2 | Yes | No | __ | 000000 | 000000 |
| E | 17" | 22" | 10 1/8" | 13 1/2" | 16" | 10" | 16 3/8" | 21 3/8" | 3 1/2" | Swivel | 1/2 | NPT | 1.2 | Yes | No | __ | 000000 | 000000 |
| E | 19" | 18" | 7 5/8" | 16" | 11 1/2" | 7 1/2" | 18 3/8" | 17 3/8" | 3 1/2" | Swivel | 1/2 | NPT | 1.2 | Yes | No | __ | 000000 | 000000 |
| E | 19 1/2" | 19" | 10 1/8" | 16" | 13 1/2" | 10" | 18 7/8" | 18 3/8" | 3 1/2" | Swivel | 1/2 | NPT | 1.2 | Yes | No | __ | 000000 | 000000 |
| E | 19 1/2" | 22" | 7 5/8" | 16" | 16" | 7 1/2" | 18 7/8" | 21 3/8" | 3 1/2" | Swivel | 1/2 | NPT | 1.2 | Yes | No | __ | 000000 | 000000 |
| E | 22" | 19 1/2" | 7 5/8" | 18" | 14" | 7 1/2" | 21 3/8" | 18 7/8" | 3 1/2" | Swivel | 1/2 | NPT | 1.2 | Yes | No | Extendable Faucet Sprayer | 0000000 | 000000 |
| E | 25" | 22" | 10 1/8" | 21" | 15 3/4" | 10" | 24 3/8" | 21 3/8" | 3 1/2" | Swivel | 1/2 | NPT | 1.2 | Yes | No | __ | 000000 | 000000 |
| E | 25" | 22" | 12 1/8" | 21" | 15 3/4" | 12" | 24 3/8" | 21 3/8" | 3 1/2" | Swivel | 1/2 | NPT | 1.2 | Yes | No | __ | 000000 | 000000 |
| E | 33" | 22" | 10 1/8" | 28" | 16" | 10" | 32 3/8" | 21 3/8" | 3 1/2" | Swivel | 1/2 | NPT | 1.2 | Yes | No | __ | 0000000 | 00000000 |
| F | 33" | 22" | 10 1/8" | 13 1/2" | 16" | 10" | 32 3/8" | 21 3/8" | 3 1/2" | Swivel | 1/2 | NPT | 1.2 | Yes | No | __ | 0000000 | 00000000 |
| G | 29" | 18" | 7 5/8" | 12" | 12" | 7 1/2" | 28 3/8" | 17 3/8" | 3 1/2" | Swivel | 1/2 | NPT | 1.2 | Yes | No | Extendable Faucet Sprayer | 0000000 | 000000 |
Miniature Countertop Sinks
A
B
Dispose of small quantities of liquids in these sinks. They are also known as cup sinks.
Optional mounting bracket (sold separately) stabilizes Style A sinks dropped into 1" to 1 1/4" thick countertops.
O'all | Bowl Inside | For Countertop Hole | Sinks | Optional Mounting Brackets | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wd. | Dp. | Ht. | Wd. | Dp. | Ht. | Wd. | Dp. | Drain Opening Dia. | For Use Outdoors | Includes | Each | Each | ||
Style A | ||||||||||||||
Plastic | ||||||||||||||
| 7" | 3 7/8" | 8 7/16" | 5 7/8" | 2 7/8" | 4 3/8" | 6 1/2" | 3 3/8" | 1 1/2" | Yes | Drain with Strainer, Tailpiece | 0000000 | 000000 | 0000000 | 000000 |
| 10 1/2" | 4 3/8" | 8 1/2" | 9 3/8" | 3 3/8" | 5 1/2" | 10" | 3 7/8" | 1 1/2" | Yes | Drain with Strainer, Tailpiece | 0000000 | 000000 | 0000000 | 00000 |
O'all | Bowl Inside | Sinks | |||||||
|---|---|---|---|---|---|---|---|---|---|
| Dia. | Ht. | Dia. | Ht. | For Countertop Hole Dia. | Drain Opening Dia. | For Use Outdoors | Includes | Each | |
Style B | |||||||||
Plastic | |||||||||
| 6 9/16" | 6 1/2" | 5 1/2" | 4" | 6 1/8" | 1 1/2" | Yes | Drain with Strainer, Tailpiece | 0000000 | 000000 |
