Adapters for Morse Taper Drill Chuck Arbors
If your Morse taper arbor is too small or large for your machine spindle, insert it into one of these adapters. Also known as sleeves or shell sockets.
For technical drawings and 3-D models, click on a part number.
For Machine Spindle Morse Taper | For Arbor Shank Morse Taper | ||||||
|---|---|---|---|---|---|---|---|
| Number | Dia. | Number | Dia. | Overall Lg. | Material | Each | |
| 2 | 0.7" | 1 | 0.475" | 3 5/8" | Steel | 0000000 | 000000 |
| 3 | 0.938" | 1 | 0.475" | 3 7/8" | Steel | 0000000 | 00000 |
| 3 | 0.938" | 2 | 0.7" | 4 3/8" | Steel | 0000000 | 00000 |
| 4 | 1.231" | 1 | 0.475" | 4 7/8" | Steel | 0000000 | 00000 |
| 4 | 1.231" | 2 | 0.7" | 4 7/8" | Steel | 0000000 | 00000 |
| 4 | 1.231" | 3 | 0.938" | 5 1/2" | Steel | 0000000 | 00000 |
| 5 | 1.748" | 2 | 0.7" | 6 1/8" | Steel | 0000000 | 00000 |
| 5 | 1.748" | 3 | 0.938" | 6 1/8" | Steel | 0000000 | 00000 |
| 5 | 1.748" | 4 | 1.231" | 6 11/16" | Steel | 0000000 | 00000 |
| 6 | 2.494" | 4 | 1.231" | 8 9/16" | Steel | 0000000 | 000000 |
| 6 | 2.494" | 5 | 1.748" | 8 9/16" | Steel | 0000000 | 000000 |

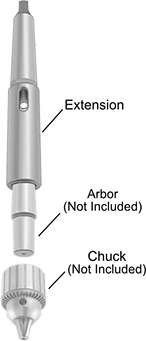

Extensions for Morse Taper Drill Chuck Arbors
Insert your Morse taper arbor into one of these extensions to get additional reach.
For technical drawings and 3-D models, click on a part number.
For Machine Spindle Morse Taper | For Arbor Shank Morse Taper | ||||||
|---|---|---|---|---|---|---|---|
| Number | Dia. | Number | Dia. | Overall Lg. | Material | Each | |
| 2 | 0.7" | 2 | 0.7" | 6 57/64" | Steel | 0000000 | 000000 |
| 2 | 0.7" | 3 | 0.938" | 7 23/32" | Steel | 0000000 | 00000 |
| 3 | 0.938" | 2 | 0.7" | 7 41/64" | Steel | 0000000 | 00000 |
| 3 | 0.938" | 3 | 0.938" | 8 29/64" | Steel | 0000000 | 00000 |
| 3 | 0.938" | 4 | 1.231" | 9 7/16" | Steel | 0000000 | 000000 |
| 4 | 1.231" | 3 | 0.938" | 9 29/64" | Steel | 0000000 | 00000 |
| 4 | 1.231" | 4 | 1.231" | 10 7/16" | Steel | 0000000 | 000000 |
| 4 | 1.231" | 5 | 1.748" | 11 13/16" | Steel | 0000000 | 000000 |
| 5 | 1.748" | 4 | 1.231" | 11 13/16" | Steel | 0000000 | 000000 |
| 5 | 1.748" | 5 | 1.748" | 13 3/16" | Steel | 0000000 | 000000 |
Morse Taper to Jacobs Taper Drill Chuck Arbors
The Morse taper end fits into a machine spindle and the Jacobs taper end is compatible with a Jacobs taper drill chuck. Morse taper spindles are most often found on drill presses. These arbors are made of hardened, precision-ground steel.
For technical drawings and 3-D models, click on a part number.
For Machine Spindle Morse Taper | For Drill Chuck Jacobs Taper | ||||||
|---|---|---|---|---|---|---|---|
| Number | Dia. | Number | Dia. | Overall Lg. | Material | Each | |
| 1 | 0.475" | 0 | 0.25" | 3 3/16" | Steel | 0000000 | 000000 |
| 1 | 0.475" | 1 | 0.384" | 3 25/64" | Steel | 0000000 | 00000 |
| 1 | 0.475" | 2 | 0.559" | 3 5/8" | Steel | 0000000 | 00000 |
| 1 | 0.475" | 3 | 0.811" | 4 1/64" | Steel | 0000000 | 00000 |
| 1 | 0.475" | 6 | 0.676" | 3 25/32" | Steel | 0000000 | 00000 |
| 1 | 0.475" | 33 | 0.624" | 3 25/32" | Steel | 0000000 | 00000 |
| 2 | 0.7" | 0 | 0.25" | 3 25/32" | Steel | 0000000 | 00000 |
| 2 | 0.7" | 1 | 0.384" | 3 63/64" | Steel | 0000000 | 00000 |
| 2 | 0.7" | 2 | 0.559" | 4 7/32" | Steel | 0000000 | 00000 |
| 2 | 0.7" | 3 | 0.811" | 4 39/64" | Steel | 0000000 | 00000 |
| 2 | 0.7" | 4 | 1.124" | 5 3/64" | Steel | 0000000 | 00000 |
| 2 | 0.7" | 6 | 0.676" | 4 3/8" | Steel | 0000000 | 00000 |
| 2 | 0.7" | 33 | 0.624" | 4 17/64" | Steel | 0000000 | 00000 |
| 3 | 0.938" | 1 | 0.384" | 4 47/64" | Steel | 0000000 | 00000 |
| 3 | 0.938" | 2 | 0.559" | 4 31/32" | Steel | 0000000 | 00000 |
| 3 | 0.938" | 3 | 0.811" | 5 23/64" | Steel | 0000000 | 00000 |
| 3 | 0.938" | 4 | 1.124" | 5 51/64" | Steel | 0000000 | 00000 |
| 3 | 0.938" | 5 | 1.413" | 5 29/32" | Steel | 0000000 | 00000 |
| 3 | 0.938" | 6 | 0.676" | 5 1/8" | Steel | 0000000 | 00000 |
| 3 | 0.938" | 33 | 0.624" | 5 1/8" | Steel | 0000000 | 00000 |
| 4 | 1.231" | 2 | 0.559" | 6" | Steel | 0000000 | 00000 |
| 4 | 1.231" | 3 | 0.811" | 6 3/8" | Steel | 0000000 | 00000 |
| 4 | 1.231" | 4 | 1.124" | 6 13/16" | Steel | 0000000 | 00000 |
| 4 | 1.231" | 5 | 1.413" | 6 15/16" | Steel | 0000000 | 00000 |
| 4 | 1.231" | 6 | 0.676" | 6 5/32" | Steel | 0000000 | 00000 |
| 4 | 1.231" | 33 | 0.624" | 6 5/32" | Steel | 0000000 | 00000 |
| 5 | 1.748" | 3 | 0.811" | 7 9/16" | Steel | 0000000 | 00000 |
| 5 | 1.748" | 4 | 1.124" | 8 1/8" | Steel | 0000000 | 00000 |
| 5 | 1.748" | 5 | 1.413" | 8 1/8" | Steel | 0000000 | 000000 |
Tap Holders for Drill Presses and Milling Machines
Also known as tap chucks, these fit into machines that have a Morse taper spindle.
For technical drawings and 3-D models, click on a part number.
| For Tap Size | For Tap Pipe Size | Material | Each | |
Morse Taper 2 | ||||
|---|---|---|---|---|
| __ | 1/8 | Black-Oxide Steel | 0000000 | 000000 |
| No. 14, M6, M6.3 | __ | Black-Oxide Steel | 0000000 | 00000 |
| 5/16", M7, M8 | __ | Black-Oxide Steel | 0000000 | 00000 |
| 3/8", M10 | __ | Black-Oxide Steel | 0000000 | 00000 |
| 7/16" | __ | Black-Oxide Steel | 0000000 | 00000 |
| 1/2", M12, M12.5 | __ | Black-Oxide Steel | 0000000 | 00000 |
| 9/16", M14 | __ | Black-Oxide Steel | 0000000 | 00000 |
| 5/8", M16 | __ | Black-Oxide Steel | 0000000 | 00000 |
Morse Taper 3 | ||||
| __ | 1/4 | Black-Oxide Steel | 0000000 | 00000 |
| 1/2", M12, M12.5 | __ | Black-Oxide Steel | 0000000 | 00000 |
| 5/8", M16 | __ | Black-Oxide Steel | 0000000 | 00000 |
| 3/4" | __ | Black-Oxide Steel | 0000000 | 00000 |
| 7/8", M22 | __ | Black-Oxide Steel | 0000000 | 00000 |
Morse Taper 4 | ||||
| __ | 1/2 | Black-Oxide Steel | 0000000 | 00000 |
| __ | 3/8 | Black-Oxide Steel | 0000000 | 00000 |
| __ | 3/4 | Black-Oxide Steel | 0000000 | 00000 |
| 3/4" | __ | Black-Oxide Steel | 0000000 | 00000 |
| 7/8", M22 | __ | Black-Oxide Steel | 0000000 | 00000 |
| 1", M25 | __ | Black-Oxide Steel | 0000000 | 00000 |
