Nonslip Unthreaded Bumpers
These nonslip bumpers protect equipment while minimizing the movement of objects that come in contact, making them good for positioning and robotic-gripping applications. All have an aluminum base plate that adds strength, but is flexible enough to bend around a curve. Made of Buna-N, these bumpers resist abrasion, oil, and grease. They can be used outdoors, and all have a medium-hard rating to withstand high levels of impact.
Smooth bumpers distribute gripping force evenly, which makes them good for applications involving motion, such as conveyor belts.
Fine criscross bumpers have better grip on irregular surfaces than smooth bumpers.
Crisscross bumpers have good grip on rough and irregular surfaces, even if there’s debris.
Drill-your-own hole/glue-on bumpers require contact adhesive or drilling your own holes and mounting them with screws.
For technical drawings and 3-D models, click on a part number.
| Lg. | Wd. | Ht. | Base Plate Thick. | Temp. Range, °F | For Use Outdoors | Hardness Rating | Hardness | Nonmarking | Color | Each | |
Buna-N Rubber with Aluminum Base Plate | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
Drill-Your-Own Hole/Glue On | |||||||||||
| 6" | 1 1/4" | 1/4" | 1/16" | -60° to 170° | Yes | Medium Hard | Durometer 60A | No | Black | 00000000 | 000000 |
| 6" | 1 1/4" | 1/2" | 1/16" | -60° to 170° | Yes | Medium Hard | Durometer 60A | No | Black | 00000000 | 00000 |
Textured
Surface
| Lg. | Wd. | Ht. | Base Plate Thick. | Temp. Range, °F | For Use Outdoors | Hardness Rating | Hardness | Nonmarking | Color | Each | |
Buna-N Rubber with Aluminum Base Plate | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
Drill-Your-Own Hole/Glue On | |||||||||||
| 6" | 1 1/4" | 1/4" | 1/16" | -60° to 170° | Yes | Medium Hard | Durometer 60A | No | Black | 0000000 | 000000 |
| 6" | 1 1/4" | 1/2" | 1/16" | -60° to 170° | Yes | Medium Hard | Durometer 60A | No | Black | 0000000 | 00000 |
| Lg. | Wd. | Ht. | Base Plate Thick. | Temp. Range, °F | For Use Outdoors | Hardness Rating | Hardness | Nonmarking | Color | Each | |
Buna-N Rubber with Aluminum Base Plate | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
Drill-Your-Own Hole/Glue On | |||||||||||
| 6" | 1 1/4" | 1/4" | 1/16" | -60° to 170° | Yes | Medium Hard | Durometer 60A | No | Black | 00000000 | 000000 |
| 6" | 1 1/4" | 1/2" | 1/16" | -60° to 170° | Yes | Medium Hard | Durometer 60A | No | Black | 00000000 | 00000 |

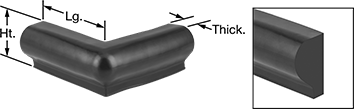

Angle Bumpers
These bumpers are at a 90° angle to protect corners on equipment, walls, and docks from damage caused by carts, vehicles, and other moving objects. All have a hard rating to withstand high levels of impact. They are nonmarring and can be used outdoors.
Drill-your-own hole bumpers mount with screws after drilling holes. They can also be nailed down.
Vinyl plastic bumpers resist solvents. UV-resistant bumpers won’t dry out and become brittle when exposed to UV rays.
For technical drawings and 3-D models, click on a part number.
| Lg. | Ht. | Thick. | Temp. Range, °F | For Use Outdoors | Hardness Rating | Hardness | Nonmarking | Color | Performance Properties | Each | ||
Drill-Your-Own Hole | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Vinyl Plastic | ||||||||||||
| 3 | 8" | 3 3/4" | 2 1/4" | 0° to 120° | Yes | Hard | Durometer 85A | Yes | White | __ | 0000000 | 000000 |
| 3 | 10" | 6" | 3" | 0° to 120° | Yes | Hard | Durometer 85A | Yes | White | __ | 0000000 | 00000 |
| 4 | 8 1/2" | 3 5/8" | 1 1/4" | 0° to 120° | Yes | Hard | Durometer 85A | Yes | White | UV Resistant | 00000000 | 00000 |
| 4 | 8 1/2" | 3 5/8" | 1 1/4" | 0° to 120° | Yes | Hard | Durometer 85A | Yes | Gray | UV Resistant | 00000000 | 00000 |
| 4 | 8 1/2" | 3 5/8" | 1 1/4" | 0° to 120° | Yes | Hard | Durometer 85A | Yes | Black | UV Resistant | 00000000 | 00000 |
