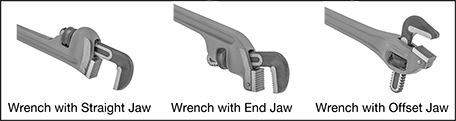

	For Wrench Jaw Style For Wrench Jaw Style

Straight

End

Offset

	Jaw Texture Jaw Texture


Serrated	Smooth

	DFARS (Defense Acquisition Regulations Supplement) DFARS (Defense Acquisition Regulations Supplement)

DFARS Specialty Metals
COTS-Exempt

	REACH (Registration, Evaluation, Authorization and Restriction of Chemicals) REACH (Registration, Evaluation, Authorization and Restriction of Chemicals)

REACH Compliant

	RoHS (Restriction of Hazardous Substances) RoHS (Restriction of Hazardous Substances)

RoHS Compliant

	Jaw Style Jaw Style


Round	Straight

Offset

	For Pipe OD For Pipe OD

	Wrench Style Wrench Style


Open End	Chain

	Maximum Jaw Capacity Maximum Jaw Capacity

1 1/4"

2 5/8"

	Jaw Width Jaw Width

3 1/8"

	Jaw Type Jaw Type

Fixed

Adjustable

	For Use With For Use With

Pipe

Round and Irregular Objects

Screws and Nuts

	For Maximum OD For Maximum OD

	For Handle Length For Handle Length

10"

20"

	Minimum Jaw Capacity Minimum Jaw Capacity

5/8"

1 1/8"

	Handle Length Handle Length

	Chain Length Chain Length

	Overall Length Overall Length

9 1/2"

14 1/2"

20"

	Chain Breaking Strength Chain Breaking Strength

	For Minimum OD For Minimum OD

75 Products

Heel Jaws for Pipe Wrenches

			Jaw
For Wrench Overall Lg.	For Wrench Jaw Style	For Manufacturer	Material	Texture	Includes		Each
6"	End, Straight	Ridgid	Steel	Serrated	Mounting Pin	00000000	00000
8"	End, Straight	Ridgid	Steel	Serrated	Mounting Pin	00000000	0000
10"	End, Straight	Ridgid	Steel	Serrated	Mounting Pin	00000000	00000
12", 14"	End, Offset, Straight	Ridgid	Steel	Serrated	Mounting Pin	00000000	00000
18"	End, Offset, Straight	Ridgid	Steel	Serrated	Mounting Pin	00000000	00000
24"	End, Offset, Straight	Ridgid	Steel	Serrated	Mounting Pin	00000000	00000
36"	End, Straight	Ridgid	Steel	Serrated	Mounting Pin	00000000	00000
48"	Straight	Ridgid	Steel	Serrated	Mounting Pin	00000000	00000
60"	Straight	Ridgid	Steel	Serrated	Mounting Pin	00000000	000000

Hook Jaws for Pipe Wrenches

For Wrenches with End or Straight Jaw

For Wrenches with Offset Jaw

			Jaw
For Wrench Overall Lg.	For Wrench Jaw Style	For Manufacturer	Material	Texture		Each
6"	End, Straight	Ridgid	Steel	Serrated	00000000	000000
8"	End, Straight	Ridgid	Steel	Serrated	00000000	00000
10"	End, Straight	Ridgid	Steel	Serrated	00000000	00000
12"	End, Straight	Ridgid	Steel	Serrated	00000000	00000
14"	End, Straight	Ridgid	Steel	Serrated	00000000	00000
14"	Offset	Ridgid	Steel	Serrated	00000000	00000
18"	End, Straight	Ridgid	Steel	Serrated	00000000	00000
18"	Offset	Ridgid	Steel	Serrated	00000000	00000
24"	End, Straight	Ridgid	Steel	Serrated	00000000	00000
24"	Offset	Ridgid	Steel	Serrated	00000000	00000
36"	End, Straight	Ridgid	Steel	Serrated	00000000	000000
48"	Straight	Ridgid	Steel	Serrated	00000000	000000
60"	Straight	Ridgid	Steel	Serrated	00000000	000000

Nuts for Pipe Wrenches

For Wrench Overall Lg.	For Wrench Jaw Style	For Manufacturer		Each
6"	End, Straight	Ridgid	00000000	00000
8"	End, Straight	Ridgid	00000000	0000
9 1/2", 10"	End, Straight	Ridgid	00000000	0000
12"	End, Straight	Ridgid	00000000	0000
14"	End, Offset, Straight	Ridgid	00000000	0000
14 1/2", 18"	End, Offset, Straight	Ridgid	00000000	00000
20", 24"	End, Offset, Straight	Ridgid	00000000	00000
36"	End, Straight	Ridgid	00000000	00000
48"	Straight	Ridgid	00000000	00000
60"	Straight	Ridgid	00000000	00000

Springs for Pipe Wrenches

Coil and Flat Spring

Flat Spring

For Wrench Overall Lg.	For Wrench Jaw Style	For Manufacturer	Includes		Each
6"	End, Straight	Ridgid	Coil and Flat Spring	00000000	00000
8"	End, Straight	Ridgid	Coil and Flat Spring	00000000	0000
10"	End, Straight	Ridgid	Coil and Flat Spring	00000000	0000
12"	End, Straight	Ridgid	Coil and Flat Spring	00000000	0000
14"	End, Straight	Ridgid	Coil and Flat Spring	00000000	0000
14"	Offset	Ridgid	Flat Spring	00000000	0000
18"	End, Straight	Ridgid	Coil and Flat Spring	00000000	00000
18"	Offset	Ridgid	Flat Spring	00000000	00000
24"	End, Straight	Ridgid	Coil and Flat Spring	00000000	00000
24"	Offset	Ridgid	Flat Spring	00000000	00000
36"	End, Straight	Ridgid	Coil and Flat Spring	00000000	00000
48"	Straight	Ridgid	Coil and Flat Spring	00000000	00000
60"	Straight	Ridgid	Coil and Flat Spring	00000000	00000

Round-Grip Nonmarring Pipe Wrenches

Jaw and Handle Sold Separately

Build your own pipe wrench by pairing a handle and jaw to grip most round surfaces, even highly polished objects. Push down on the wrench and pull the handle toward you—the jaws will tighten around the workpiece.

Jaws

	Jaw
For Handle Lg.	Wd.	Material	Texture	Style	Type	For Pipe OD		Each
10"	2"	Steel	Smooth	Round	Fixed	1", 1 1/16", 1 1/8", 1 1/4", 1 5/16"	0000000	0000000
20"	3 1/8"	Steel	Smooth	Round	Fixed	1 1/4", 1 1/2", 1 3/4", 1 7/8", 2", 2 1/8"	0000000	000000

Heavy Duty Adjustable Wrenches

Straight Jaw

Offset Jaw

Replacement Jaw

Replacement Nut

These tools have the heavy duty handle and adjustment mechanism of a pipe wrench and the smooth jaws of a traditional adjustable wrench.

Wrench with offset jaw has an extra-wide opening for securing sink and tub drain nuts.

Wrenches
	Jaw							Replacement Jaws		Replacement Nuts
Overall Lg.	Min. Capacity	Max. Capacity	Material	Texture	Specifications Met		Each		Each		Each
Red-Painted Iron
Straight Jaw
14 1/2"	5/8"	1 1/4"	Steel	Smooth	__	0000000	000000	00000000	000000	00000000	000000
20"	1"	2"	Steel	Smooth	__	0000000	000000	00000000	00000	00000000	00000
Offset Jaw
9 1/2"	1 1/8"	2 5/8"	Steel	Smooth	Fed. Spec. GGG-W-651e	0000000	00000	00000000	00000	00000000	0000

Chain Wrenches

Iron Handle

Hold and turn pipe, tubing, and conduit with these heavy duty wrenches.

Wrenches
	Handle		Chain						Replacement Chain		Replacement Jaws
For OD	Lg.	Material	Lg.	Breaking Strength, lbs.	Material	Specifications Met		Each		Each		Each
3/8"-4 9/16"	14"	Iron	17"	6,500	Steel	__	0000000	000000	0000000	000000	0000000	000000
9/16"-5"	18"	Iron	18"	12,100	Steel	__	0000000	000000	0000000	00000	0000000	00000
9/16"-5 3/4"	24"	Iron	21"	12,100	Steel	__	0000000	000000	0000000	00000	0000000	00000
13/16"-7 1/16"	33"	Iron	27"	17,750	Steel	Fed. Spec. GGG-W-651e	0000000	000000	0000000	00000	0000000	000000
1 5/16"-8 1/2"	44"	Iron	31"	24,500	Steel	Fed. Spec. GGG-W-651e	0000000	000000	0000000	000000	0000000	000000
1 7/8"-10 15/16"	46"	Iron	40"	27,000	Steel	Fed. Spec. GGG-W-651e	0000000	000000	0000000	000000	0000000	000000
2 7/8"-12 15/16"	46"	Iron	48"	35,000	Steel	__	0000000	00000000	0000000	000000	0000000	000000
2 7/8"-17 15/16"	46"	Iron	72"	35,000	Steel	Fed. Spec. GGG-W-651e	0000000	00000000	0000000	000000	0000000	000000
