    High-Pressure Sight

    for Clear Liquid, Nickel-Plated Steel, 2 NPT Male

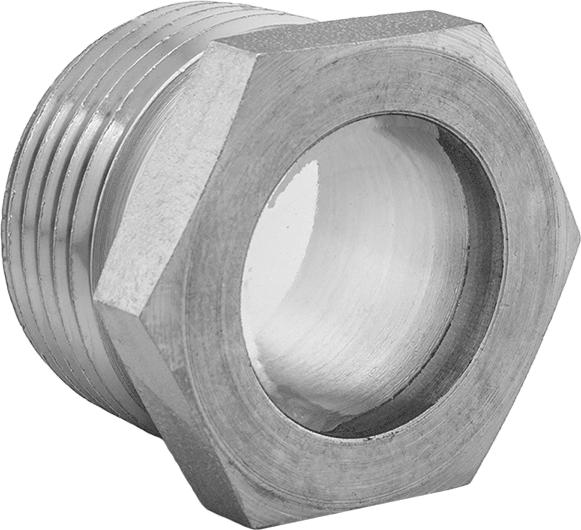

    Image of Product. Front orientation. High-Pressure Sight, for Clear Liquid, Nickel-Plated Steel, 2 NPT Male.

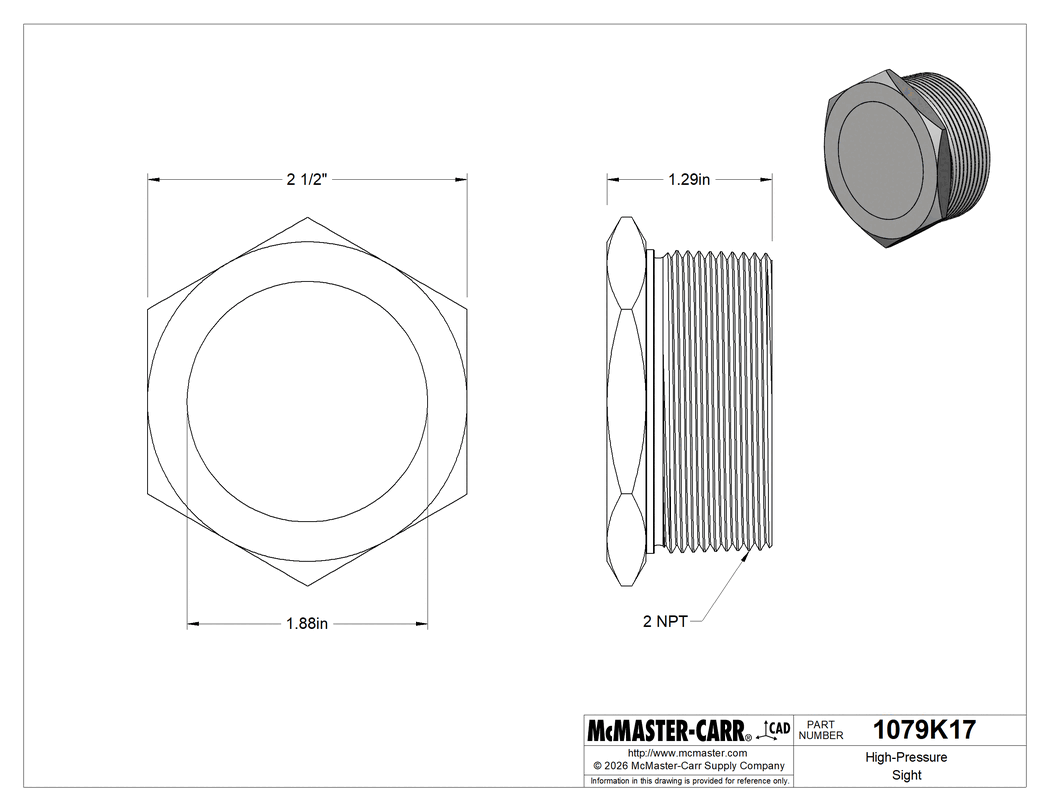

    Technical Drawing of High-Pressure Sight, for Clear Liquid, Nickel-Plated Steel, 2 NPT Male.
    2-D PDF
    000000 each
    1079K17
    In stock
    1079K17
    000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Material

    Nickel-Plated Steel

    Window

    Diameter

    1 7/8"

    Material

    Glass

    Thread Type

    NPT

    Gender

    Male

    Features

    Fused Window

    For Liquid Appearance

    Clear

    Pipe Size

    2

    Hex Size

    2 1/2"

    Maximum Pressure @ Temperature

    500 psi @ 70° F

    Temperature Range

    -40° F to 500° F

    For Use With

    Water, Hydraulic Fluid, Diesel Fuel

    Connection

    Connects To

    Pipe

    Fitting Connection

    Threaded

    Mount Type

    Screw In

    Performance

    High Pressure

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    Not Compliant

    RoHS Compliance

    Not Compliant

    Schedule B Number

    702000.9000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    With a thick glass window fused to a metal body, these sights resist cracking at high pressures.

    The information in this 3-D model is provided for reference only.
