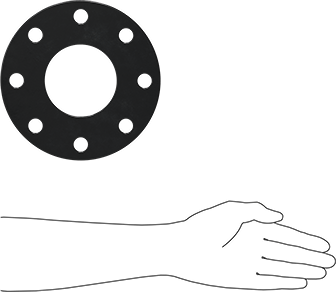

Water- and Steam-Resistant EPDM Gasket
with Bolt Holes for Dn 80 Flange Size, 1/8" Thick

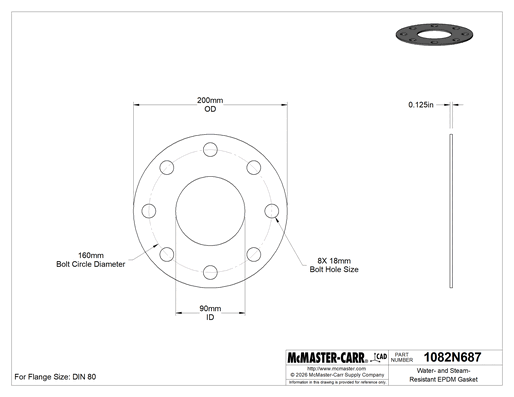

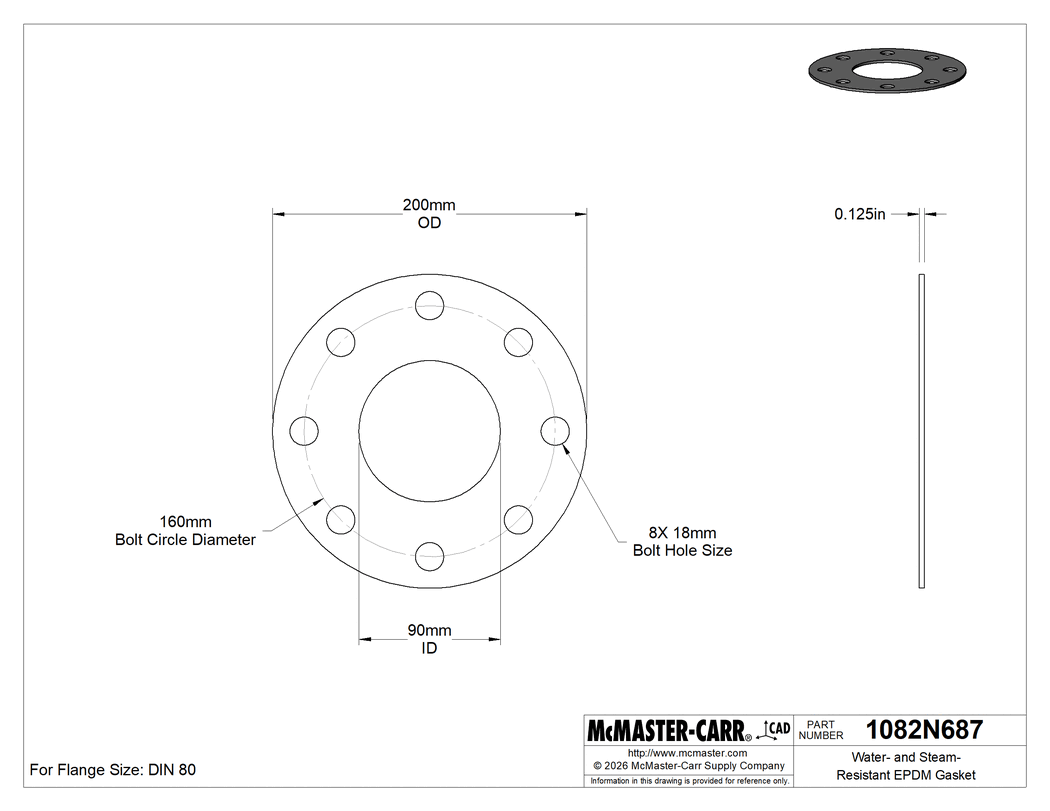

2-D PDF
00000 each
1082N687
In stock
1082N687
00000 each
Each
Select a compatible file type: Parasolid
Available for Solidworks 2017 or newer.
Backing Type | Plain |
For Flange Standard | DN |
Thickness | 1/8" |
For DN Size | 80 |
ID | 90 mm |
OD | 200 mm |
Number of Bolt Holes | 8 |
Maximum Pressure | 800 psi |
Temperature Range | -20° F to 220° F |
Hardness | Durometer 60A (Medium Hard) |
Color | Black |
Material | EPDM |
Performance | Steam Resistant, Water Resistant |
PN Pressure Rating | PN16 |
Shape | Ring with Bolt Holes |
Country of Origin | China, United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 401693.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |

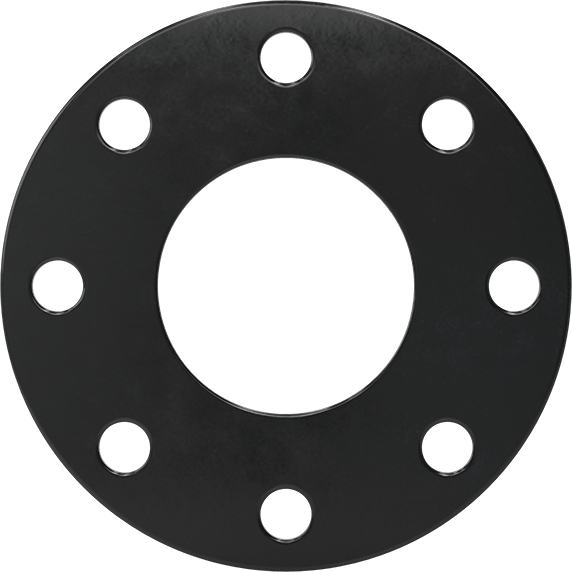

Made of EPDM, these gaskets resist water, steam, and salt water. Commonly called full-face gaskets, they cover the entire face of flat-surface pipe flanges and align with the bolt holes.
For DN Flanges—Gaskets for DN flange sizes are sized to fit pressure class PN16 flanges.
The information in this 3-D model is provided for reference only.
