    Rigid Grease-Dispensing Tip Extension

    7.5" Long

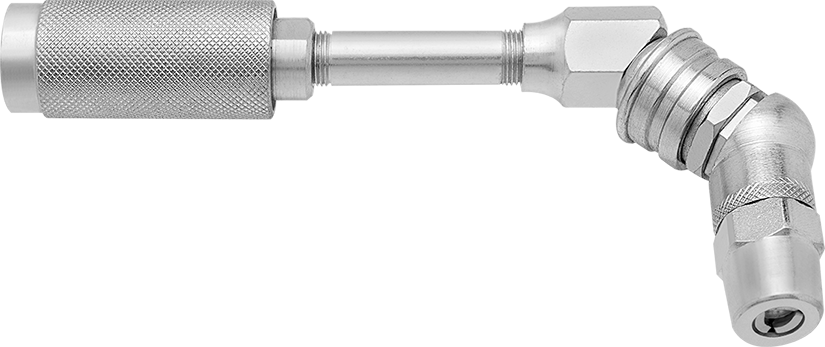

    Image of Product. Front orientation. Rigid Grease-Dispensing Tip Extension, 7.5" Long.

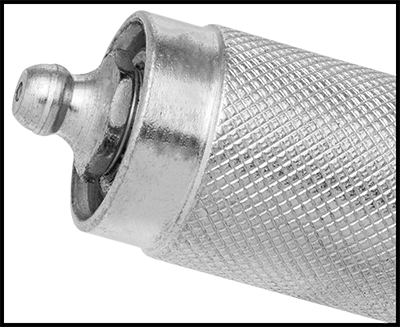

    Image of Specification. Spring Collar Shown Retracted. Front orientation. ZoomedIn view. Contains Border. Rigid Grease-Dispensing Tip Extension, 7.5" Long.
    Spring Collar Shown Retracted
    Image of Specification. Front orientation. Contains Annotated. Rigid Grease-Dispensing Tip Extension, 7.5" Long.
    000000 each
    1090K44
    In stock
    1090K44
    000000 each
    Each
    In stock
    For Grease Fitting Style

    Standard

    Style

    D

    Dispensing Tip Extension

    Length

    7 1/2"

    Flexibility

    Rigid

    Style

    90° Angle

    Material

    Steel

    Maximum Grease Outlet Pressure

    7,500 psi

    Features

    Spring Collar, 360° Rotation

    Application

    Dispensing

    Component

    Dispensing Tip Extension

    Fitting Connection

    Quick Disconnect

    For Lubrication Point Type

    With Grease Fitting

    For Use With

    Grease

    Country of Origin

    India

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    Not Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant with Exemptions

    RoHS Exemptions

    6(a)

    Schedule B Number

    820790.7570

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Lubricate standard grease fittings in hard-to-reach areas. Extensions have a quick-disconnect fitting that snaps into your dispensing tip for standard grease fittings.

    Style D—Style D has a spring collar that automatically slides over the dispensing tip so extensions don't wobble while connected. It rotates 360° for positioning and locks in place at any 45° angle.
