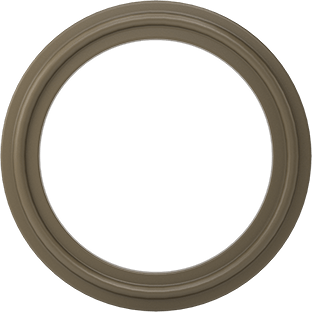

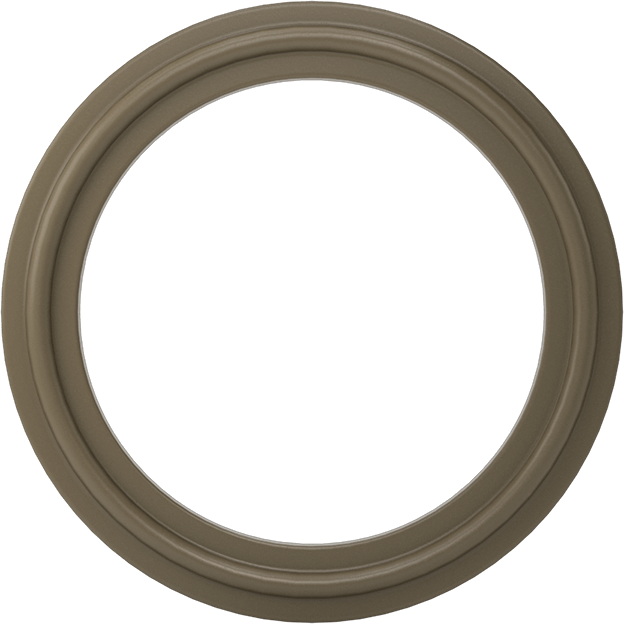

Metal-Detectable Gasket
for Quick-Clamp Fittings, PTFE, for 2" Tube OD
For Tube OD | 2" |
ID | 1.9" |
OD | 2.52" |
Thickness | 0.203" |
Maximum Pressure | Not Rated |
Temperature Range | -325° F to 550° F |
Hardness | Durometer 68D |
Hardness Rating | Extra Hard |
Color | Gray |
Food Industry Standard | 3-A Certified 20-27, FDA Compliant 21 CFR 177.1550 |
Environment | Food and Beverage, Sanitary |
Material | 316 Stainless Steel/PTFE |
Performance | Metal Detectable, Ultra Chemical Resistant |
Shape | Ring |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (06/14/2023, 235 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 392690.4500 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
If a piece wears off, fragments as small as 1 mm can be picked up by a metal-detection system to prevent contamination of your process line. These gaskets are made from a blend of PTFE and stainless steel, which is chemically inert (except to molten alkali metal and elemental fluorine). The construction also allows them to maintain their strength in steam and hot oil applications.

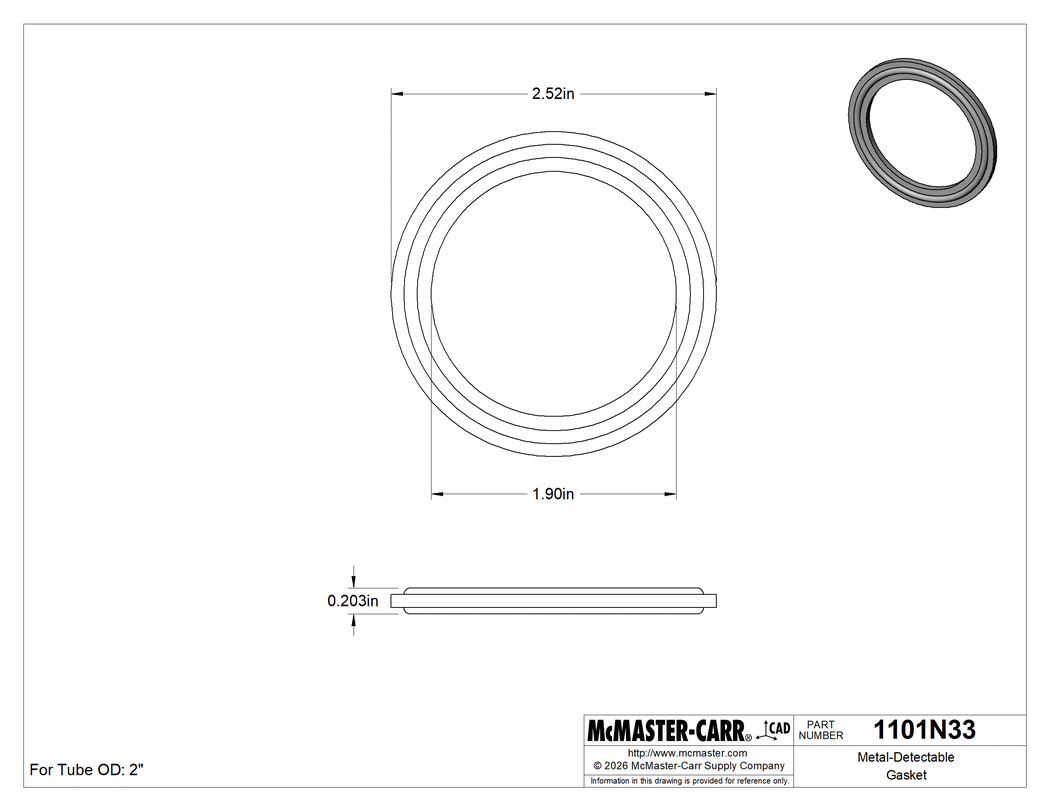

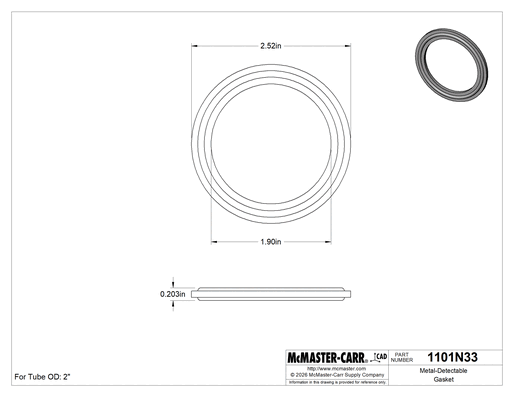

The information in this 3-D model is provided for reference only.
