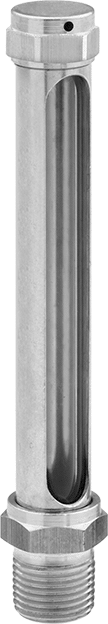

Oil-Level Indicator
Brass Straight, 1/2 NPTF Male, 9-7/16" Overall Height
Material | Brass |
Shape | Straight |
Pipe Size | 1/2 |
Thread Type | NPTF |
Gender | Male |
Overall Height | 9 7/16" |
Window Height | 7 1/2" |
Maximum Pressure @ Temperature | Not Rated |
Temperature Range | -40° F to 250° F |
Window Material | Glass |
Features | Vent |
Connects To | Pipe |
Fitting Connection | Threaded |
For Use With | Hydraulic Fluid, Oil |
Gauge Shield Rotation | 360° |
Mount Type | Screw In |
Seal Material | Buna-N |
Vent | |
Connection Port | Pipe |
Connection | Threaded |
Thread Size | 3/4"-27 |
Thread Type | UNS |
Gender | Female |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | Not Compliant |
Schedule B Number | 902610.7000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Related Product |
Monitor hydraulic fluid or oil level in gear boxes, crank cases, and other reservoirs. These indicators mount from the outside of your tank. The gauge shield, which protects the indicator from impact, rotates 360° for optimal viewing. Use these indicators in nonpressure applications. All have a vent to prevent pressure from building up and causing an inaccurate level to display. You can also unthread the vent and replace it with your own vent, plug, fitting, or sensor.

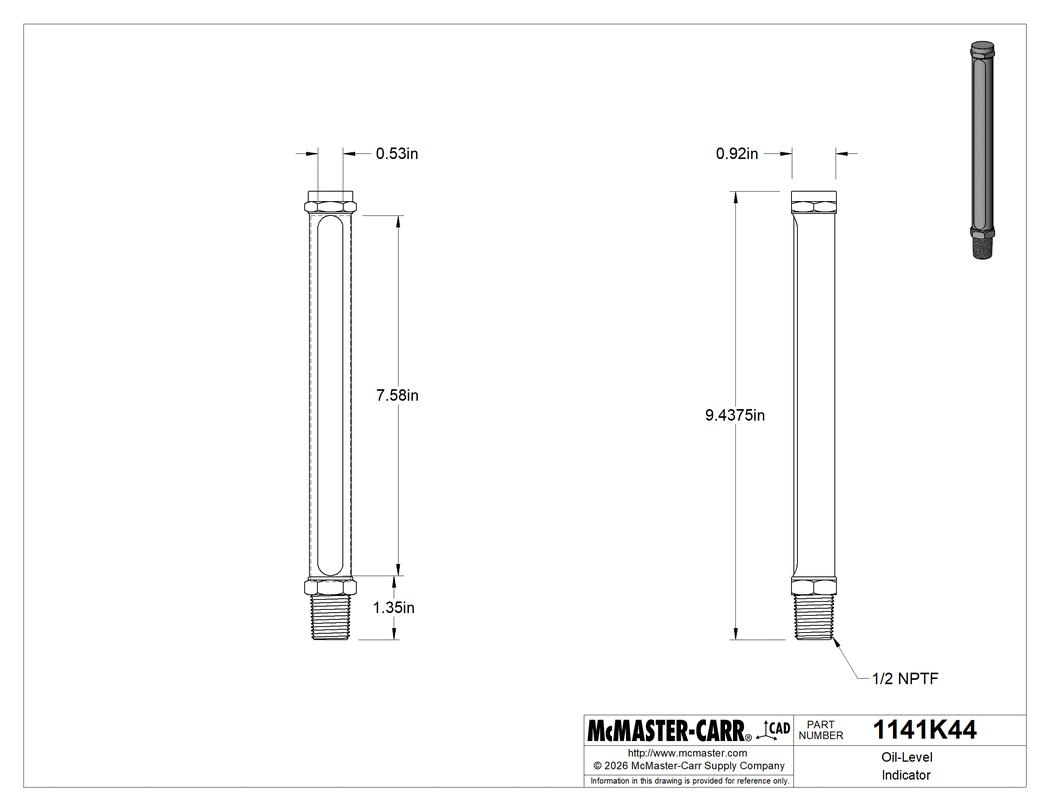

The information in this 3-D model is provided for reference only.
