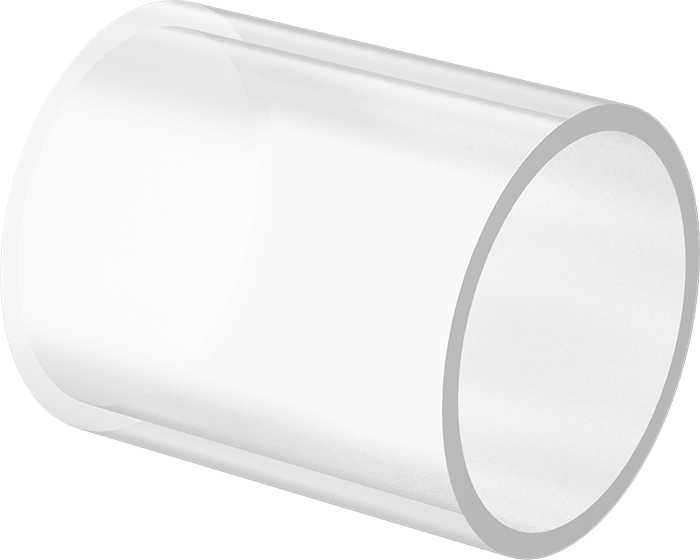

Pressure-Rated Borosilicate Glass Tube
5-1/2" OD, 5" ID, 7" Long

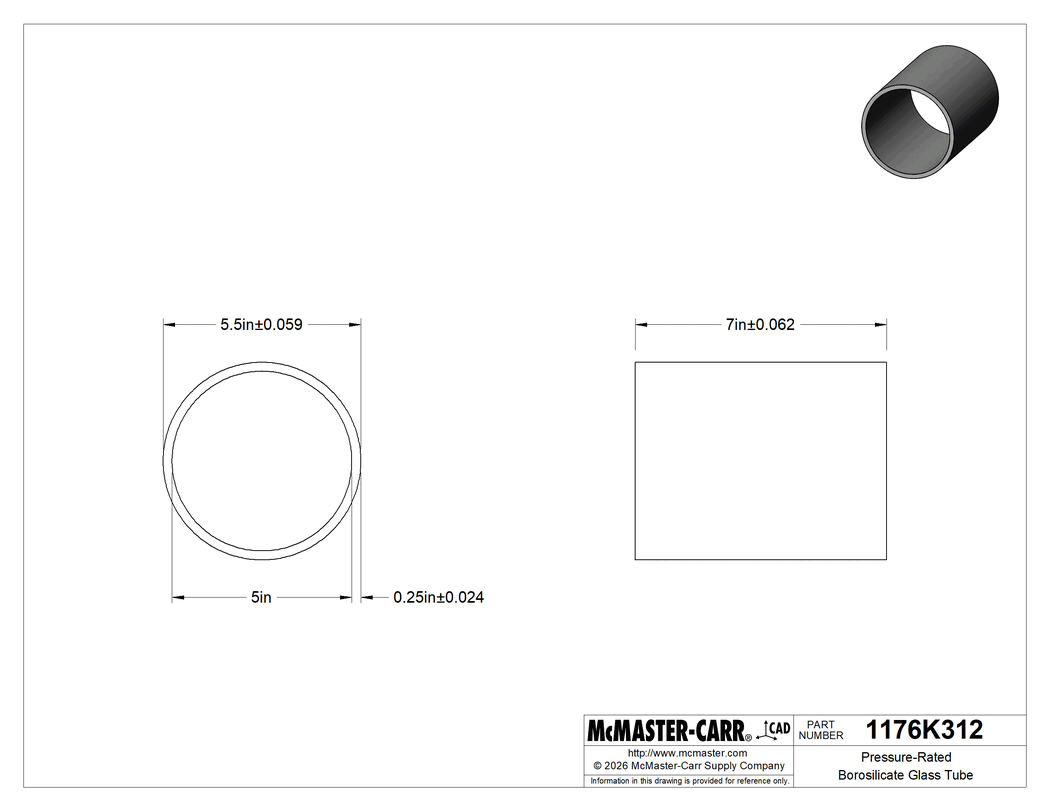

2-D PDF
0000000 each
1176K312
In stock
1176K312
0000000 each
Each
Select a compatible file type: Parasolid
Available for Solidworks 2017 or newer.
Fabrication | Annealed |
OD | 5 1/2" |
OD Tolerance | -0.059" to 0.059" |
ID | 5" |
Wall Thickness | 1/4" |
Wall Thickness Tolerance | -0.024" to 0.024" |
Length | 7" |
Length Tolerance | -0.062" to 0.062" |
Edge Fabrication | Ground |
Maximum Pressure | 35 psi |
Temperature | |
Minimum | Not Rated |
Maximum | 100° F |
Color | Clear |
Clarity | Clear |
Coefficient of Thermal Expansion | 1.81 × 10^-6 /°F |
Density | 0.08 lb/in³ |
Material | Borosilicate Glass |
Hardness | Knoop 418 HK 0.1 |
Material Composition | |
Aluminum Oxide | 1% to 8% |
Boron Trioxide | 1% to 20% |
Potassium Oxide | 0% to 8% |
Silicon Dioxide | 70% to 87% |
Sodium Oxide | 0% to 15% |
Modulus of Elasticity | 63 kN/mm² |
Performance | Pressure Rated |
Refractive Index | 1.47 |
Shape | Round Tube |
Thermal Conductivity @ Temperature | 8.3 BTU⋅in/(hr⋅ft²⋅°F) @ 212° F |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 700232.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
These short glass tubes can be used as glass bowls in oil dispensers. Borosilicate glass resists clouding and pitting and is highly chemical resistant. With a low rate of thermal expansion, it stays dimensionally stable during changes in temperature.
The information in this 3-D model is provided for reference only.
