    High-Noise-Reducing Muffler

    with Aluminum Fitting, 3/4 Pipe Connection

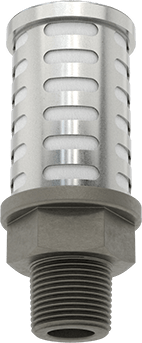

    Image of Product. Top orientation. High-Noise-Reducing Muffler, with Aluminum Fitting, 3/4 Pipe Connection.

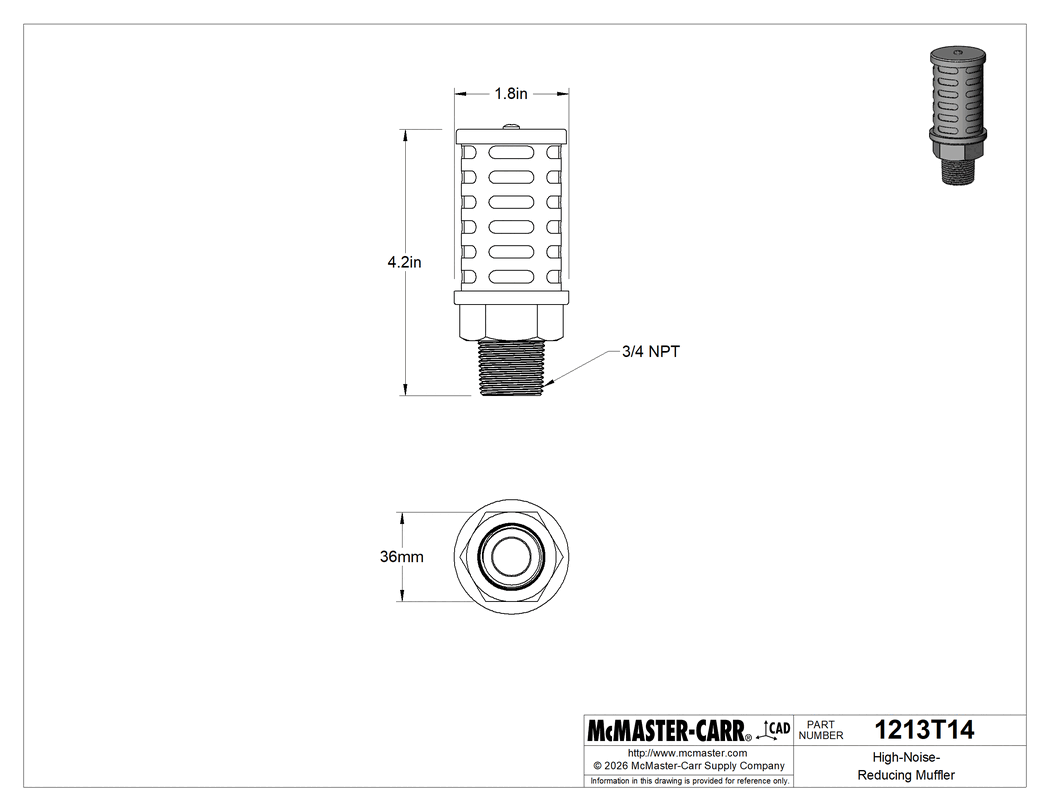

    Technical Drawing of High-Noise-Reducing Muffler, with Aluminum Fitting, 3/4 Pipe Connection.

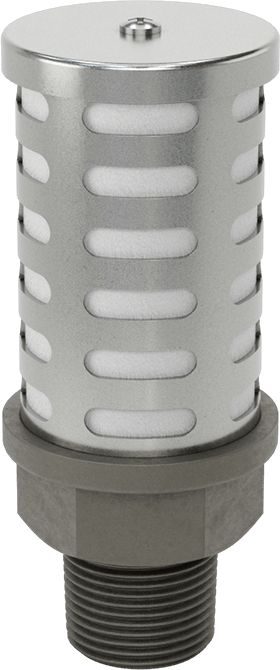

    Image of Product. Top orientation. High-Noise-Reducing Muffler, with Aluminum Fitting, 3/4 Pipe Connection.
    Image of Product. Side1 orientation. Contains SizingReference. High-Noise-Reducing Muffler, with Aluminum Fitting, 3/4 Pipe Connection.
    2-D PDF
    000000 each
    1213T14
    In stock
    1213T14
    000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Connects To

    Pipe

    Thread Type

    NPT

    Gender

    Male

    Material

    Body

    Steel

    Fitting

    Aluminum

    Filter

    Plastic

    Pipe Size

    3/4

    Maximum Flow Rate @ Pressure

    423 scfm @ 72 psi

    Maximum Pressure

    145 psi

    Maximum Temperature

    140° F

    Height

    4 1/4"

    Diameter

    1 13/16"

    For Use With

    Air

    Removes Particle Size Down To

    Not Rated

    Noise Reduction Rating

    30 dB

    Drive Style

    External Hex

    Fitting Connection

    Threaded

    For Reducing

    Noise, Particles

    Hex Size

    1 7/16"

    Country of Origin

    Japan

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    Not Compliant

    RoHS Compliance

    Not Compliant

    Schedule B Number

    842139.0190

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Install these mufflers in air-powered drills and other loud equipment. They filter exhaust fumes and reduce noise by 30 dB, a reduction that's equivalent to putting in earplugs.

    Mufflers with Pipe Connection—Mufflers with pipe connections thread into NPT or metric threaded exhaust ports.
