    Symbol Drafting Stencil

    for 3/32" to 1" Triangles and Diamonds

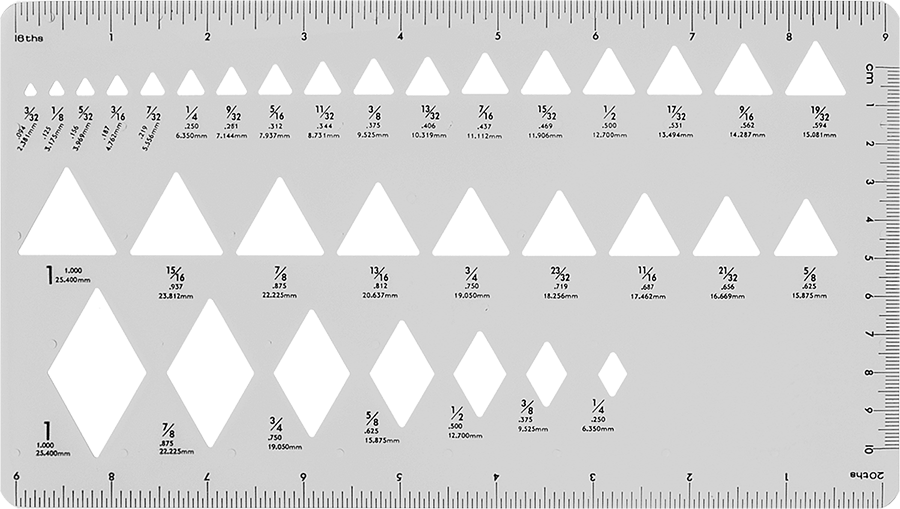

    Image of Product. Front orientation. Symbol Drafting Stencil, for 3/32" to 1" Triangles and Diamonds.
    000000 each
    1244T75
    In stock
    1244T75
    000000 each
    Each
    In stock
    Stencil Type

    Symbol

    Application

    Drafting

    System of Measurement

    Inch

    Symbol

    Diamond, Triangle

    Shape Size

    3/32" to 1"

    Number of Shapes

    33

    Overall

    Length

    9 3/8"

    Width

    5 1/4"

    Material

    Plastic

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    901720.8060

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    Trace symbols such as circles, polygons, arrows, and ellipses.
