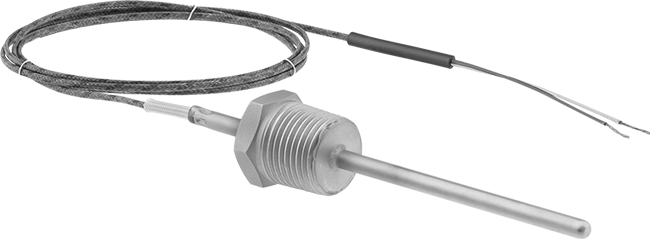

Threaded Thermocouple Probe for Liquids and Gases
Wire Leads, Type K, 1/2 NPT Male, 6" Long, 900 Degree F Maximum
Component | Probe with Cable |
Thermocouple Sensor Connection | Wire Leads |
Thermocouple Type | K |
Probe Connection | |
Pipe Size | 1/2 |
Thread Type | NPT |
Gender | Male |
Probe | |
Length | 6" |
Diameter | 3/16" |
Movement | Fixed |
Response Time | 1 sec. |
Maximum Temperature | 900° F |
Accuracy @ Temperature | Not Rated Below 32° F |
Material | |
Fitting | 303 Stainless Steel |
Probe | 304 Stainless Steel |
Insulation | Noninsulated |
Sensor Type | Grounded |
Cable | |
Length | 4 ft. |
Material | Fiberglass |
Maximum Temperature | 900° F |
Style | Straight |
Wire Lead | |
Length | 3" |
American Wire Gauge (AWG) | 24 |
For Use With | Liquids, Solids, Gas |
Maximum Pressure @ Temperature | Not Rated |
Mount Type | Threaded |
Country of Origin | Mexico |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/17/2023, 233 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 902519.8080 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
For easy installation in thermowells, tanks, pipes, and other closed vessels, these probes have a male NPT fitting. They’re stainless steel, so they won’t corrode as they measure the temperature of liquids and gases. The stainless steel acts as a shield if they’re hit or bumped, so they’re also safe to use with solids, such as molds and dies. The fitting is welded on, so you can’t adjust the probe’s length.
Pick the thermocouple type that best covers the temperature range you expect your liquid or gas to be in. You should also make sure the thermocouple type you choose is compatible with the device you plan to connect it to. These probes are often used with temperature controllers, thermometers, and other temperature-reading devices.
These probes are manufactured to conform to ASTM E230 for accuracy. Accuracy is how far off the reported value is from the actual temperature.
Wire-Lead Thermocouple Connection—Probes with wire leads can be wired to a terminal block or attached to a thermocouple connector. For installation, note that the red wire is negative.

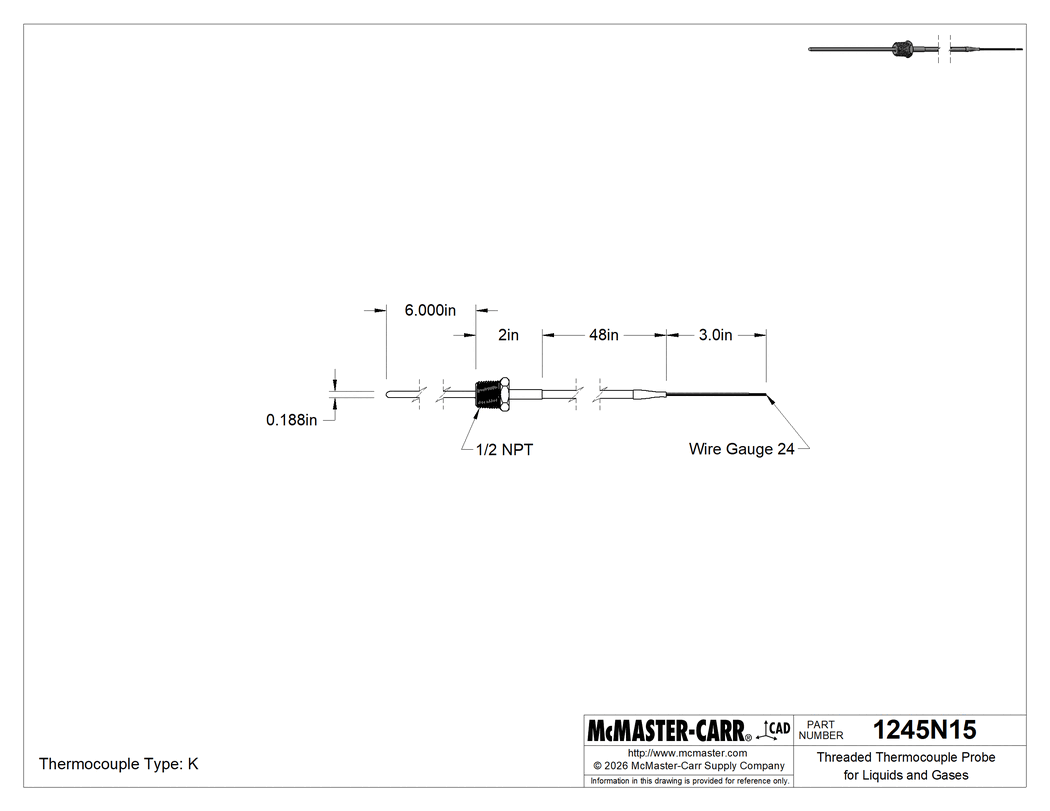

The information in this 3-D model is provided for reference only.
