    Corrosion-Resistant Timing Belt Pulley

    XL Series, NO Hub, 3/8" Maximum Width, 1.312" OD, 1/2" Shaft

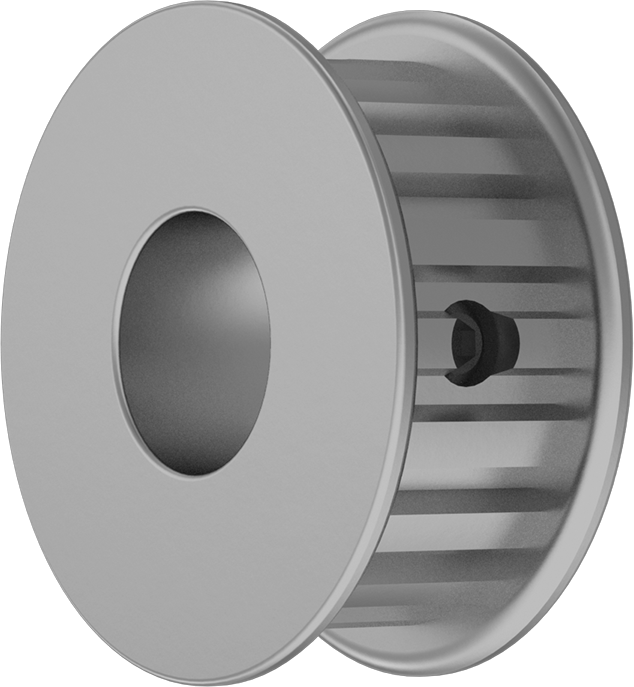

    Image of Product. Front orientation. Corrosion-Resistant Timing Belt Pulley, XL Series, NO Hub, 3/8" Maximum Width, 1.312" OD, 1/2" Shaft.

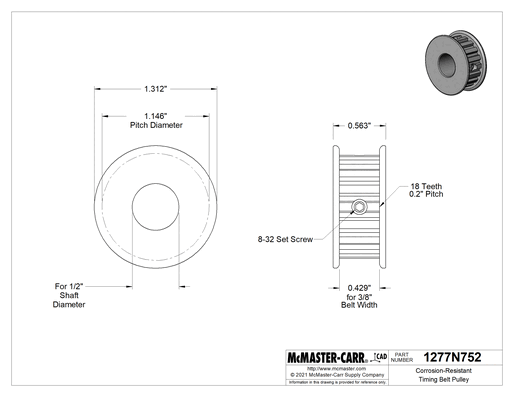

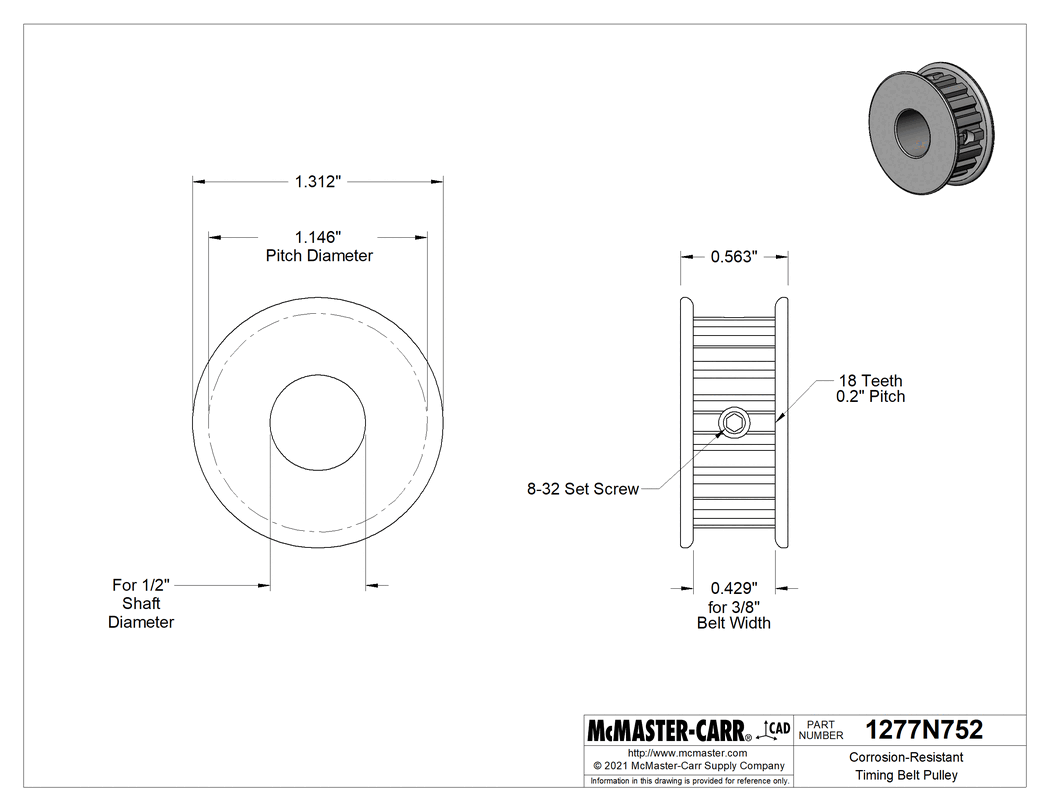

    Technical Drawing of Corrosion-Resistant Timing Belt Pulley, XL Series, NO Hub, 3/8" Maximum Width, 1.312" OD, 1/2" Shaft.

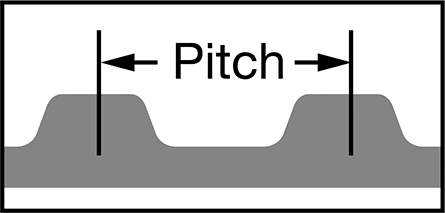

    Image of Attribute. Front orientation. Contains Annotated, Border. Corrosion-Resistant Timing Belt Pulley, XL Series, NO Hub, 3/8" Maximum Width, 1.312" OD, 1/2" Shaft.
    Image of Attribute. Without Hub—Two Flanges. Front orientation. Contains Annotated. Corrosion-Resistant Timing Belt Pulley, XL Series, NO Hub, 3/8" Maximum Width, 1.312" OD, 1/2" Shaft.
    Without Hub—Two Flanges
    2-D PDF
    000000 each
    1277N752
    In stock
    1277N752
    000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Tooth Profile

    Trapezoidal

    For Belt Trade Size

    XL

    Material

    Aluminum

    For Maximum Belt Width

    3/8"

    Pitch

    0.200"

    Number of Teeth

    18

    Bore Type

    Finished

    For Shaft Diameter

    1/2"

    Pitch Diameter

    1.146"

    Number of Flanges

    2

    Hub Type

    Flush

    Belt Type

    Timing

    Fabrication

    Machined

    Finish

    Anodized

    For Shaft Type

    Round

    Inside Width

    0.429"

    OD

    1 5/16"

    Outside Width

    0.563"

    Overall Width

    0.563"

    Performance

    Corrosion Resistant, Lightweight

    Pulley Type

    Drive

    Shaft Mount Type

    Set Screw

    System of Measurement

    Inch

    Country of Origin

    China

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (01/17/2023, 233 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    848350.8030

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Keep your drive system in sync. Trapezoidal teeth mesh with matching belts to synchronize motion. With the original tooth profile, these pulleys handle enough torque for most applications. If you need high torque or precise starts and stops, consider curved tooth profiles, such as GT and HTD pulleys.

    Corrosion-Resistant Aluminum—Won't rust in wet environments and one-third the weight of steel and iron. However, aluminum pulleys are not as strong as iron and steel.

    Finished Bore—Mount these pulleys onto the shaft and secure with a set screw—no machining required.

    Flush Hub—Ideal in tight spots where a raised hub would get in the way.

    The information in this 3-D model is provided for reference only.
