    Roof Hatch Railing

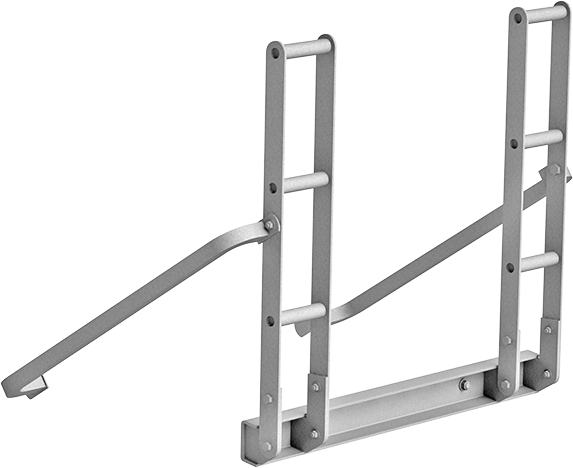

    Image of Product. Front orientation. Roof Hatch Railing.

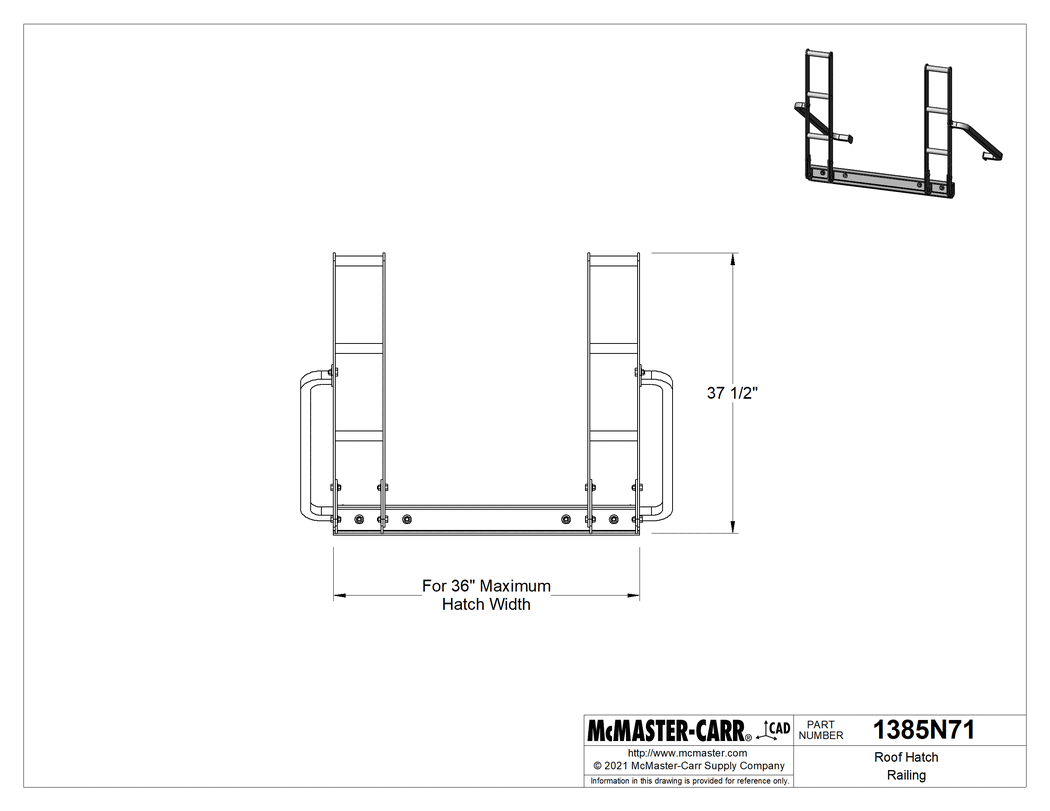

    Technical Drawing of Roof Hatch Railing.

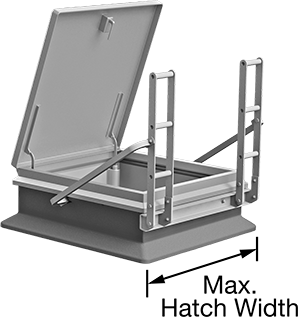

    Image of ProductInUse. Front orientation. Contains Annotated. Roof Hatch Railing.
    2-D PDF
    0000000 each
    1385N71
    In stock
    1385N71
    0000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    For Maximum Hatch Width

    36"

    Height

    37 1/2"

    Material

    Powder-Coated Steel

    Color

    Gray

    Mounting Hardware

    Mounting Fasteners Included

    Mounting Holes

    Number of

    4

    Diameter

    3/8"

    Mounting Plate Length

    3"

    Mounting Plate Width

    3"

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (06/27/2024, 241 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    730890.9090

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    Provide a place to grip when passing through a roof hatch.

    Railing includes side rails and ladder that mount to an existing roof hatch.

    The information in this 3-D model is provided for reference only.
