    Disposable Canister for Hydraulic Oil Filter

    Screw-on, 98.7% Efficiency @ 3 Microns, 10-3/4" High

    Image of Product. Front orientation. Disposable Canister for Hydraulic Oil Filter, Screw-on, 98.7% Efficiency @ 3 Microns, 10-3/4" High.

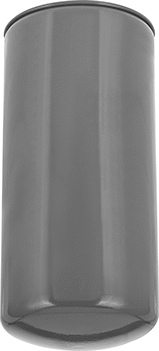

    Image of Product. Bottom orientation. Disposable Canister for Hydraulic Oil Filter, Screw-on, 98.7% Efficiency @ 3 Microns, 10-3/4" High.

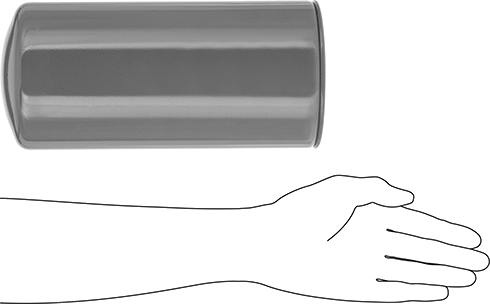

    Image of Product. Side1 orientation. Contains SizingReference. Disposable Canister for Hydraulic Oil Filter, Screw-on, 98.7% Efficiency @ 3 Microns, 10-3/4" High.
    0000000 each
    1413N16
    In stock
    1413N16
    0000000 each
    Each
    In stock
    For Reducing

    Particles

    Media Material

    Fiberglass

    Hydac Equivalent Model No.

    0180MA003BN

    Parker Equivalent Model No.

    932073

    Pall Equivalent Model No.

    HC7500SKP8H

    Filter Efficiency

    98.7%

    Removes Particle Size Down To

    3 μm

    Maximum Flow Rate

    27 gpm

    Thread

    Size

    1 1/2"-16

    Type

    UN/UNF (SAE Straight)

    Gender

    Female

    Canister Material

    Steel

    Maximum Temperature

    225° F

    Beta Ratio

    75

    Construction

    Pleated

    For ISO Cleanliness Standard

    Not Rated

    For Use With

    Hydraulic Fluid

    Height

    10 3/4"

    O-Ring Material

    Buna-N

    OD

    5 1/8"

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    Not Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    842199.0180

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Also known as spin-on canisters, thread these cartridges directly onto the filter head. UN/UNF (SAE Straight) thread connections have straight threads and are also known as O-ring Boss fittings.

    Fiberglass Media—Cartridges with fiberglass media trap and hold more particles than paper cartridges, extending their life.
