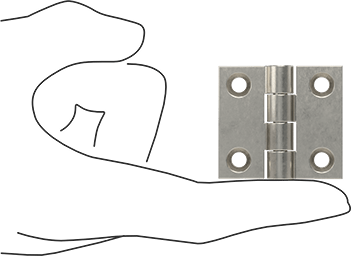

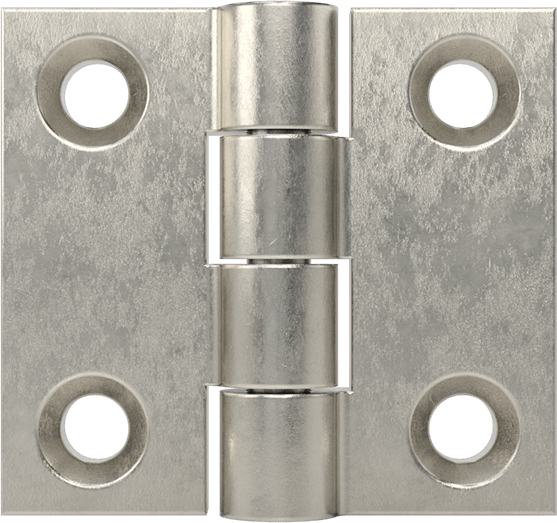

Surface-Mount Hinge with Holes
Nonremovable Pin, 316 Stainless Steel, 1-1/2" x 13/16" Door Leaf
Mounting Location | Surface |
Material | 316 Stainless Steel |
Pin Type | Nonremovable |
Door Leaf | |
Height | 1 1/2" |
Width | 13/16" |
Frame Leaf | |
Height | 1 1/2" |
Width | 13/16" |
Overall Width | 1 5/8" |
Leaf Thickness | 0.187" |
Range of Motion | 270° |
Pin Material | 316 Stainless Steel |
Appearance | Polished |
Mounting Holes | |
Holes | With Holes |
Number of | 4 |
Fasteners Included | No |
Screw Size | No. 10 |
Style | Countersunk |
Door Mounting Location | Left Side, Right Side |
For Door Type | Cabinet, Chest, Enclosure, Gate, Hatch |
Hinge Type | Butt |
Mount Type | Screw On |
Opening/Closing Action | Open/Close Freely |
Pin Diameter | 3/16" |
Weight Capacity | Not Rated |
Country of Origin | Thailand |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 830210.4090 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Our most widely used hinges are ready to mount to doors and frames. Since they don’t need a cutout, they’re easier to install than mortise hinges.
316 Stainless Steel—Our most corrosion-resistant stainless steel hinges won't degrade when exposed to harsh weather, salt water, and most chemicals.
Nonremovable Pin—The tamper-resistant choice. Since the pin can’t be removed, the door can only be taken down by removing the hinge completely.

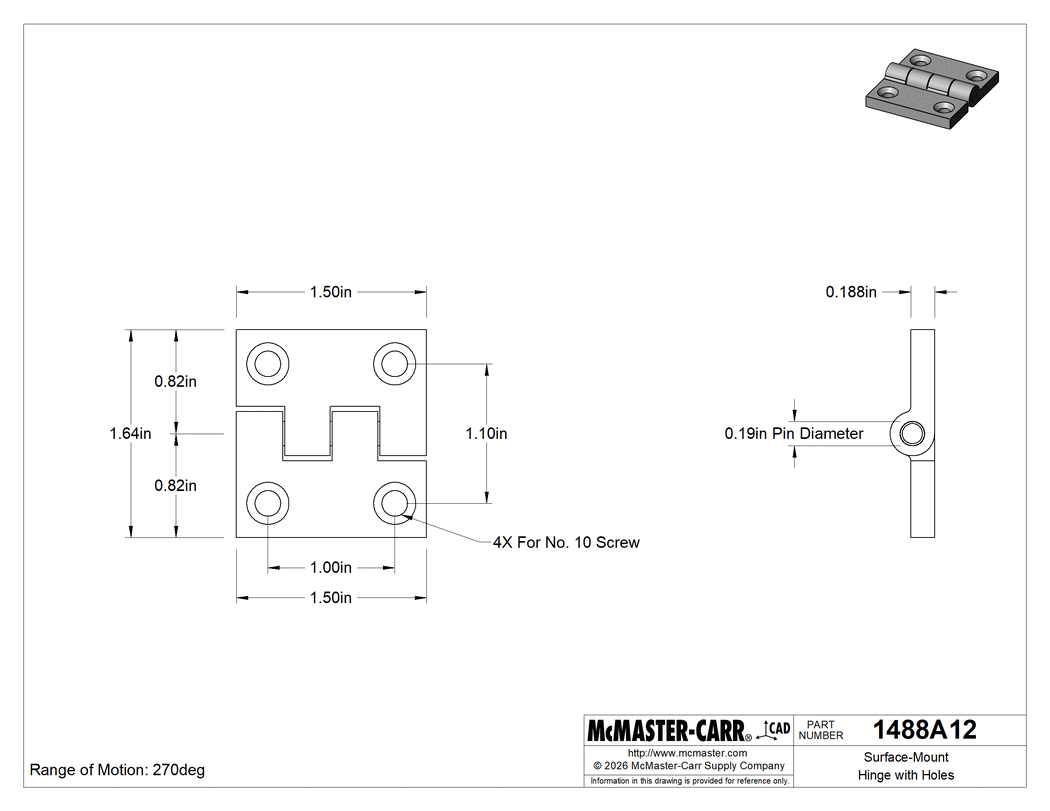

The information in this 3-D model is provided for reference only.
