    Brass Pressure Test Fitting

    1/4 NPT Male x 3/8"-24 UNF Male

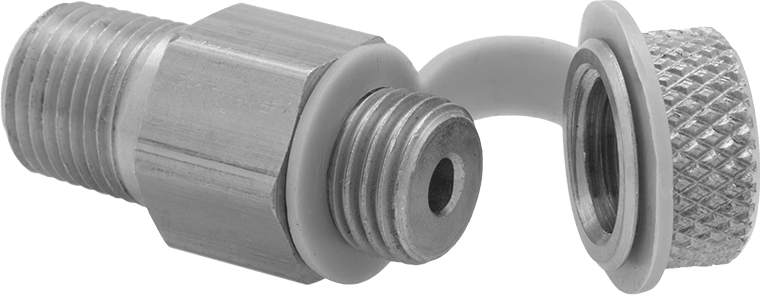

    Image of Product. Brass. Front orientation. Brass Pressure Test Fitting, 1/4 NPT Male x 3/8"-24 UNF Male.
    00000 each
    1493K12
    In stock
    1493K12
    00000 each
    Each
    In stock
    Connection

    NPT Male × UNF Male Plug

    Material

    Brass

    Pipe Size

    1/4

    Thread Size

    3/8"-24

    Maximum Pressure

    1,000 psi

    Gasket Material

    EPDM

    Height

    7/16"

    For Use With

    Air, Water

    Connects To

    Pipe

    Fitting Connection

    Threaded

    Shape

    Straight

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    Not Compliant

    RoHS Compliance

    Not Compliant

    Schedule B Number

    902690.0000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    Related Product

    Gauge Adapters

    Check pressure without permanently installing a gauge. Fittings have an NPT male connection for installation in your pipe or tank. Wrench-tighten the fitting onto your equipment, then insert the gauge adapter (sold separately) into the fitting. Connect gauge adapters to gauges with 1/4 pipe size NPT male threads.
