    Threaded Locating Pin

    1/4" Diameter x 7/16" High Diamond Head, 1/4"-20 Thread

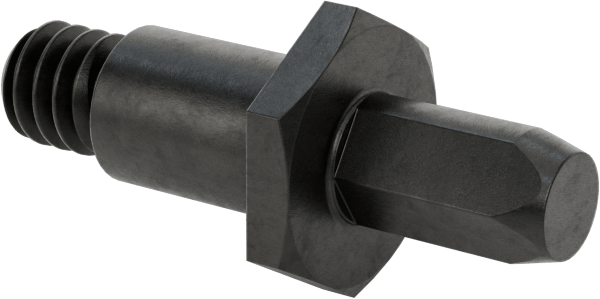

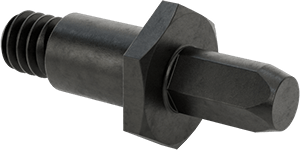

    Image of Product. Front orientation. Threaded Locating Pin, 1/4" Diameter x 7/16" High Diamond Head, 1/4"-20 Thread.

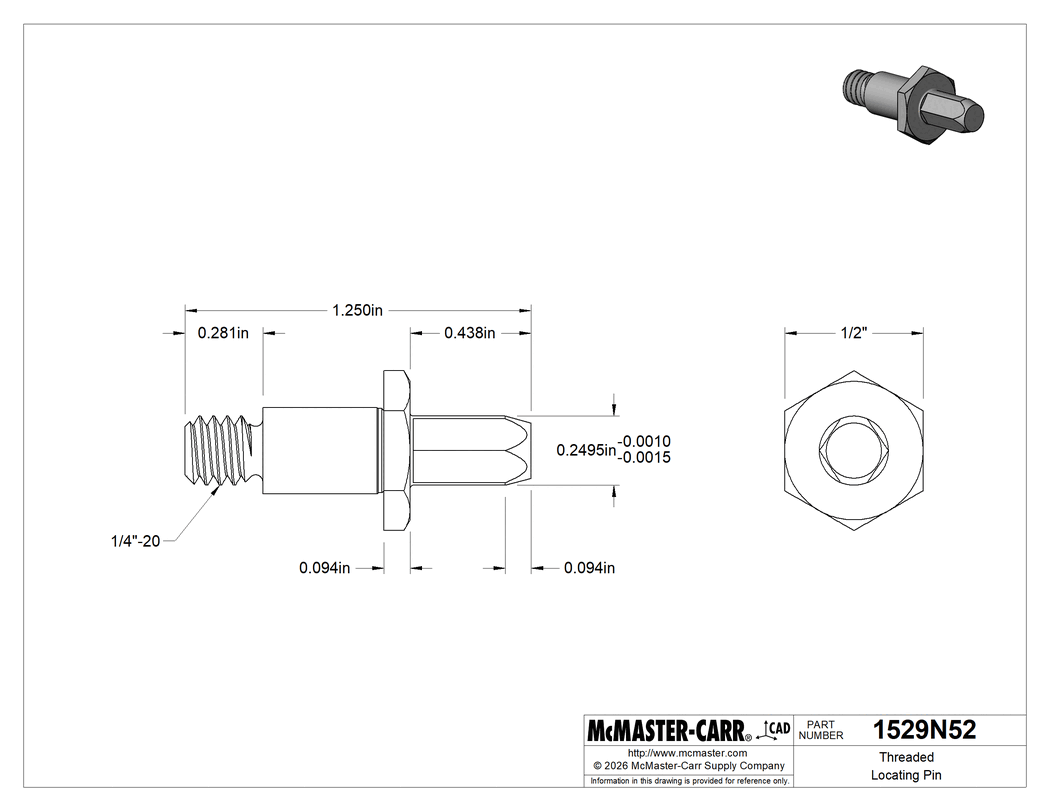

    Technical Drawing of Threaded Locating Pin, 1/4" Diameter x 7/16" High Diamond Head, 1/4"-20 Thread.

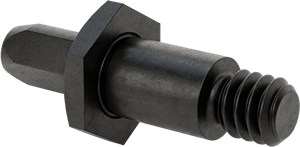

    Image of Product. Back orientation. Threaded Locating Pin, 1/4" Diameter x 7/16" High Diamond Head, 1/4"-20 Thread.

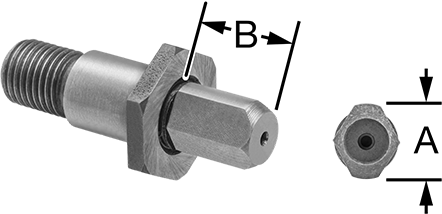

    Image of Product. Front orientation. Contains Annotated, MultipleImages. Threaded Locating Pin, 1/4" Diameter x 7/16" High Diamond Head, 1/4"-20 Thread.

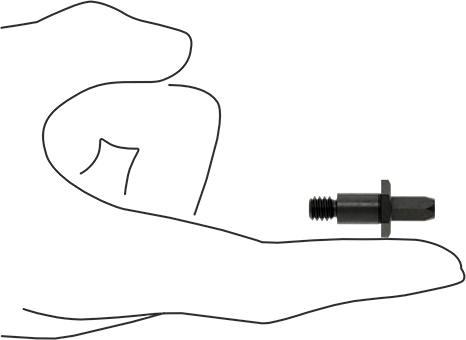

    Image of Product. Side1 orientation. Contains SizingReference. Threaded Locating Pin, 1/4" Diameter x 7/16" High Diamond Head, 1/4"-20 Thread.
    2-D PDF
    000000 each
    1529N52
    In stock
    1529N52
    000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Material

    Steel

    Locating Pin Head Type

    Diamond

    Head

    Diameter (A)

    1/4"

    Height (B)

    7/16"

    End Height

    3/32"

    Thread

    Size

    1/4"-20

    Length

    5/16"

    Shoulder Height

    3/32"

    Overall Height

    1 1/4"

    Head Diameter Tolerance

    -0.0015" to -0.001"

    Hardness

    Rockwell C48 to Rockwell C55

    Installation Permanence

    Removable

    Mount Type

    Threaded Stud

    System of Measurement

    Inch

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    846620.8065

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    Screw the shank into a threaded hole for quick installation and removal. Mate these pins with holes in workpieces for precise alignment.

    Diamond Head—Diamond-head pins make less contact with the inside of a hole than round-head pins to reduce sticking and jamming.

    The information in this 3-D model is provided for reference only.
