    Numbered Plate

    with Letters, 304 Stainless Steel, 5/8" High x 2-1/2" Wide

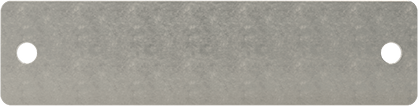

    Image of Product. Front orientation. Numbered Plate, with Letters, 304 Stainless Steel, 5/8" High x 2-1/2" Wide.

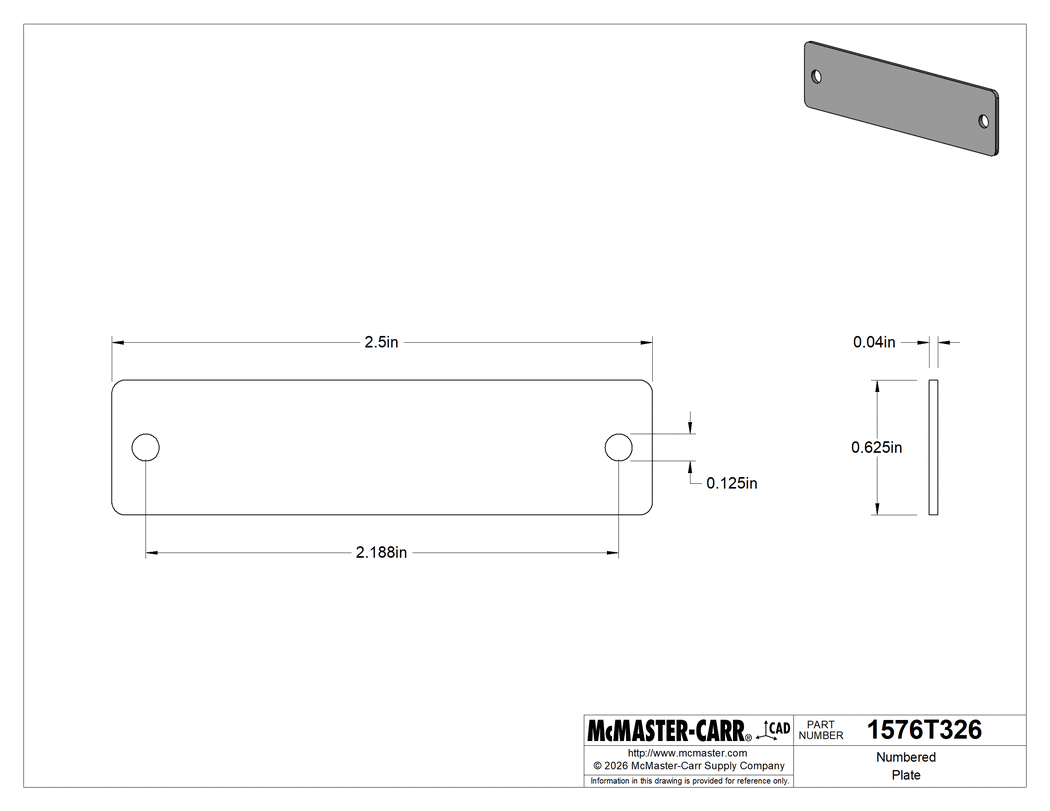

    Technical Drawing of Numbered Plate, with Letters, 304 Stainless Steel, 5/8" High x 2-1/2" Wide.

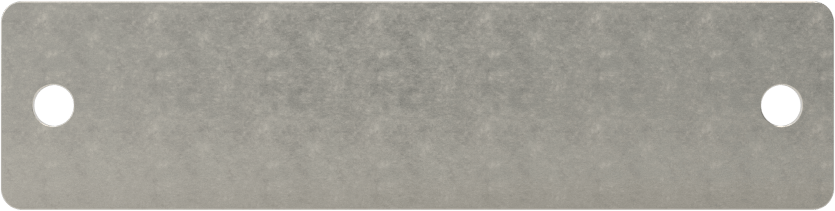

    Image of Product. Side1 orientation. Contains SizingReference. Numbered Plate, with Letters, 304 Stainless Steel, 5/8" High x 2-1/2" Wide.
    2-D PDF
    00000 each
    1576T326
    Please specify message (three lines maximum, up to 10 characters per line, including spaces).
    Ships in 1-2 weeks
    Please specify message (three lines maximum, up to 10 characters per line, including spaces).
    1576T326
    1-49 each00000
    50 or more00000
    Each
    Ships in 1-2 weeks
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Material

    304 Stainless Steel

    Style

    B

    Shape

    Rectangle

    Height

    5/8"

    Width

    2 1/2"

    Thickness

    0.04"

    Message Color

    Black

    Maximum Temperature

    2,000° F

    Mounting Holes

    Number of

    2

    Diameter

    1/8"

    Center-to-Center

    2 1/4"

    Character

    Made-to-Order

    Character Finish

    Enamel Coated

    Language

    English, Spanish, English/Spanish

    Message

    Identical Letters, Identical Numbers, Made-to-Order

    Message Contains

    Text

    Message Type

    Identification, Made-to-Order

    Mount Type

    Mounting Hole

    Visibility

    Standard

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    Not Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    831000.0000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    Specify a message to label equipment or parts in a facility (up to three lines, 10 characters per line, including spaces). Provide a color where applicable. The largest character size will be used, up to 1/2" high.

    304 Stainless Steel—304 stainless steel message plates resist corrosion better than aluminum and brass message plates.

    The information in this 3-D model is provided for reference only.
