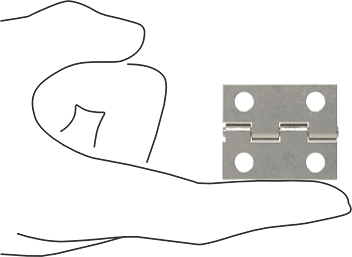

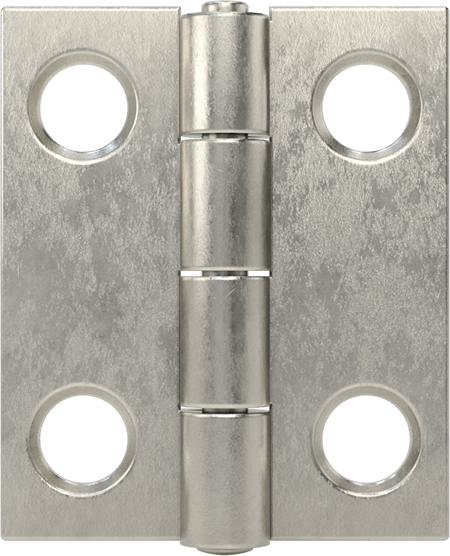

Surface-Mount Hinge with Holes
Polished 304 Stainless Steel, Nonremovable Pin, 1.5" x 5/8" Leaves
Mounting Location | Surface |
Material | 304 Stainless Steel |
Pin Type | Nonremovable |
Door Leaf | |
Height | 1 1/2" |
Width | 5/8" |
Frame Leaf | |
Height | 1 1/2" |
Width | 5/8" |
Overall Width | 1 1/4" |
Leaf Thickness | 0.060" |
Range of Motion | 270° |
Pin Material | 304 Stainless Steel |
Appearance | Polished |
Mounting Holes | |
Holes | With Holes |
Number of | 4 |
Fasteners Included | No |
Screw Size | No. 8 |
Style | Countersunk |
Door Mounting Location | Left Side, Right Side |
For Door Type | Cabinet, Chest, Enclosure, Gate, Hatch |
Hinge Type | Butt |
Mount Type | Screw On |
Opening/Closing Action | Open/Close Freely |
Pin Diameter | 1/8" |
Weight Capacity | Not Rated |
Country of Origin | China |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 830210.4030 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Our most widely used hinges are ready to mount to doors and frames. Since they don’t need a cutout, they’re easier to install than mortise hinges.
304 Stainless Steel—The choice for wet and outdoor environments, these hinges resist rust. However, they won't hold up to the harsh chemicals that 316 stainless steel hinges can.
Nonremovable Pin—The tamper-resistant choice. Since the pin can’t be removed, the door can only be taken down by removing the hinge completely.

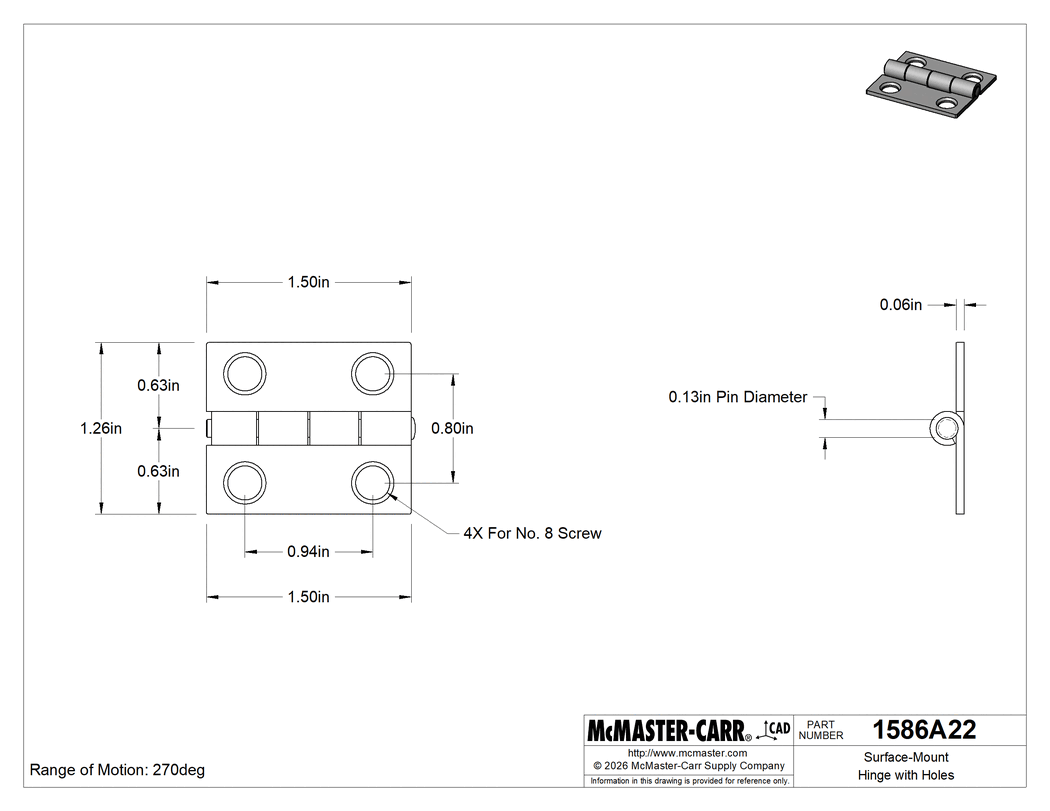

The information in this 3-D model is provided for reference only.
