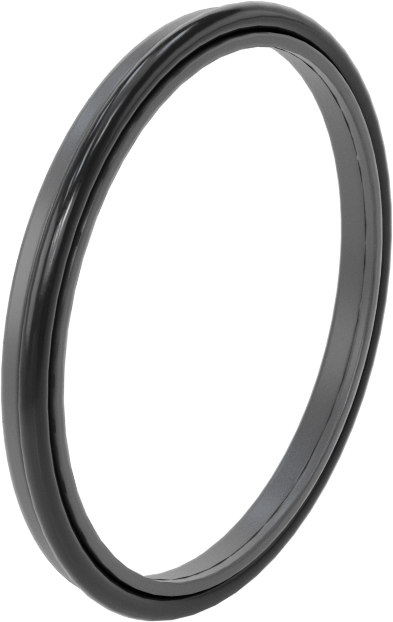

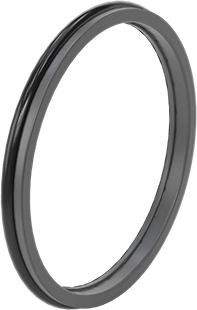

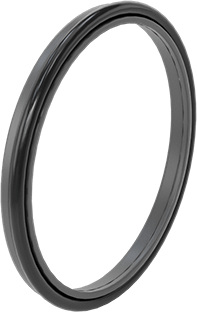

High-Speed Rod Wiper
for 2" Rod Diameter
For Sealing | Rods |
Performance | High Speed |
For Groove Type | Closed |
Filler Material | Molybdenum Disulfide |
Material | PTFE |
O-Ring | |
Material | Buna-N |
Hardness | Durometer 70A (Hard) |
Color | Black |
For Rod Diameter | 2" |
For Groove | |
Diameter | 2.268" |
Shoulder Diameter | 2.060" |
Width | 0.201" |
Maximum Speed | 13 ft/sec |
Temperature Range | -30° F to 230° F |
Hardness | Durometer 60D (Extra Hard) |
Color | Gray |
Cylinder Seal Type | Rod Wiper |
Environment | Food and Beverage |
For Cylinder Type | Hydraulic, Air Powered |
For Shaft Motion | Reciprocating |
For Use With | Acetic Acid (White Vinegar) |
Loaded Type | O-Ring |
Maximum Pressure | Not Rated |
Seal | |
ID | 1.970" |
OD | 2.202" |
Width | 0.176" |
System of Measurement | Inch |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 846630.8000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Made from Molybdenum Disulfide-filled PTFE for a slippery surface, these wipers allow rods to move three times faster than other rod wipers.

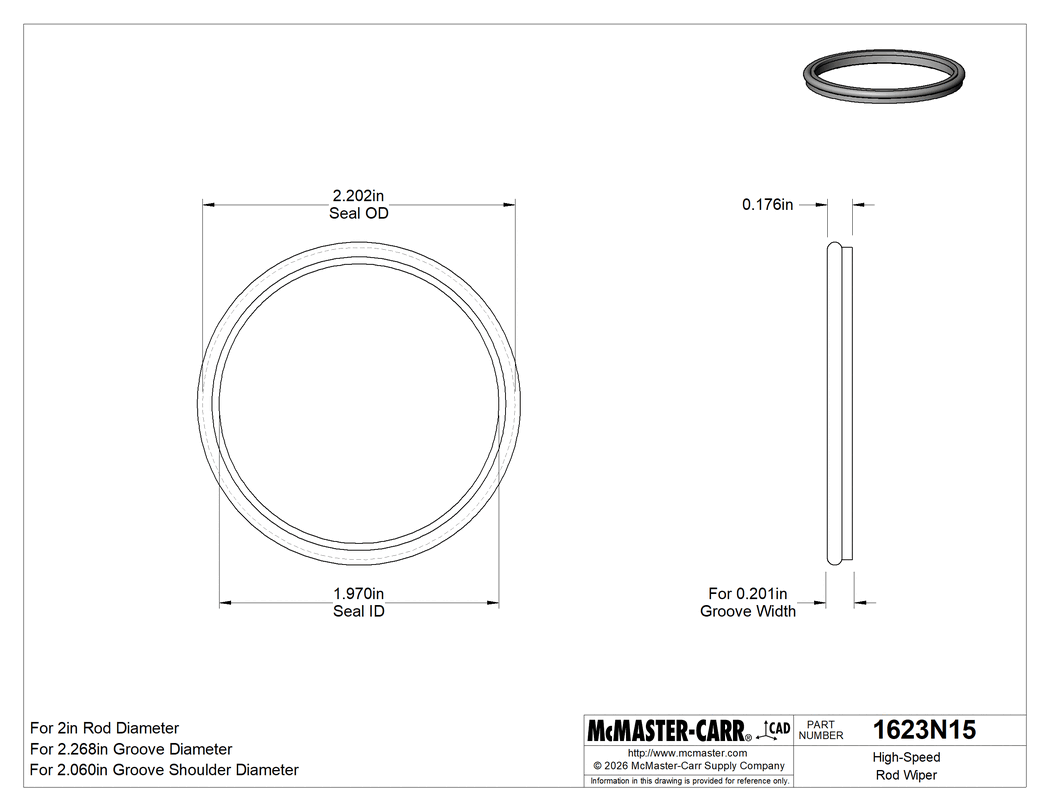

The information in this 3-D model is provided for reference only.
