Duct Size 6 Steel 45 Degree Elbow Connector for Quick-Disconnect Duct

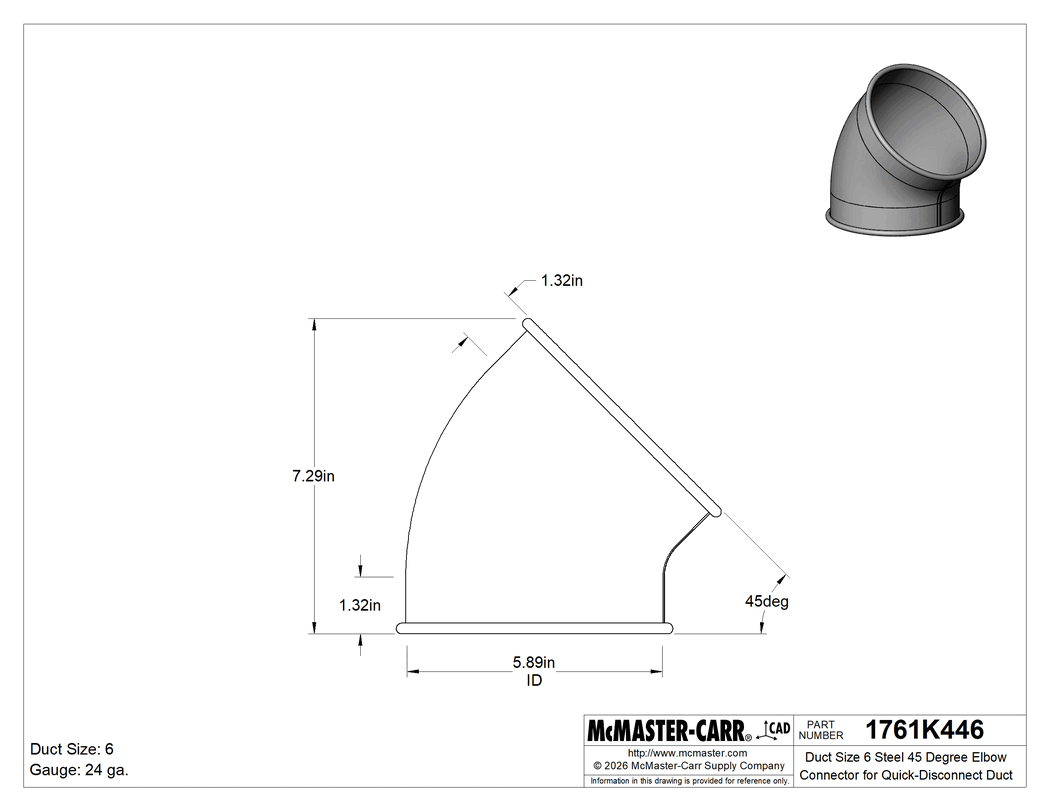

Technical Drawing of Duct Size 6 Steel 45 Degree Elbow Connector for Quick-Disconnect Duct.

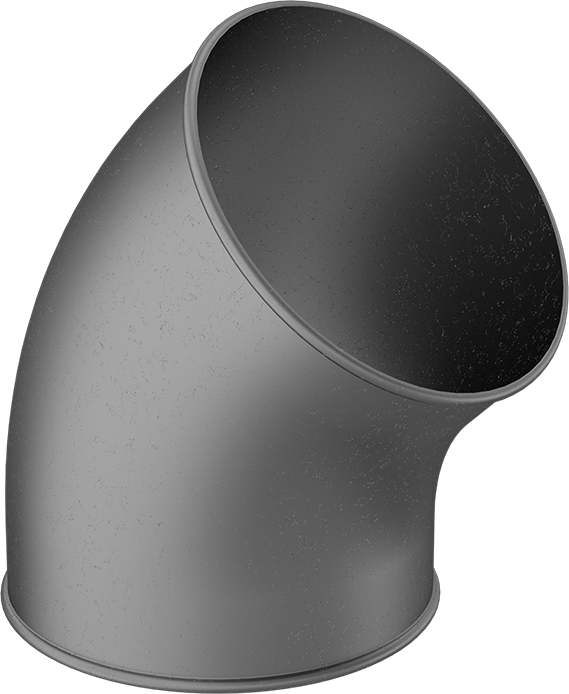

Image of ProductInUse. Front orientation. CrossSection view. Contains Annotated. Duct Size 6 Steel 45 Degree Elbow Connector for Quick-Disconnect Duct.

2-D PDF

000000 each

1761K446

In stock

1761K446

000000 each

QuantityEach

In stock

Select a compatible file type: Parasolid

Streamline your design process with our Solidworks Add-In

Available for Solidworks 2017 or newer.

Duct Type	Clamp Together
Shape	45° Elbow
Component	Connector
Material	Galvanized Steel
Duct Size	6
ID	5 7/8"
Gauge	24
End Construction	Rolled
Fitting Connection	Quick-Disconnect Clamp
For Duct Profile	Round
Performance	Quick Disconnect, Corrosion Resistant
Country of Origin	United States
DFARS Compliance	Specialty Metals COTS-Exempt
Export Control Classification Number (ECCN)	EAR99
REACH Compliance	Not Compliant
RoHS Compliance	RoHS 3 (2015/863/EU) Compliant
Schedule B Number	732690.8695
U.S.–Mexico–Canada Agreement (USMCA) Qualifying	Yes

The fastest ductwork to disassemble for dust collection and other frequently cleaned systems. Join sections with quick-release clamps that open and close with a flip of the latch. Since you don’t need screws, welds, or tools, the installation time is half that of other duct types.

45° Elbow Connectors—Change the direction of airflow when joining lengths of duct.

Galvanized Steel—Corrosion resistant and affordable, galvanized steel is the most commonly used ductwork material.
