    Miniature Medium-Pressure Aluminum Pipe Fitting

    Straight Adapter, M8 x 1 mm Thread Female, 1/8 NPT Male

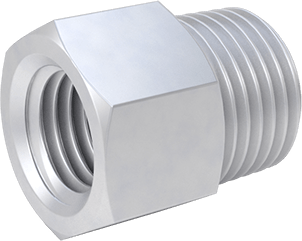

    Image of Product. Front orientation. Miniature Medium-Pressure Aluminum Pipe Fitting, Straight Adapter, M8 x 1 mm Thread Female, 1/8 NPT Male.

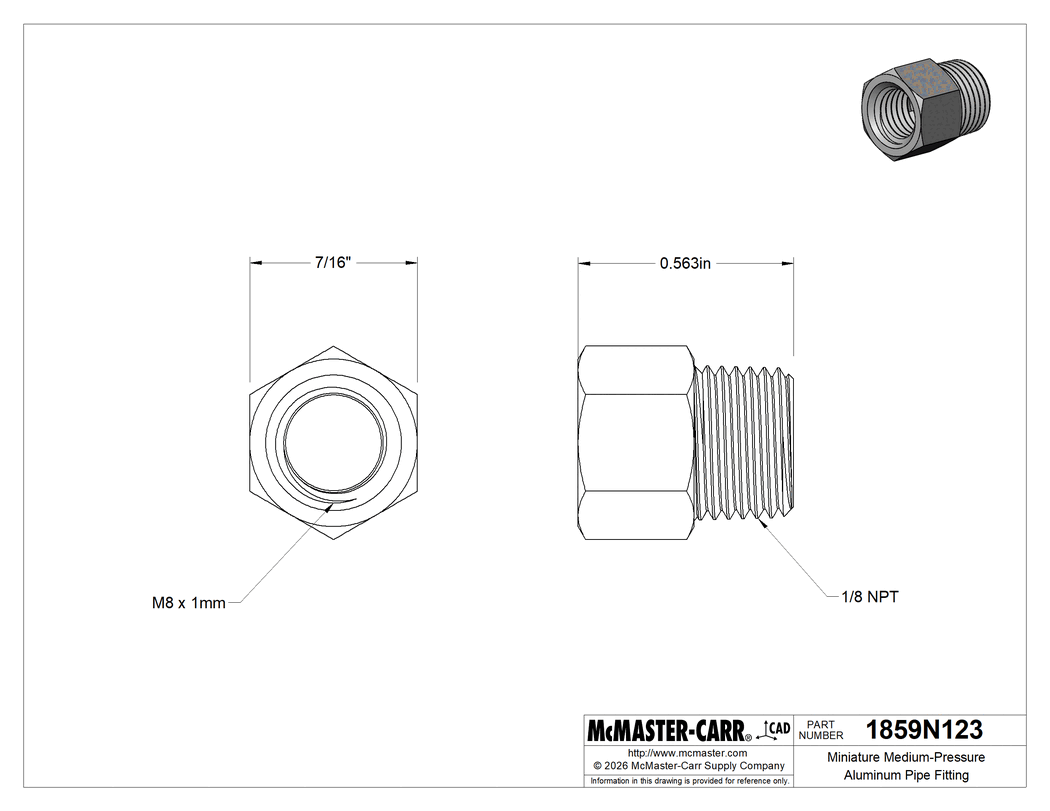

    Technical Drawing of Miniature Medium-Pressure Aluminum Pipe Fitting, Straight Adapter, M8 x 1 mm Thread Female, 1/8 NPT Male.

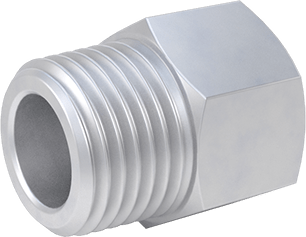

    Image of Product. Back orientation. Miniature Medium-Pressure Aluminum Pipe Fitting, Straight Adapter, M8 x 1 mm Thread Female, 1/8 NPT Male.

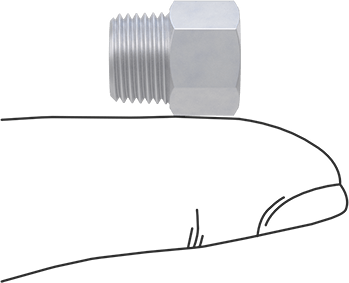

    Image of Product. Side1 orientation. Contains SizingReference. Miniature Medium-Pressure Aluminum Pipe Fitting, Straight Adapter, M8 x 1 mm Thread Female, 1/8 NPT Male.
    2-D PDF
    00000 each
    1859N123
    In stock
    1859N123
    00000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Relative Size

    Miniature

    Pressure Rating

    Low Pressure

    Shape

    Straight

    Fitting Type

    Adapter

    Fitting Connection

    Metric Female × NPT Male

    Thread Size

    (A)

    M8 × 1 mm

    Pipe Size (B)

    1/8

    Body Shape

    Hex

    Material

    6061 Aluminum

    Maximum Pressure @ Temperature

    150 psi @ 72° F

    Connects To

    Pipe

    For Use With

    Air, Oil, Water

    Hex Width

    7/16"

    Length

    9/16"

    Performance

    Corrosion Resistant

    Specifications Met

    ASME B1.20.1, ASTM B241

    System of Measurement

    Metric

    Threading

    Threaded on Both Ends

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    760900.0000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    Their small size makes these miniature fittings a good choice for cramped, confined spaces. They are designed to handle low-pressure applications. Fittings are aluminum, which is lightweight with good corrosion resistance.

    The information in this 3-D model is provided for reference only.
