    LED Stack Light

    with Buzzer Alarm, 24V DC, 2 Lights, Green/Red

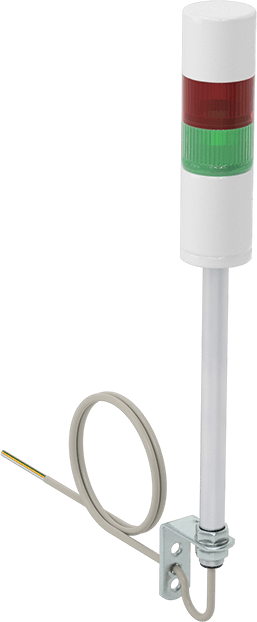

    Image of Product. Front orientation. LED Stack Light, with Buzzer Alarm, 24V DC, 2 Lights, Green/Red.

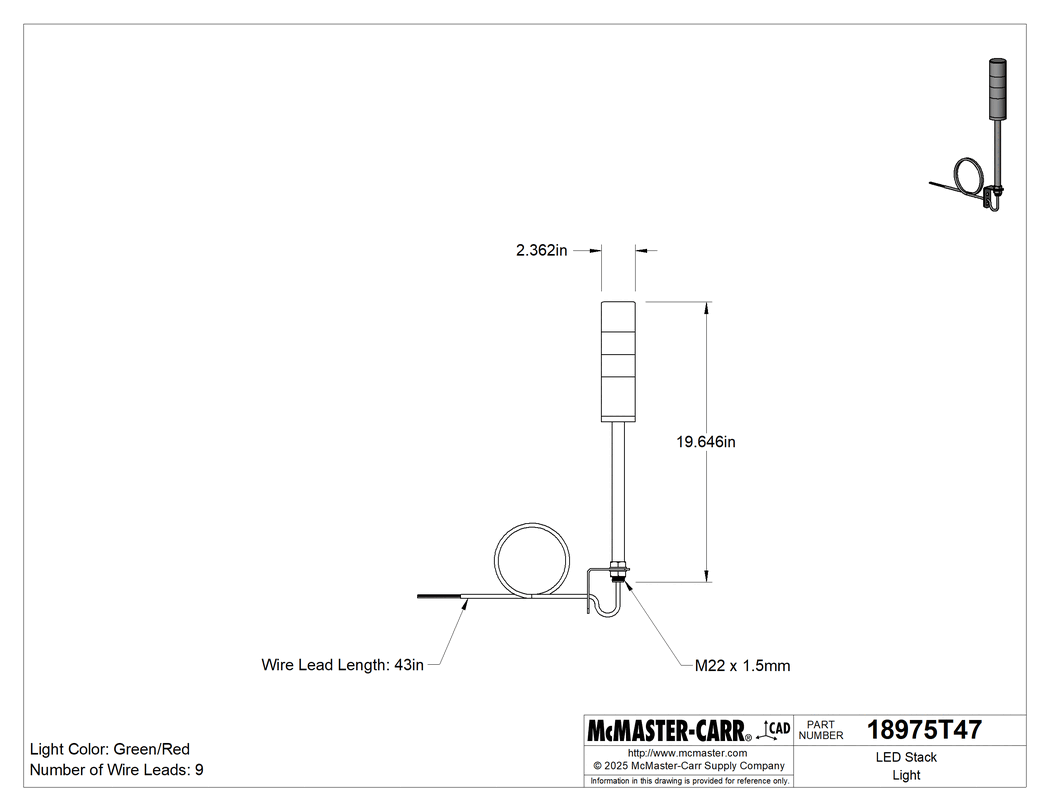

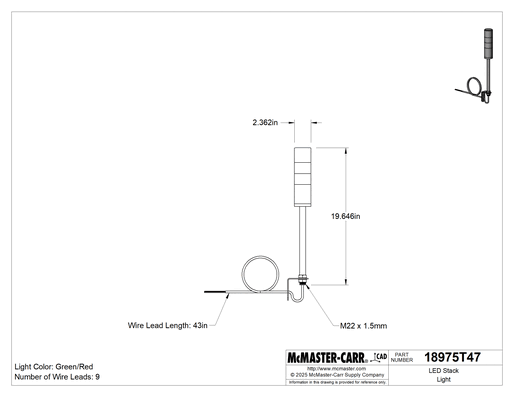

    Technical Drawing of LED Stack Light, with Buzzer Alarm, 24V DC, 2 Lights, Green/Red.
    Image of Product. Back orientation. LED Stack Light, with Buzzer Alarm, 24V DC, 2 Lights, Green/Red.
    Image of Product. Side1 orientation. Contains SizingReference. LED Stack Light, with Buzzer Alarm, 24V DC, 2 Lights, Green/Red.
    2-D PDF
    0000000 each
    18975T47
    In stock
    18975T47
    0000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Bulb Type

    LED

    Voltage

    24V DC

    Lights

    Number of Lights

    2

    Color

    Green/Red

    Pattern Setting

    Continuous, Flashing

    Height

    19 5/8"

    Diameter

    2 3/8"

    Sound Pattern

    Continuous, Pulse

    Volume (Sound) @ Distance

    88 dB @ 1 m

    Volume Control

    Adjustable

    Current @ Voltage

    0.04 amp @ 24V DC

    Wire Leads

    Number of

    9

    Length

    43"

    Thread Size

    M22 × 1.5 mm

    Gender

    Female

    Material

    Plastic

    Enclosure Rating

    IP65
    NEMA 4X
    NEMA 13

    Alert Type

    Signal Light with Audible Alarm

    Audible Signal Type

    Beep, Buzzer

    Certification

    C-UL Recognized Component
    CE Marked
    UL Recognized Component

    Electrical Connection

    Wire Leads

    Environment

    Corrosive, Dusty, Oily, Outdoor, Washdown, Wet

    Fasteners Included

    Yes

    Includes

    11-3/4" Aluminum Mounting Pipe, Mounting Bracket

    Lens Material

    Plastic

    Mounting Profile

    Surface

    Power Source

    Electric

    Specifications Met

    UL 508

    Country of Origin

    Japan

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    Not Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant with Exemptions

    RoHS Exemptions

    6(a)-I, 7(a), 7(c)-I

    Schedule B Number

    853180.0050

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    These lights have LED bulbs for years of maintenance-free operation and can be wired as either continuous or flashing. The beep or buzzer alerts workers when they're outside a direct line of sight. Lights meet IP65 for protection from washdowns.

    The information in this 3-D model is provided for reference only.
