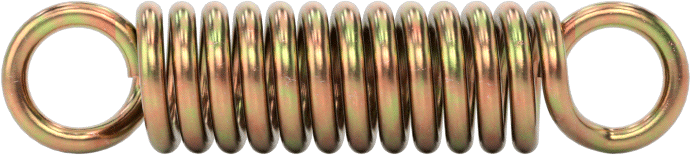

Mil. Spec. Extension Spring with Loop Ends
1" Long, 0.240" OD, 0.041" Wire Diameter
Loop Type | Single |
End Type | Loop |
Material | Spring Steel |
Length | 1" |
OD | 0.24" |
Wire Diameter | 0.041" |
Extended Length @ Maximum Load | 1.3" |
Load | |
Minimum | 1 lb. |
Maximum | 11.4 lb. |
Spring Rate | 34.55 lbf/in |
Military Specification | MS24586-574 |
Certificate | |
Type | Material Certificate with Traceable Lot Number and Test Report |
Form | Paper |
Finish | Cadmium Plated |
Spring Type | Extension |
Steel Grade | Music-Wire Steel |
System of Measurement | Inch |
Country of Origin | China, Germany, India, Mexico, United Kingdom, United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | Not Compliant |
Schedule B Number | 732020.5000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
These springs are manufactured and tested to strict U.S. military standards for material and construction. All come with a traceable lot number and material test report.
Loop End—The most secure attachment method. With fully closed loops, there's no risk of slipping off.
Spring Steel—Strong and resilient, but best suited for dry environments since moisture will cause these springs to rust.
Minimum Load—The amount of force required to start extending the spring.
Maximum Load—The amount of force required to fully extend the spring.

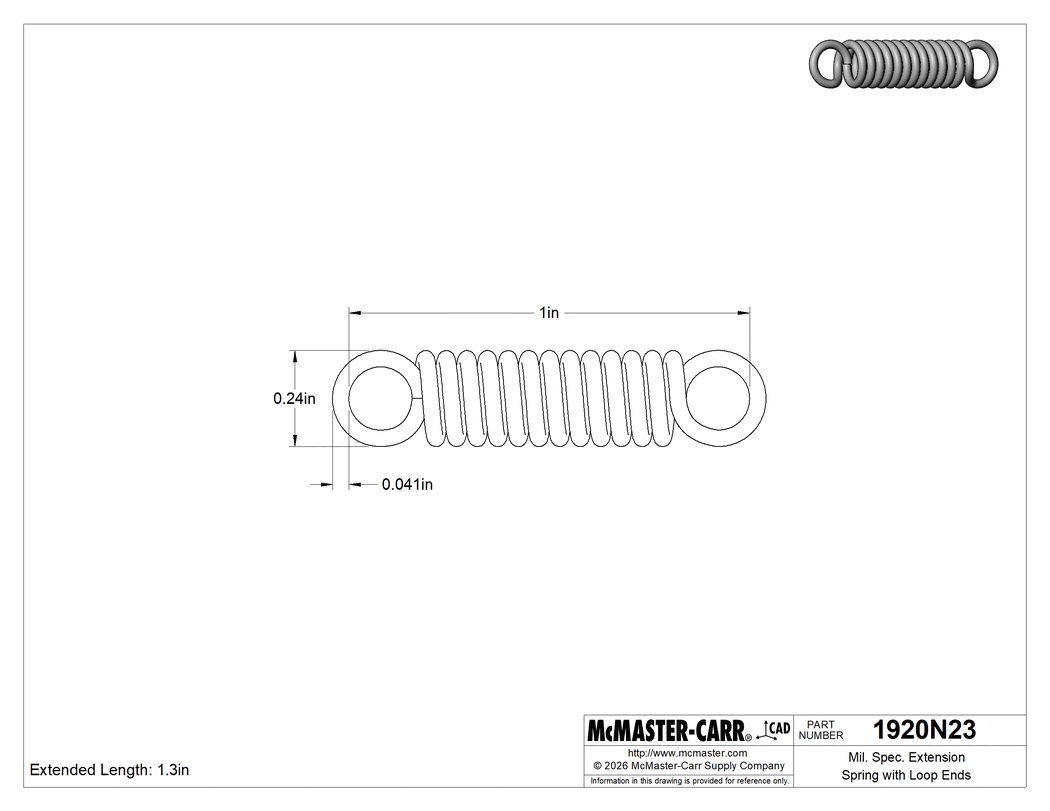

The information in this 3-D model is provided for reference only.
