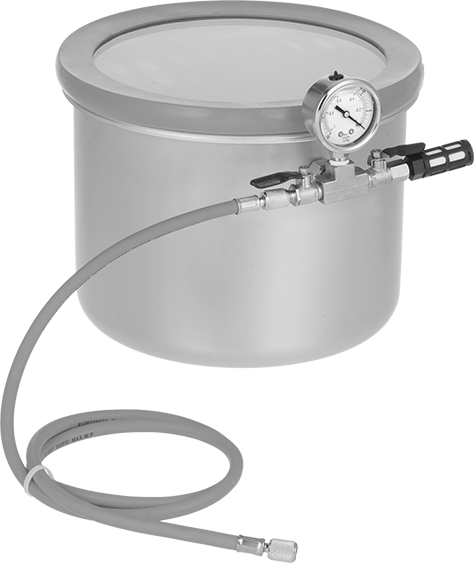

Vacuum Container
304 Stainless Steel with Side-Mount Gauge, Acrylic Lid with Seal, 3 Gallon
Material | 304 Stainless Steel |
Gauge | |
Vacuum Range | 0 in. Hg to 30 in. Hg |
Accuracy | ±5% |
Graduations | 0.5 in. Hg |
Mounting Location | Side |
Lid Material | Acrylic Plastic |
Seal Material | Silicone Rubber |
Capacity | 3 gal. |
Diameter | 11 1/4" |
Height | 8 3/4" |
Bottom ID | 10 1/2" |
Hose | |
Length | 5 ft. |
OD | 3/8" |
ID | 3/16" |
Material | EPDM |
Color | Purple |
Thread Size | 7/16"-20 UNF |
Gender | Female |
For Fitting Connection | 37° Flared, 45° Flared |
For Tube OD | 1/4" |
Maximum Temperature | 150° F |
Removes Particle Size Down To | 50 μm |
Includes | 50 Micron Air Filter, Lid |
Connects To | Hose |
Fitting Connection | Threaded |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 961700.2000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Additional Specifications | |
Related Product |
Also known as vacuum degassing chambers, these remove trapped air from mixtures such as paint and mold resins. The fittings on the hose contain a gasket that allows you to connect the hose to flared fittings.
304 Stainless Steel—304 stainless steel chambers have excellent corrosion resistance and are commonly used in laboratories.
Side-Mount Gauge—Chambers with a side-mount gauge allow you to see the material inside of them when looking from the top.
Acrylic Plastic Lid—Acrylic lids are more durable than glass lids. They’re commonly used to eliminate air bubbles in hard setting materials, such as silicone and polyurethane.
Replacement Lids—Replacement lids do not include hardware or seal.
