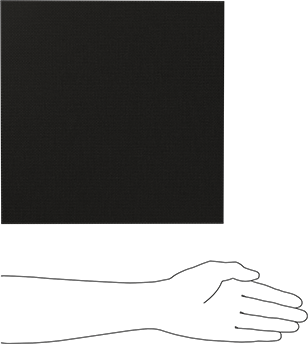

High-Strength Lightweight Carbon Fiber Sheet
with Foam Core, 12" x 12" x 1/4"
Width | 12" |
Width Tolerance | -1/8" to 1/8" |
Length | 12" |
Length Tolerance | -1/8" to 1/8" |
Thickness | 1/4" |
Thickness Tolerance | -0.02" to 0.02" |
Pattern | Checked |
Color | Black |
Temperature Range | 0° F to 250° F |
Tensile Strength | 120,000 psi to 175,000 psi |
Fiber Tensile Stiffness | 33 msi to 36 msi (Standard) |
Impact Strength | Not Rated |
Hardness | Not Rated |
For Use Outdoors | No |
Application | Multipurpose |
Backing Type | Plain |
Carbon Fiber Construction | Sandwich |
Clarity | Opaque |
Composite Tensile Stiffness | Not Rated |
Composite Tensile Stiffness Rating | Not Rated |
Compressive Strength | Not Rated |
Core Color | White |
Core Material | Foam |
Core Thickness | 0.21" |
Dielectric Strength | Not Rated |
Face Thickness | 0.02" |
Flatness Tolerance | Not Rated |
Flexibility | Rigid |
Flexural Strength | Not Rated |
Hardness Rating | Not Rated |
Material | Carbon Fiber |
Performance | Extreme Strength, High Strength, Lightweight |
Shape | Sheet |
Texture | Smooth |
Tolerance Rating | Standard |
Warning Message | Physical and mechanical properties are not guaranteed. They are intended only as a basis for comparison and not for design purposes. |
Country of Origin | Mexico, United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/17/2023, 233 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 392190.5050 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |

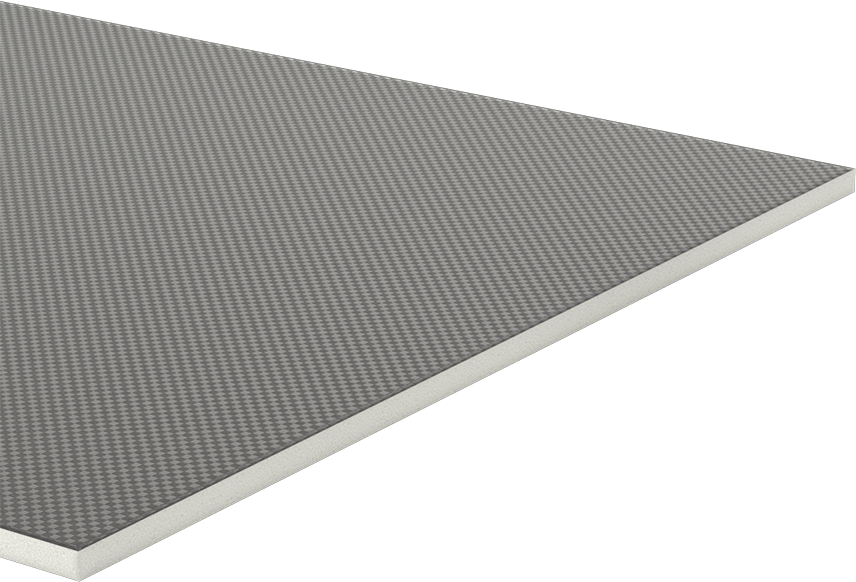

A layer of foam is sandwiched between two pieces of carbon fiber to make these sheets even lighter than standard carbon fiber sheets. Carbon fiber is the strongest composite we offer. It’s comparable in strength to 6061 aluminum and is often used to build frames and structures.

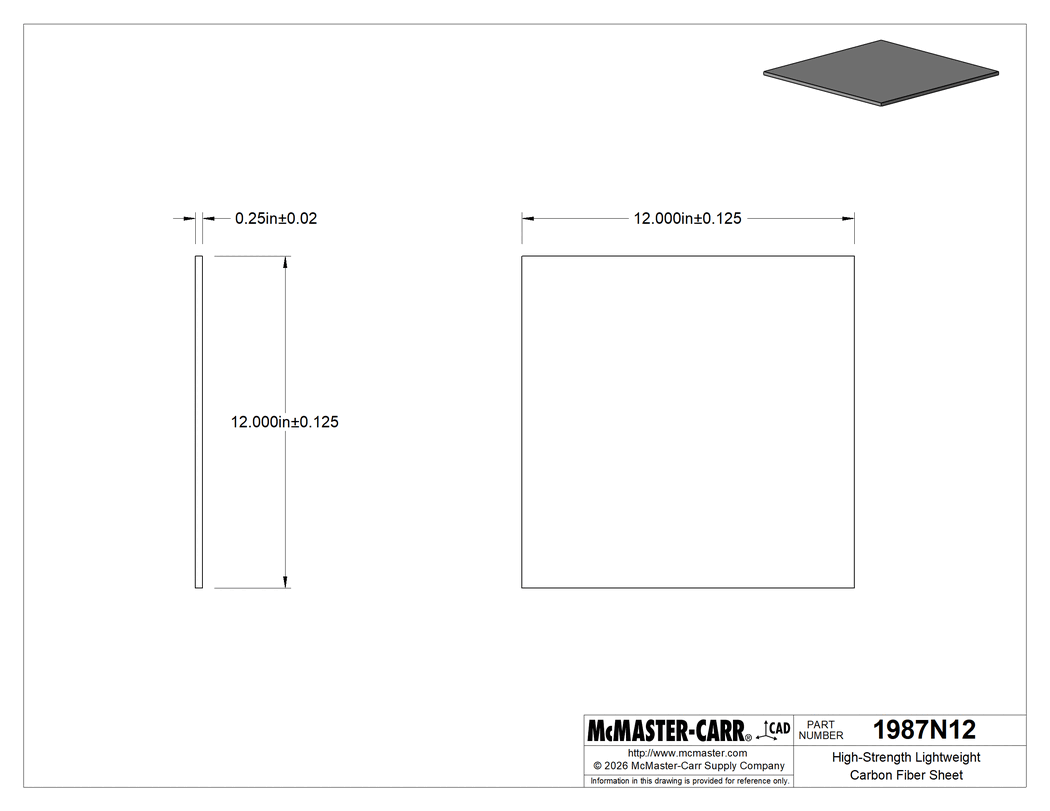

The information in this 3-D model is provided for reference only.
