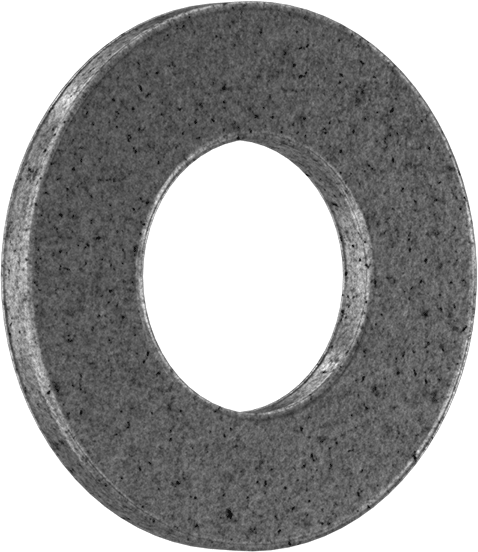

Oil-Embedded Bronze Thrust Bearing
for 25 mm Shaft Diameter, 50 mm OD, 4 mm Thick
Bearing Type | Plain |
Lubrication | Lubricated |
Material | 841 Bearing Bronze |
For Shaft Diameter | 25 mm |
OD | 50 mm |
OD Tolerance | -0.38 mm to 0.38 mm |
Thickness | 4 mm |
Thickness Tolerance | -0.07 mm to 0.07 mm |
Dynamic Thrust Load Capacity @ Speed | 3,650 lb. @ 60 rpm |
Base Oil | Synthetic Oil |
Temperature Range | -35° F to 300° F |
For Load Direction | Thrust |
For Shaft Type | Round |
ID | 25 mm |
ID Tolerance | 0 mm to 0.254 mm |
Lubricant | SAE 30 Oil |
Lubrication Method | Embedded |
P Max | 2,000 psi |
Performance | Corrosion Resistant |
Plain Bearing Type | Thrust |
PV Max | 50,000 |
System of Measurement | Metric |
V Max | 1,200 sfpm |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 848330.8090 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Our simplest-to-use thrust bearings, with no moving parts and no need to lubricate. Their porous surface releases oil over time, so you can install and forget them. While they run in most conditions, oil may drip away if temperatures climb too high. For extremely hot environments, consider graphite-lubricated bearings. All are fabricated, lubricated, and inspected in the U.S.
841 Bearing Bronze—A balance of strength and speed makes these bearings a good choice for most applications. Also known as SAE 841 bearing bronze.
Synthetic Oil Base—A high-quality lubricant makes all the difference. Synthetic oil is less sensitive to temperature changes than mineral oil, so it won't get runny and leak away if the bearing heats up.
Secure
Support load

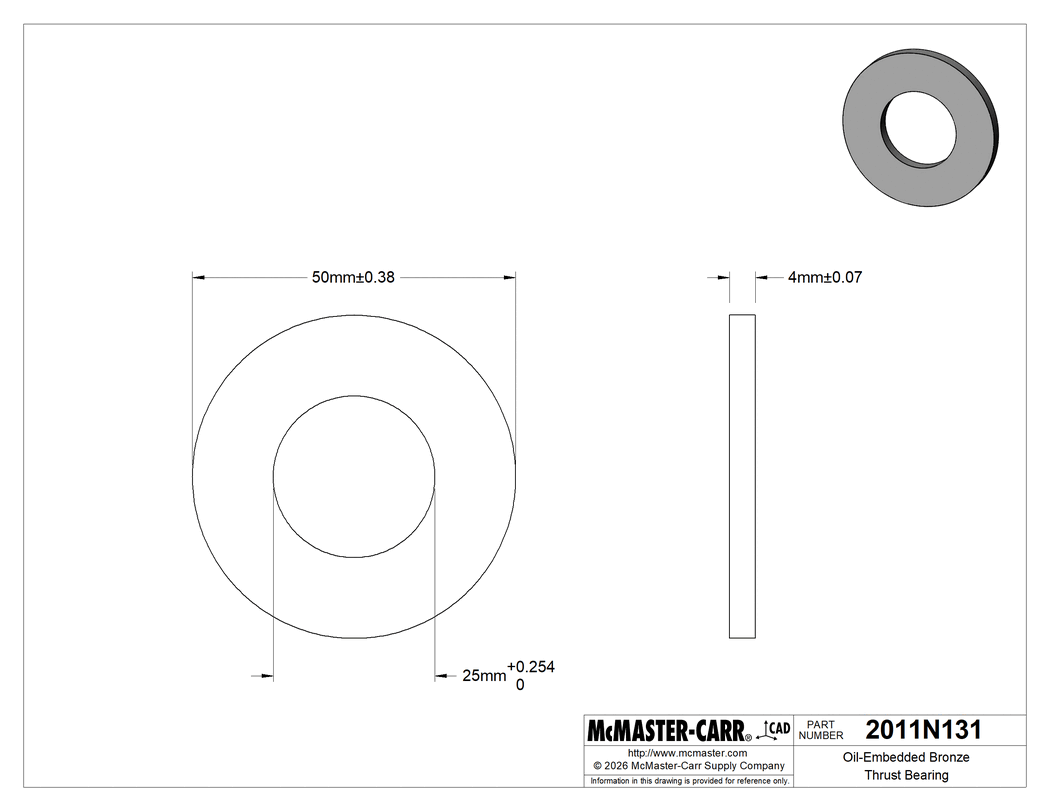

The information in this 3-D model is provided for reference only.
