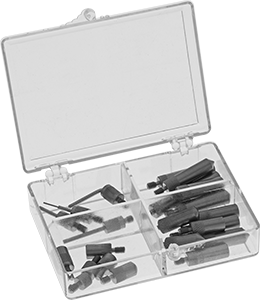

Economy Stainless Steel Contact Point Set
for Plunger-Style Variance Indicators, 22 Pieces
Grade | Economy |
Sold As | Set |
For Indicator Type | Plunger |
Material | Stainless Steel |
Number of Pieces | 22 |
Contact Point Type | Radius |
Includes | Five 0.225” to 0.825” Lg. Radius Contact Points |
For Dial Indicator Size | AGD Group 0, AGD Group 1, AGD Group 2, AGD Group 3, AGD Group 4 |
Mounting Thread | |
Gender | Male |
Size | 4-48 |
Container Type | Case |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 901790.0150 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
These contact points are compatible with indicators that conform to AGD standards. Most plunger indicators are classified in AGD Groups 0, 1, 2, 3, or 4.
Needle Contact Point—Needle contact points can probe the bottom of a groove or narrow hole.
Conical Contact Point—Conical contact points allow for precise positioning of the measuring tip. They are not for use on soft materials.
Radius Contact Point—Radius contact points are best for use on flat surfaces.
Flat Contact Point—Flat contact points are used for measuring convex surfaces.

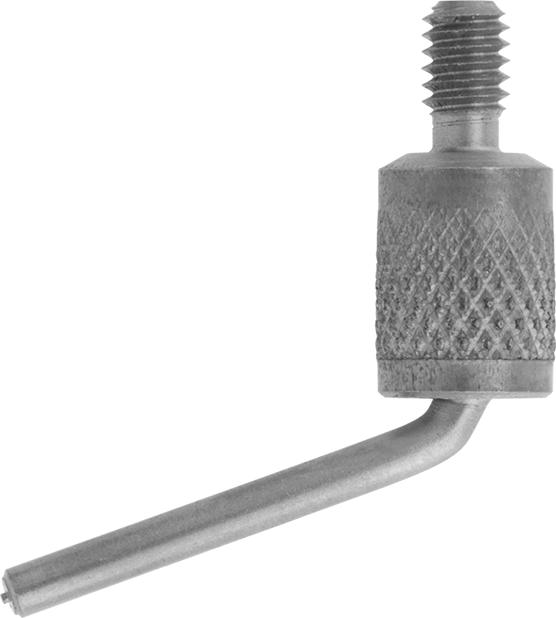

Bent Needle Contact Point—Bent needle contact points are set at an angle to access hard-to-reach areas.

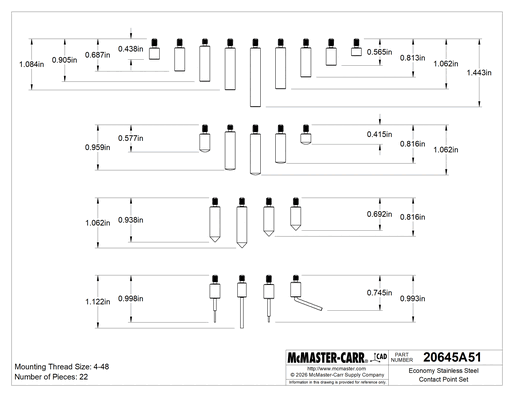

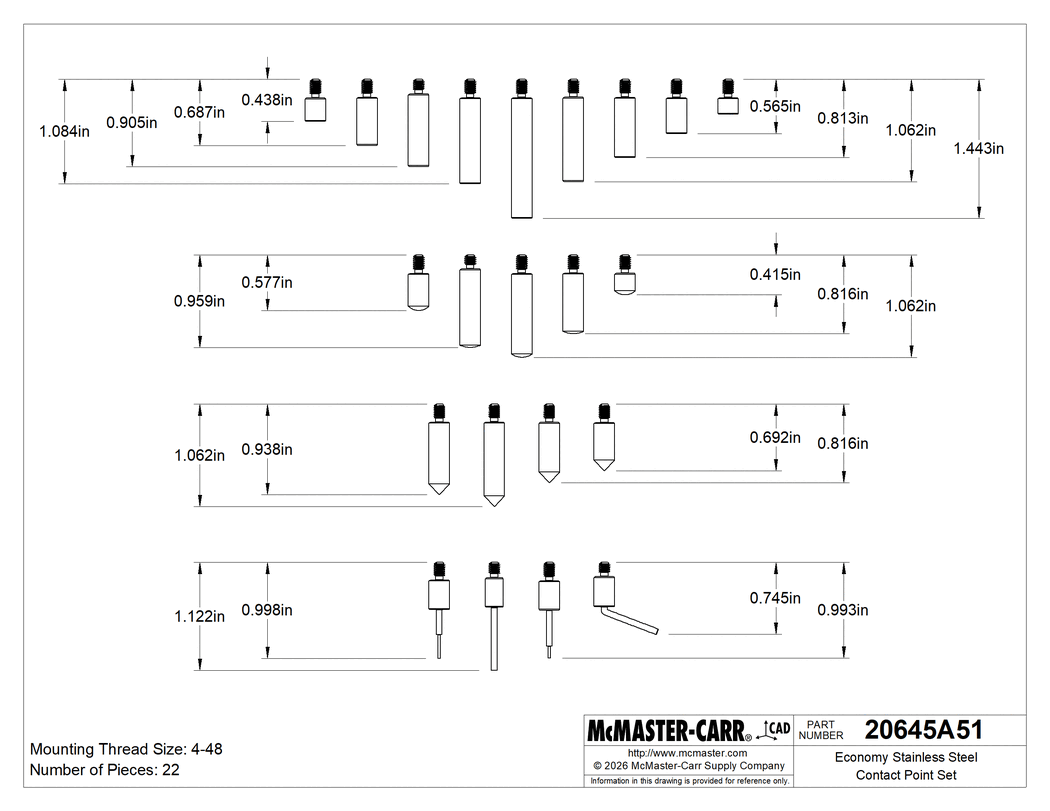

The information in this 3-D model is provided for reference only.
