    Swivel Variance Indicator Clamp

    with 1 Wing Nut, Stainless Steel, 1/2" and 1/2" Diameter

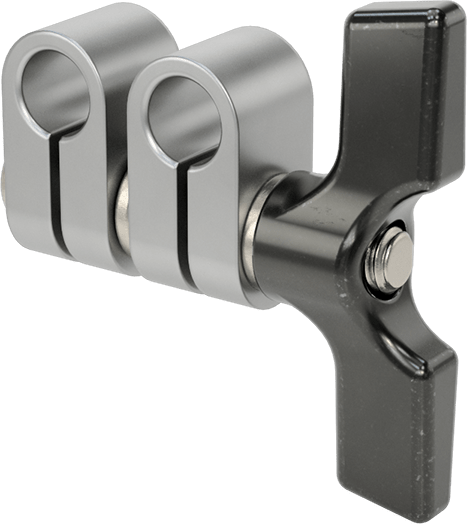

    Image of Product. Front orientation. Swivel Variance Indicator Clamp, with 1 Wing Nut, Stainless Steel, 1/2" and 1/2" Diameter.

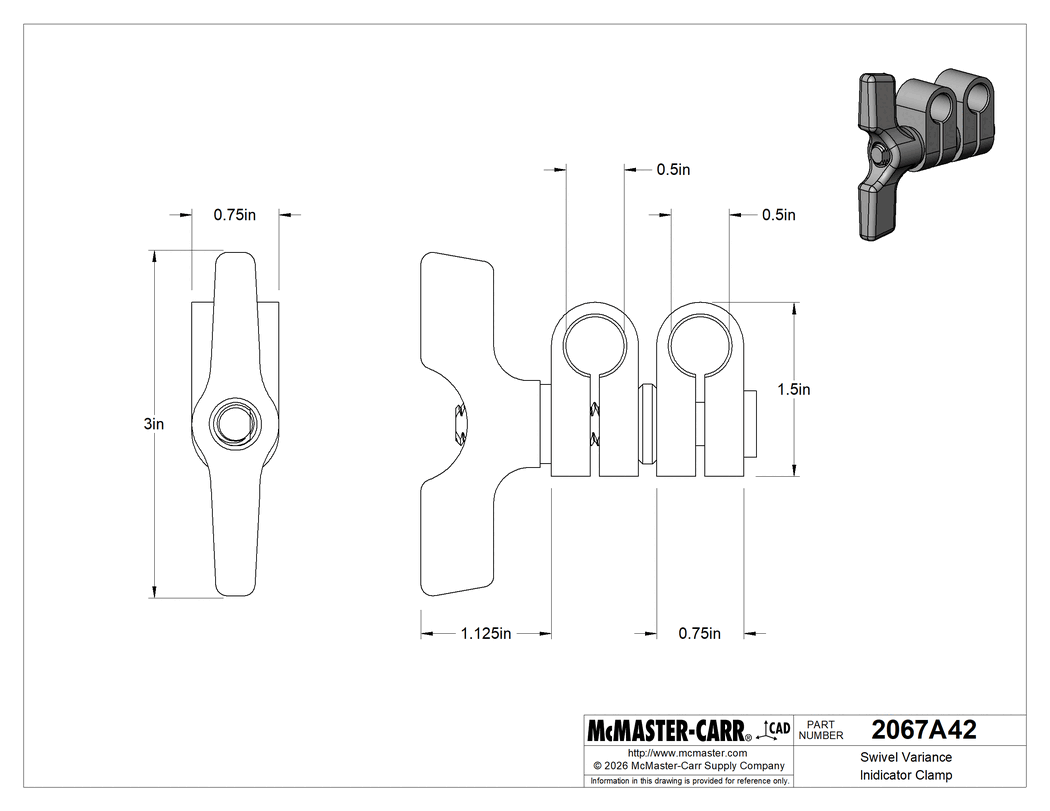

    Technical Drawing of Swivel Variance Indicator Clamp, with 1 Wing Nut, Stainless Steel, 1/2" and 1/2" Diameter.

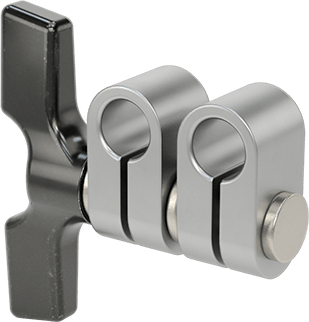

    Image of Product. Back orientation. Swivel Variance Indicator Clamp, with 1 Wing Nut, Stainless Steel, 1/2" and 1/2" Diameter.
    Image of Product. Front orientation. Contains Annotated. Swivel Variance Indicator Clamp, with 1 Wing Nut, Stainless Steel, 1/2" and 1/2" Diameter.
    Image of Product. Side1 orientation. Contains SizingReference. Swivel Variance Indicator Clamp, with 1 Wing Nut, Stainless Steel, 1/2" and 1/2" Diameter.
    2-D PDF
    000000 each
    2067A42
    In stock
    2067A42
    000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Clamp Type

    Swivel

    Style

    6

    Material

    Stainless Steel

    Diameter

    (A)

    1/2"

    (B)

    1/2"

    Adjustment Mechanism

    Wing Nut

    System of Measurement

    Inch

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (06/14/2023, 235 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    820570.0090

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    Secure indicators, upright posts, attachments, and holding rods at any angle. For use with both plunger and lever indicators.

    The information in this 3-D model is provided for reference only.
