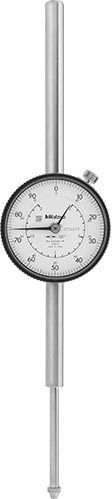

Mitutoyo Plunger Variance Indicator
with NIST Certificate, Continuous Dial, Model Number 2424A-19Cal
Mount Type | Lug, Stem |
Bearing Type | Jeweled |
Distance Measured | 0" to 2.000" |
Measuring Increments | 0.001" |
Accuracy | ±0.001" |
Dial Indicator Size | AGD Group 2 |
Mounting Stem Diameter | 3/8" |
Mounting Lug Hole Diameter | 1/4" |
Dial | |
Type | Continuous |
Face Movement | Rotating |
Face Color | White |
Hand Color | Black |
Hand Direction | Clockwise |
Diameter | 2 1/4" |
Reading Inch | 0-100 |
Contact Point | |
Diameter | 0.118" |
Length | 2.35" |
Mounting Thread Size | 4-48 |
Material | Carbide |
Manufacturer Model Number | 2424A-19CAL |
Certificate Type | Calibration Certificate Traceable to NIST |
Container Type | Cardboard Box |
Dial Indicator Type | Plunger |
Display Type | Dial |
Manufacturer | Mitutoyo |
System of Measurement | Inch |
Country of Origin | Japan |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (06/27/2024, 241 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 903180.8080 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
These indicators come with a calibration certificate traceable to NIST that states they’ve passed a test for accuracy. They have a continuous dial numbered clockwise around the face for direct measurements. A spring-loaded plunger retracts and extends to measure objects. Rotate the dial face for viewing at multiple angles.
Jeweled Bearing—Jeweled bearings are more sensitive and wear resistant than plain bearings for a longer service life.

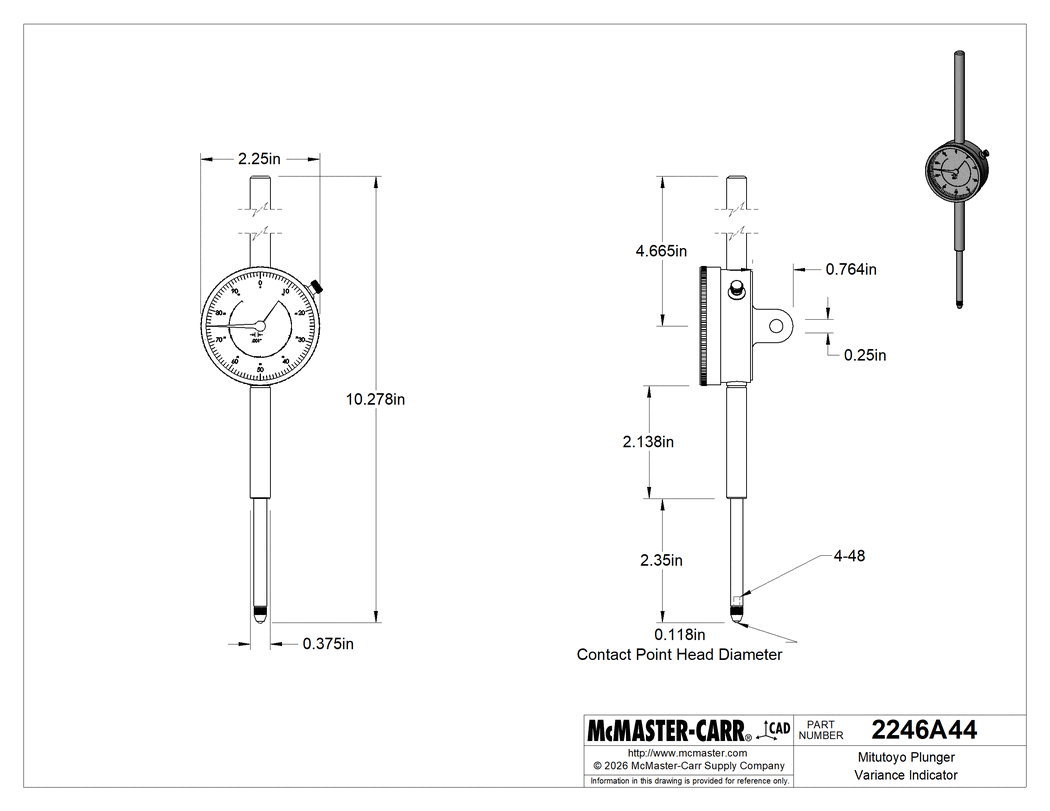

The information in this 3-D model is provided for reference only.
