    Light Duty Swivel Caster for Furniture

    with Brake, 3/8"-16 Thread x 1" Long Stem and Nylon Wheel

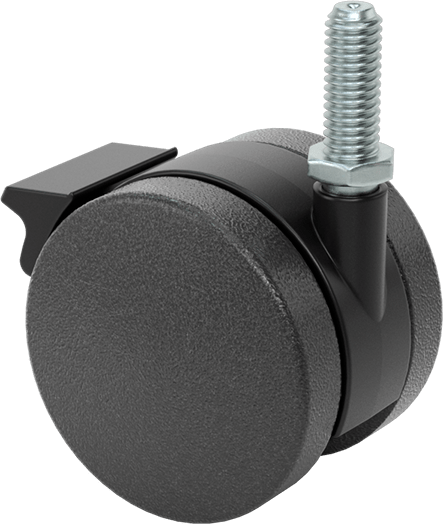

    Image of Product. Front orientation. Light Duty Swivel Caster for Furniture, with Brake, 3/8"-16 Thread x 1" Long Stem and Nylon Wheel.

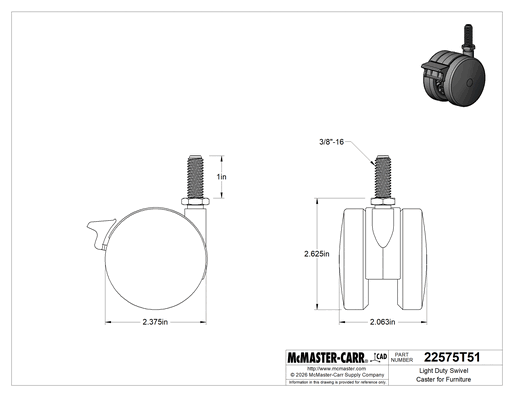

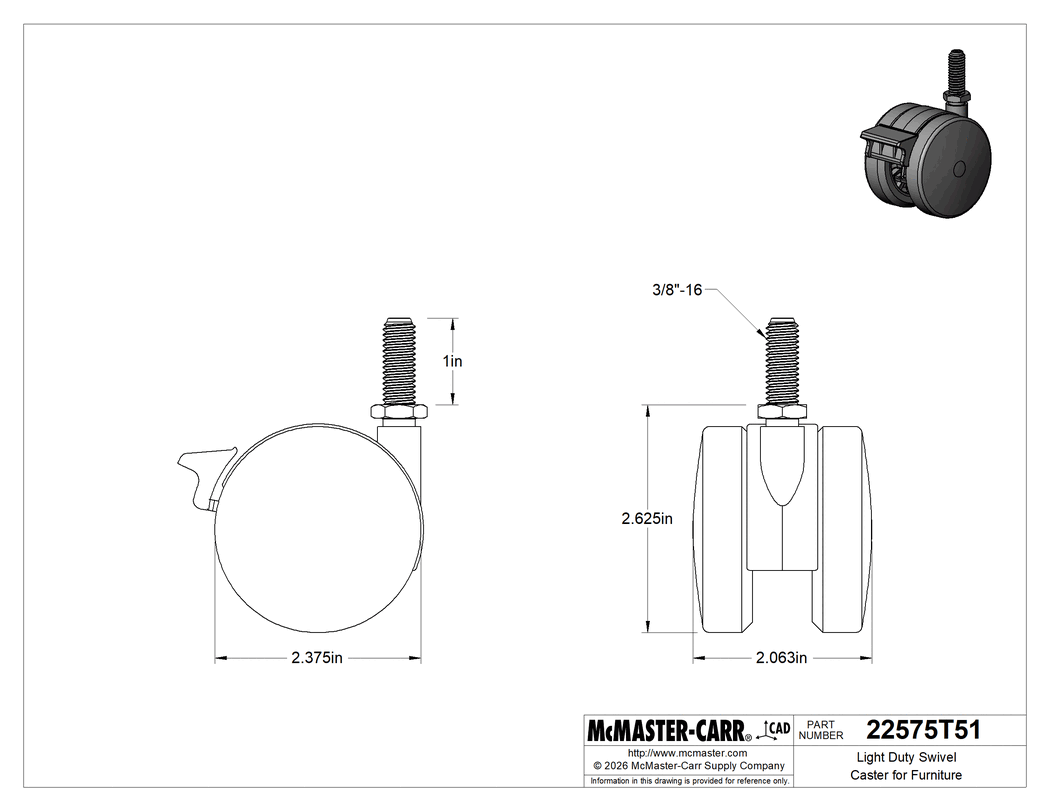

    Technical Drawing of Light Duty Swivel Caster for Furniture, with Brake, 3/8"-16 Thread x 1" Long Stem and Nylon Wheel.
    Image of Product. Back orientation. Light Duty Swivel Caster for Furniture, with Brake, 3/8"-16 Thread x 1" Long Stem and Nylon Wheel.
    Image of Product. Side1 orientation. Contains SizingReference. Light Duty Swivel Caster for Furniture, with Brake, 3/8"-16 Thread x 1" Long Stem and Nylon Wheel.
    2-D PDF
    00000 each
    22575T51
    In stock
    22575T51
    00000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Stem Thread Size

    3/8"-16

    Wheel Color

    Black

    Wheel Type

    Solid

    Hardness Rating

    Hard

    Caster Type

    Swivel

    Brake/Lock Type

    Wheel Brake

    Wheel

    Diameter

    2 3/8"

    Width

    2 1/16"

    Number of

    2

    Weight Capacity per Caster

    100 lb.

    Mount Height

    2 5/8"

    Stem

    Type

    Threaded

    Shape

    Round

    Length

    1"

    Frame

    Fabrication

    Molded

    Material

    Plastic

    Color

    Black

    Brake

    Location

    Face

    Activation

    Foot Pedal

    Caster Swivel Construction

    Kingpin

    For Surface Type

    Asphalt, Brick, Carpet, Concrete, Hardwood, Linoleum, Steel, Tile

    For Use With

    Mild Acids, Mild Alkalis, Solvents, Grease, Oil

    Hardness

    Durometer 70D

    Mount Type

    Stem

    Nonmarking Wheels

    No

    Swivel Bearing

    Type

    Without Bearing

    Tread Style

    Flat

    Wheel Bearing Type

    Without Bearing

    Wheel/Tread Material

    Nylon

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (01/17/2023, 233 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    830220.0000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Also known as twin-wheel casters, these lightweight and economical casters are often used on furniture and displays. Their durable nylon wheels are impact and wear resistant. Wheels ride directly on the axle rather than on bearings, making them an economical choice for equipment not frequently moved. They work well on smooth surfaces.

    Wheel Brake—Casters with wheel brake apply pressure to the wheel to stop movement with a press of the foot pedal.
