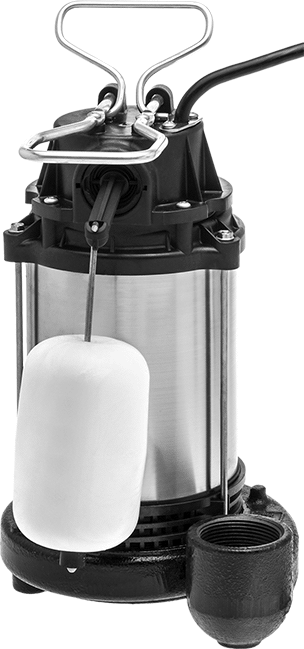

Clog-Resistant Sump Pump for Water
1 hp
0000000 each
2348K23
In stock
2348K23
0000000 each
Each
Voltage | 120V AC |
Electrical Phase | Single |
Thermal Protection | With Thermal Overload Protection |
Electrical Connection Type | Plug In |
Cord Length | 8 ft. |
Maximum Flow Rate | |
@ 5 Feet Of Head | 81 gpm |
@ 10 Feet Of Head | 66 gpm |
@ 15 Feet Of Head | 49 gpm |
Maximum Feet of Head | 22 ft. |
Housing Material | 400 Series Stainless Steel |
Level | |
Turn-On | 9" |
Turn-Off | 4" |
Temperature Range | 40° F to 120° F |
Power | 1 hp |
Current | 9.8 amp |
Intake Inlet Type | Screened |
Discharge | |
Connection Port | Pipe |
Connection | Threaded |
Pipe Size | 1 1/2 |
Thread Type | NPT |
Gender | Female |
Minimum Sump Pit | |
Diameter | 11" |
Depth | 18" |
Overall | |
Height | 12" |
Width | 10" |
Length | 8" |
Certification | CSA Certified |
Duty Cycle | Intermittent |
Electrical Connection | Straight Blade |
For Use With | Water |
Frequency | 60 Hz |
Intake Connection Port | Inlet |
Intake Type | Screened |
Number of Blades | 3 |
On/Off Time | Not Rated |
Performance | Clog Resistant |
Power Source | Electric |
Pump Activation Type | Float Switch |
Pump Type | Wastewater, Sump |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | Not Compliant |
Schedule B Number | 841370.2004 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
The intake is 2” from the base of the pump to prevent dirt at the bottom of your sump pit from clogging the pump. The float switch is wired to the pump. Use with debris-free water. Submerge while in use and do not run dry.
