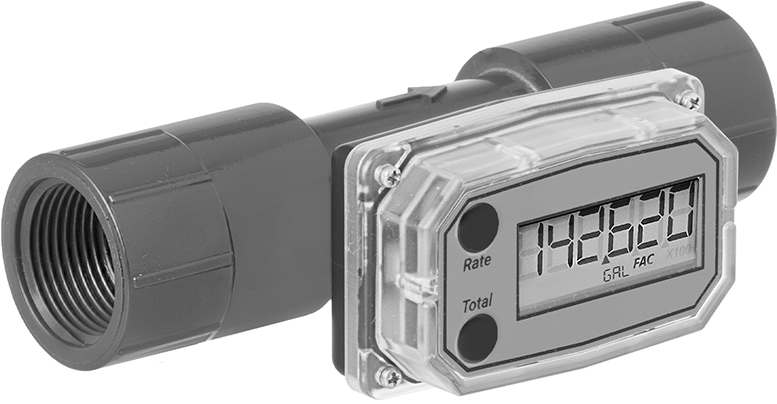

Flowmeter/Totalizer with PVC Body
3/4 NPT Female, 2 to 20 gpm, with NIST Certificate
Body Material | PVC |
Fitting Material | PVC |
Seal Material | 316 Stainless Steel |
Certificate Type | Calibration Certificate Traceable to NIST |
Display Type | Digital |
Connections | 3/4 NPT Female |
Flow | 2 gpm to 20 gpm |
Pipe Schedule | 80 |
End-to-End Length | 6 1/8" |
Accuracy | ±3% |
Maximum Volume Displayed | |
Total | 999,999 Gallons |
Batch | 999,999 Gallons |
Maximum Pressure @ Temperature | 225 psi @ 70° F |
Temperature | |
Minimum | 33° F |
Maximum | 140° F |
Batteries Included | Yes |
Enclosure Rating | IP65 |
Battery Life | 2 yr. |
Battery Size | AAA |
Calibration Media | |
Specific Gravity | 1 |
Calibrated with | Water |
Connects To | Pipe |
Environment | Dusty, Outdoor, Washdown, Wet |
Field Recalibratable | Yes |
Fitting Connection | Threaded |
Flow Measurement Type | Turbine |
Flow Measurement Unit | Gallons per Minute |
For Use With | Liquids |
Mounting Location | Inline |
Mounting Position | Any Angle |
Number of Batteries Required | 2 |
Reset Type | No Reset |
Resolution | 0.001 |
Totalization Type | Batch, Cumulative |
Warning Message | Chemical compatibility must be determined by the customer based on the conditions in which the product is being used, including the presence of other chemicals, temperature, and consistency. |
Wetted Parts Material | 316 Stainless Steel, Ceramic, PVC, Tungsten Carbide |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 902610.5000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Additional Specifications | |
Related Product |
Determine the flow rate and total volume of liquid flowing through your system with the same meter. To measure flow, these flowmeter/totalizers count how many times their turbine turns as liquid passes through. Use them only with clean, low-viscosity liquids to avoid clogging the turbine and other damage to these flowmeter/totalizers. You can reset the batch total, but you can’t reset the cumulative total. Mount them inline with your pipe system. They’re accurate in any mounting orientation.
These flowmeter/totalizers are either calibrated with water or solvent. You can recalibrate them in the field to other liquids, pipe, and operating conditions.
Choose a fitting material that is compatible with the liquid you're running through your line. IP rated, all seal out dust and can be lightly rinsed.
PVC Fitting—PVC fittings work with a wide range of chemicals. However, they can crack from impact or when overtightened.
Calibration Certificate Traceable to NIST—Flowmeter/totalizers with a calibration certificate traceable to NIST include documentation that states that they’ve passed a test for accuracy.
NEMA 4 Enclosure Rating—NEMA 4 flowmeter/totalizers protect against weather and washdowns.

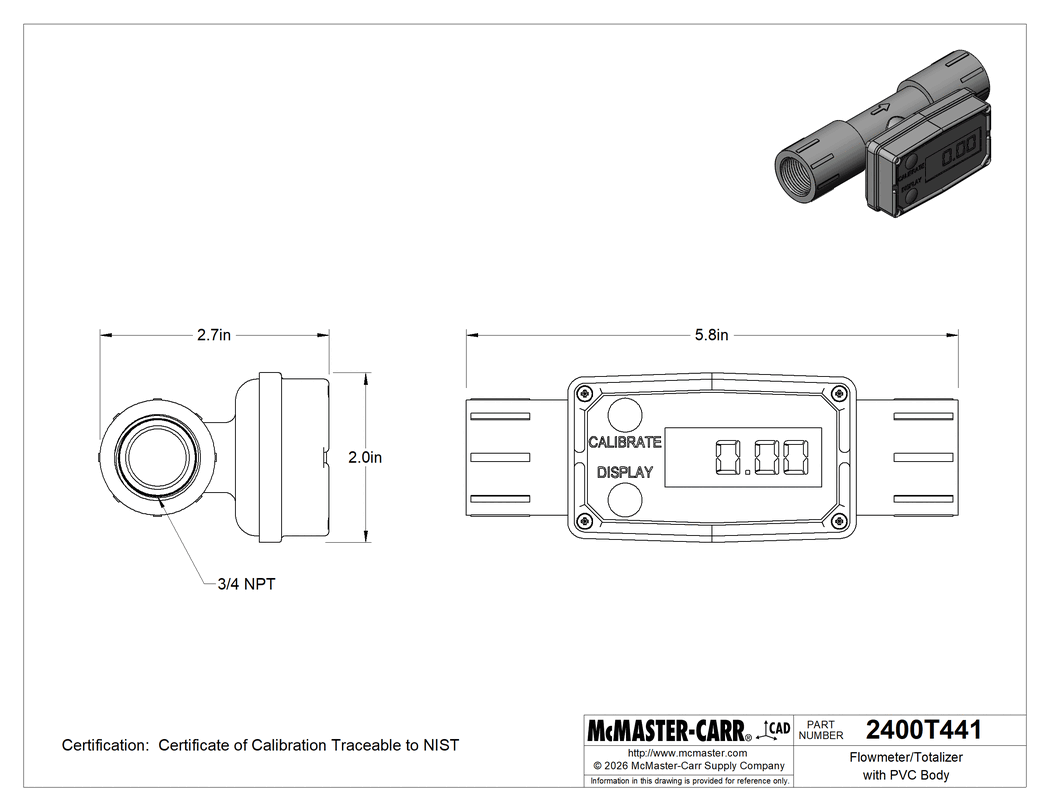

The information in this 3-D model is provided for reference only.
