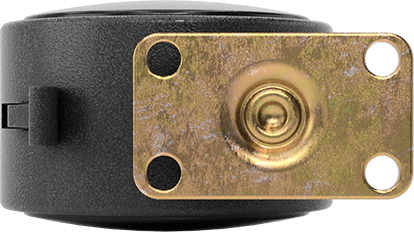

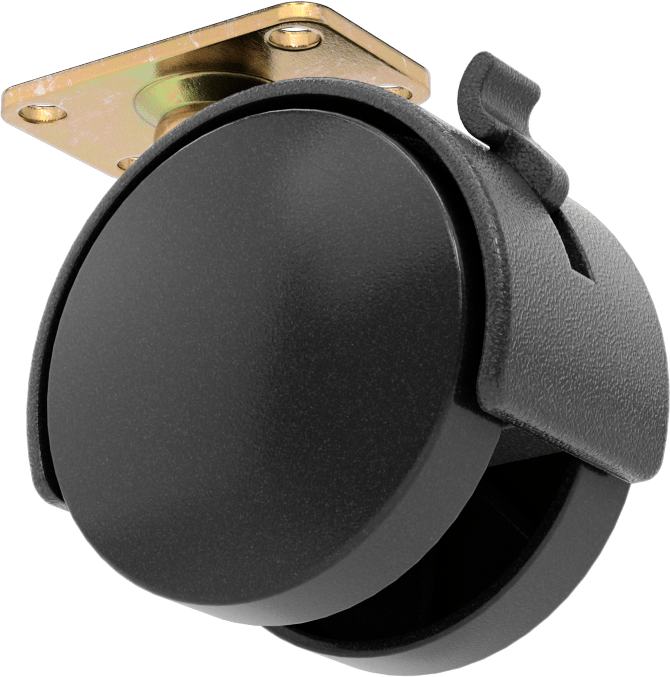

Light Duty Furniture Swivel Caster
with Brake, 2-3/8" x 1-7/8" Nylon Wheel, 2" x 1-3/16" Plate
Mounting Plate | |
Length | 2" |
Width | 1 3/16" |
Style | 2 |
Wheel | |
Diameter | 2 3/8" |
Width | 1 7/8" |
Number of | 2 |
Nonmarking Wheels | No |
Wheel Color | Black |
Wheel Type | Solid |
Wheel/Tread Material | Nylon |
Hardness Rating | Hard |
Hardness | Durometer 70D |
Caster Type | Swivel |
Brake/Lock Type | Wheel Brake |
Mount Height | 3" |
Weight Capacity per Caster | 100 lb. |
Tread Style | Flat |
Wheel Bearing Type | Without Bearing |
Hood Material | Plastic |
Mounting Holes | |
Center-to-Center Length | 1 9/16" |
Center-to-Center Width | 13/16" |
For Screw Size | 3/16" |
Frame | |
Fabrication | Molded |
Material | Plastic |
Color | Black |
Caster Swivel Construction | Kingpin |
Swivel Bearing Type | Without Bearing |
Brake | |
Location | Face |
Activation | Foot Pedal |
For Surface Type | Asphalt, Brick, Carpet, Concrete, Hardwood, Linoleum, Steel, Tile |
For Use With | Mild Acids, Mild Alkalis, Solvents, Grease, Oil |
Mount Type | Plate |
Mounting Fasteners Included | No |
Mounting Plate Material | Zinc-Plated Steel |
Country of Origin | China |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | Not Compliant |
Schedule B Number | 830220.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Also known as twin-wheel casters, these lightweight and economical casters are often used on furniture and displays. Wheels are impact- and wear-resistant nylon.
They work well on smooth surfaces.
The wheels ride directly on the axle rather than on bearings, making these casters an economical choice for equipment not frequently moved.
Wheel Brake—Casters with wheel brake apply pressure to the wheel to stop movement with a press of the foot pedal.

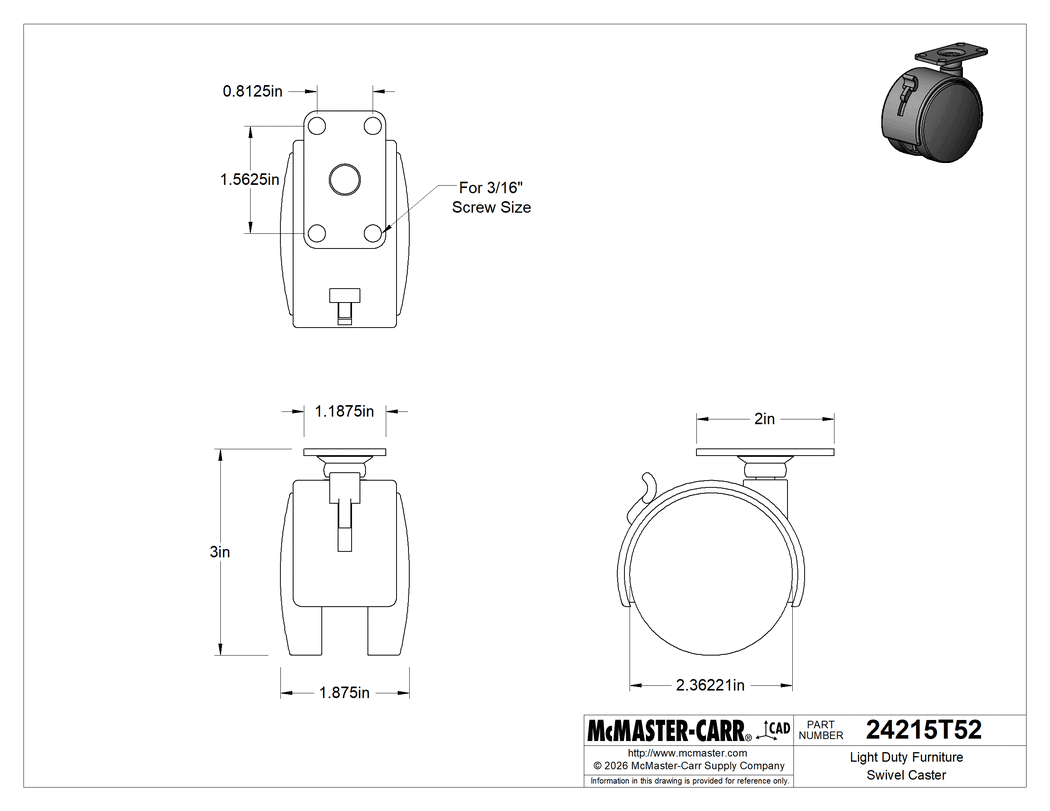

The information in this 3-D model is provided for reference only.
