Quick-Install Pressure Test Fitting
3/4 NPT Male Inlet x 3/4 NPT Female Outlet Adapter
Connection | NPT Male Inlet × NPT Female Outlet Adapter |
Material | 416 Stainless Steel |
Pipe Size | 3/4 |
Maximum Pressure | 4,000 psi |
Temperature Range | -65° F to 212° F |
Gasket Material | Polyurethane Rubber |
For Use With | Air, Argon, Diesel Fuel, Fuel Oil, Gasoline, Hydraulic Fluid, Hydraulic Fluid (Petroleum Based), Natural Gas, Nitrogen, Oxygen, Water |
Connects To | Pipe |
Fitting Connection | Threaded |
Performance | Quick Install |
Shape | Straight |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (06/27/2024, 241 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 730729.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |

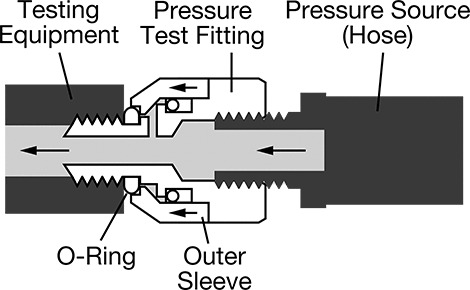

Thread these fittings onto your testing equipment by hand for a secure connection in testing applications—no tools, tape, or sealant required. Use them with gauges and other equipment as a temporary connection. When pressure is applied, the O-ring on the outlet presses against the testing equipment, creating a tight seal.

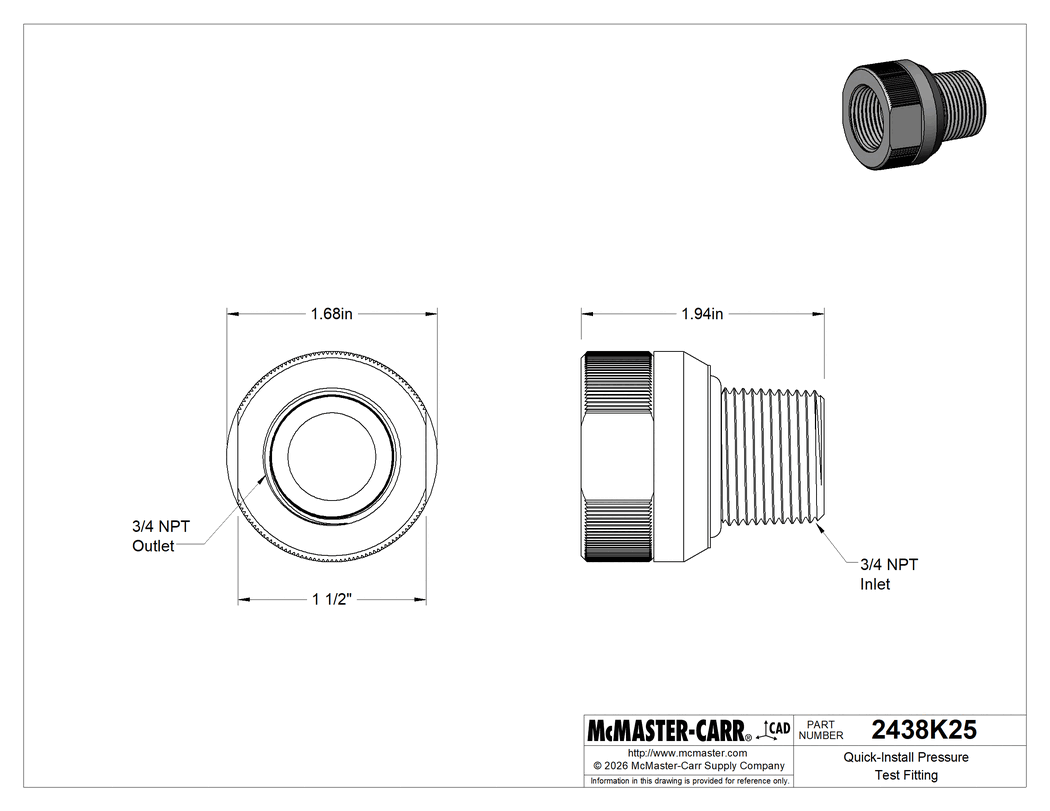

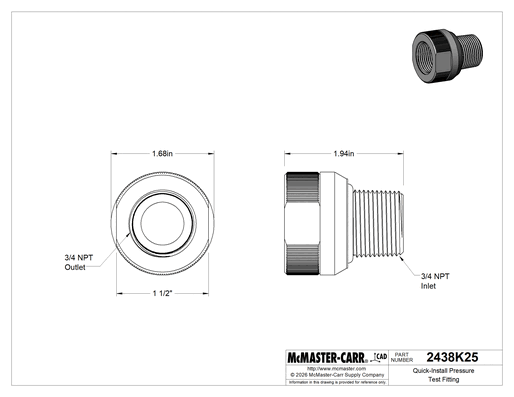

The information in this 3-D model is provided for reference only.
