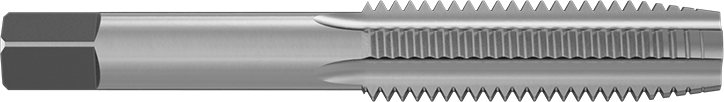

Oversized Tap
M12 x 1.75 mm Thread, 1-21/32" Thread Length
For Threading | Fastener Threads |
Thread Direction | Right Hand |
Size Designation | Oversized |
Material | High-Speed Steel |
Finish | Uncoated |
Chamfer Type | Plug |
Thread | |
Size | M12 × 1.75 mm |
Length | 1 21/32" |
Overall Length | 3 3/8" |
Thread Type | Metric |
Number of Flutes | 4 |
Drill Bit | |
Size | 10.25 mm |
Decimal Equivalent | 0.404" |
Shank Type | Square |
Flute Type | Straight |
For Use On | Aluminum, Brass, Bronze, Copper, Iron, Nickel, Plastic, Stainless Steel, Steel |
Maximum Tapping Depth | 2 15/16" |
Number of Tapping Ends | 1 |
Pitch Diameter Limit | H11 |
Pitch Diameter Tolerance | 0.005" to 0.0055" |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | Not Compliant |
Schedule B Number | 820740.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Cut slightly oversized threads to create space for plating and compensate for heat treatments that shrink threads. These taps have a pitch diameter that’s 0.0055" larger than standard taps. Their straight flutes are good for most jobs.
High-Speed Steel—The most versatile taps resist heat and wear to stay sharp. They’re good for most metals and plastic.
Uncoated—The economical choice, these won't last as long as coated taps.
Plug Chamfer—Our go-to chamfer type, these thread both through holes and blind holes. The tapered section is shorter than a taper chamfer and longer than bottoming chamfer. As a result, they're easier to turn than bottoming taps but require more force than taper taps.

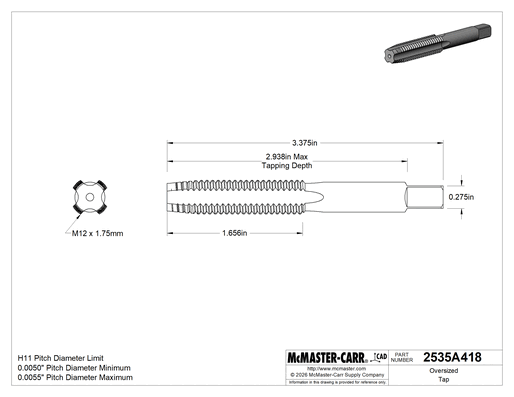

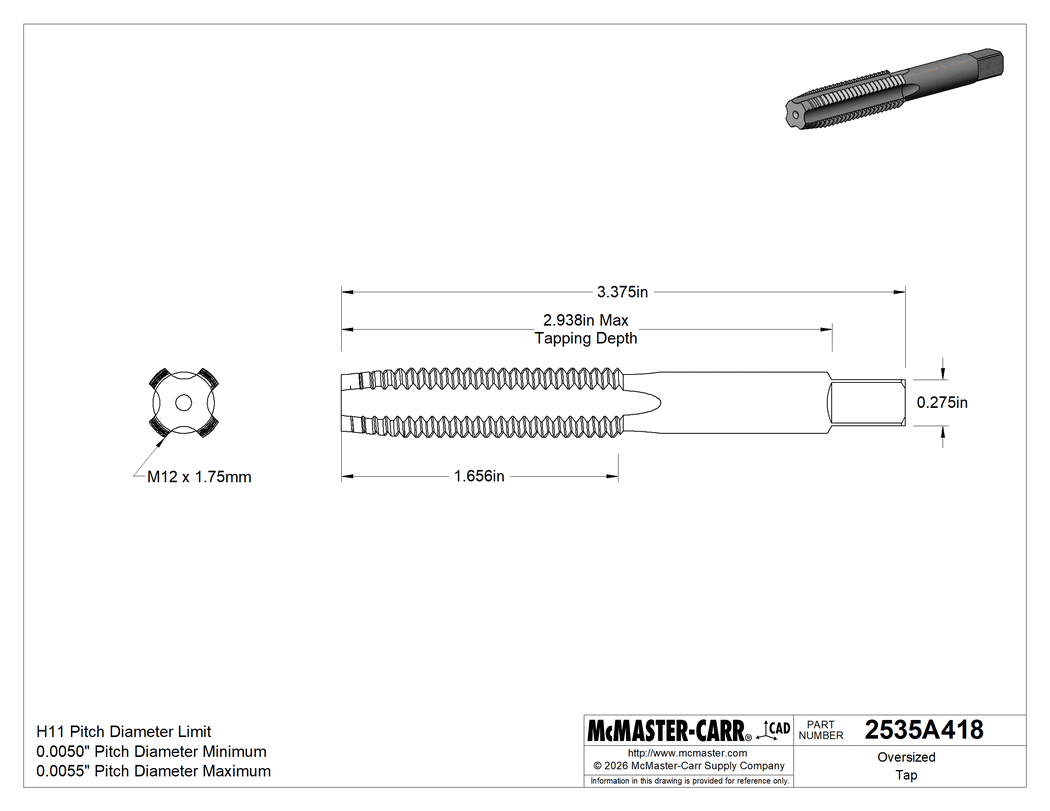

The information in this 3-D model is provided for reference only.
