    Long-Reach Hex-Nut Expansion Plug with Bypass

    for 1-1/2 Pipe Size

    Image of Product. Bottom orientation. Long-Reach Hex-Nut Expansion Plug with Bypass, for 1-1/2 Pipe Size.

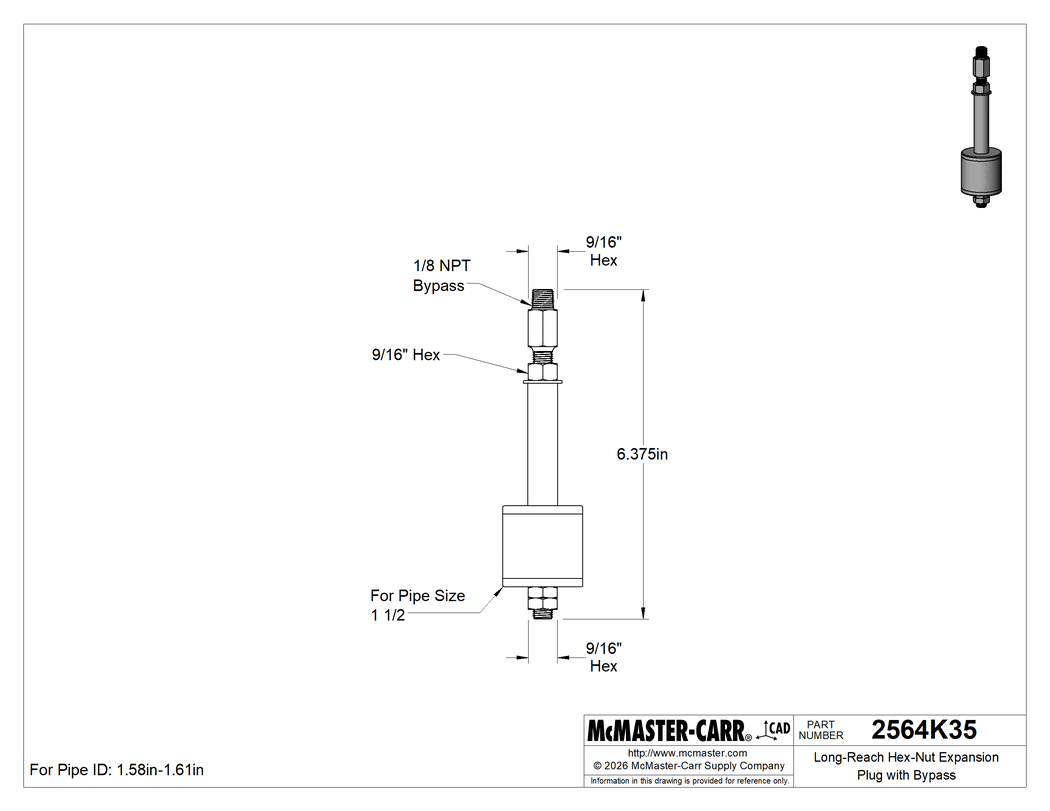

    Technical Drawing of Long-Reach Hex-Nut Expansion Plug with Bypass, for 1-1/2 Pipe Size.

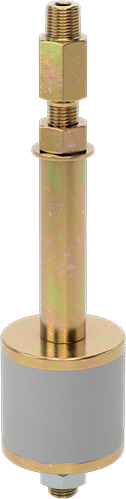

    Image of Product. Bottom orientation. Long-Reach Hex-Nut Expansion Plug with Bypass, for 1-1/2 Pipe Size.

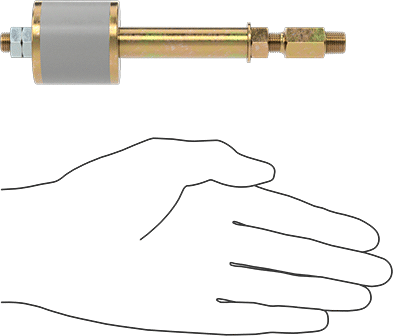

    Image of Product. Side1 orientation. Contains SizingReference. Long-Reach Hex-Nut Expansion Plug with Bypass, for 1-1/2 Pipe Size.
    2-D PDF
    0000000 each
    2564K35
    In stock
    2564K35
    0000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Material

    Stem

    Zinc-Plated Steel

    Seal

    Neoprene

    For Pipe

    Size

    1 1/2

    ID

    1.58" to 1.61"

    Maximum Back Pressure

    Air

    75 psi

    Water

    173 ft. of head

    Overall Height

    6 3/8"

    Temperature Range

    -20° F to 225° F

    Bypass

    Connection Port

    Pipe

    Pipe Size

    1/8

    Thread Type

    NPT

    Gender

    Male

    Expansion Plug Type

    Hex Nut

    Performance

    Long Reach

    Sealing Location

    Inside Pipe

    With Bypass

    Yes

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    Not Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    830990.0000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Plug your pipe from the inside. Insert these expansion plugs deep into your pipe, and then tighten the nut on the stem. Use the bypass tube to add air, water, and fluid or relieve back pressure.

    Maximum Air Back Pressure—Maximum air back pressure is the amount of pressure a plug can withstand without moving.

    Maximum Water Back Pressure—Maximum water back pressure refers to the pressure resulting from the height of the water above the plug.

    The information in this 3-D model is provided for reference only.
