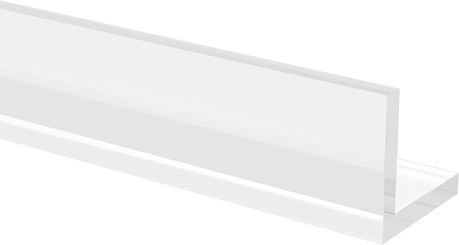

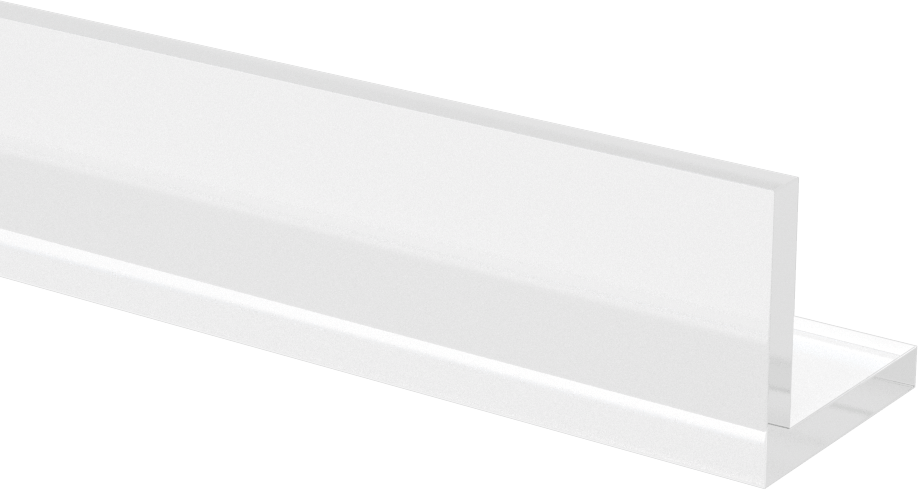

Clear Chemical-Resistant PVC 90 Degree Angle
1-1/4" x 1-1/4" Outside Size, 5 Feet Long
Wall Thickness | 3/16" |
Wall Thickness Tolerance | -0.063" to 0.063" |
Length | 5 ft. |
Length Tolerance | -1" to 1" |
Outside | |
Height | 1 1/4" |
Height Tolerance | -0.125" to 0.125" |
Width | 1 1/4" |
Width Tolerance | -0.125" to 0.125" |
Inside | |
Height | 1 1/16" |
Width | 1 1/16" |
Temperature | 32° F to 140° F |
Tensile Strength | 7,260 psi |
Impact Strength | 0.48 ft·lbf/in to 2 ft·lbf/in |
Color | Clear |
Flammability Rating | UL 94 V-0 |
Application | Multipurpose |
Chemical Resistance | |
Excellent | Coolant, Diesel Fuel, Fuel Oil, Gasoline, Heating Oil, Hydraulic Fluid, Hydrochloric Acid, Hydrogen Peroxide, Isopropyl Alcohol, Kerosene, Methanol (Methyl Alcohol), Mineral Oil, Nitric Acid, Phosphoric Acid, Sodium Hydroxide (Caustic Soda), Sodium Hypochlorite (Bleach), Synthetic Oil, Vegetable Oil, Water |
Moderate | Acetic Acid (White Vinegar), Sulfuric Acid |
Not Rated | Lacquer Solvents |
Not Recommended | Acetone, Chlorine, Methyl Ethyl Ketone (MEK) |
Clarity | Clear, Semi-Clear |
Coefficient of Friction | Not Rated |
Coefficient of Thermal Expansion | 3.7 × 10^-5 /°F to 4.1 × 10^-5 /°F |
Density | 0.049 lb/in³ |
Dielectric Strength | 1,270 V/mil |
Environment | Food and Beverage |
Fabrication | Extruded |
Flexibility | Semi-Rigid |
Flexural Modulus | 380,000 psi |
For Use Outdoors | No |
For Use With | Beverage, Food, Coolant, Diesel Fuel, Fuel Oil, Gasoline, Heating Oil, Hydraulic Fluid, Hydrochloric Acid, Hydrogen Peroxide, Isopropyl Alcohol, Kerosene, Methanol (Methyl Alcohol), Mineral Oil, Nitric Acid, Phosphoric Acid, Sodium Hydroxide (Caustic Soda), Sodium Hypochlorite (Bleach), Synthetic Oil, Vegetable Oil, Water |
Hardness | Durometer 84D |
Hardness Rating | Hard |
Inside Corner Shape | Square |
Leg Edge Shape | Square |
Material | PVC Type 1 |
Performance | Chemical Resistant, Clear, Easy Thermoform, Extra High Strength, Flame Retardant, Thermally Stable, Ultra Electrically Insulating, Ultra Moisture Resistant |
Shape | 90° Angle |
Texture | Smooth |
Light Transmission | 80% |
Outside Corner Shape | Square |
Tolerance Rating | Standard |
Warning Message | Physical and mechanical properties are not guaranteed. They are intended only as a basis for comparison and not for design purposes. |
Water Absorption | 0.03% |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
RoHS Compliance | Not Compliant |
Schedule B Number | 391620.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
When visibility is essential, use these clear 90° angles for tank parts and in chemical-processing applications. PVC resists acids and alkalies.

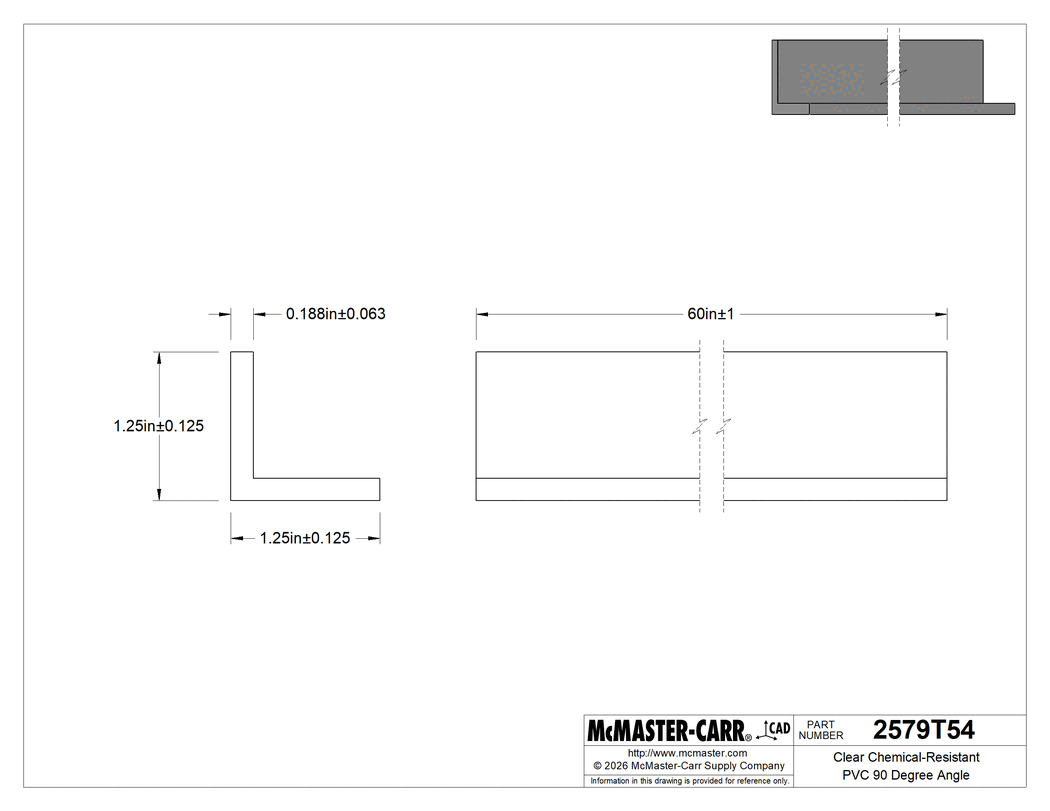

The information in this 3-D model is provided for reference only.
