    Displayport Cord

    Displayport Plug x Mini-Displayport Plug, 3 Feet Length

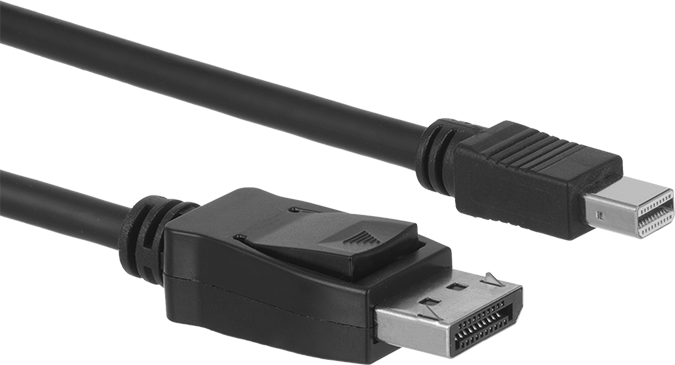

    Image of Product. Front orientation. Displayport Cord, Displayport Plug x Mini-Displayport Plug, 3 Feet Length .

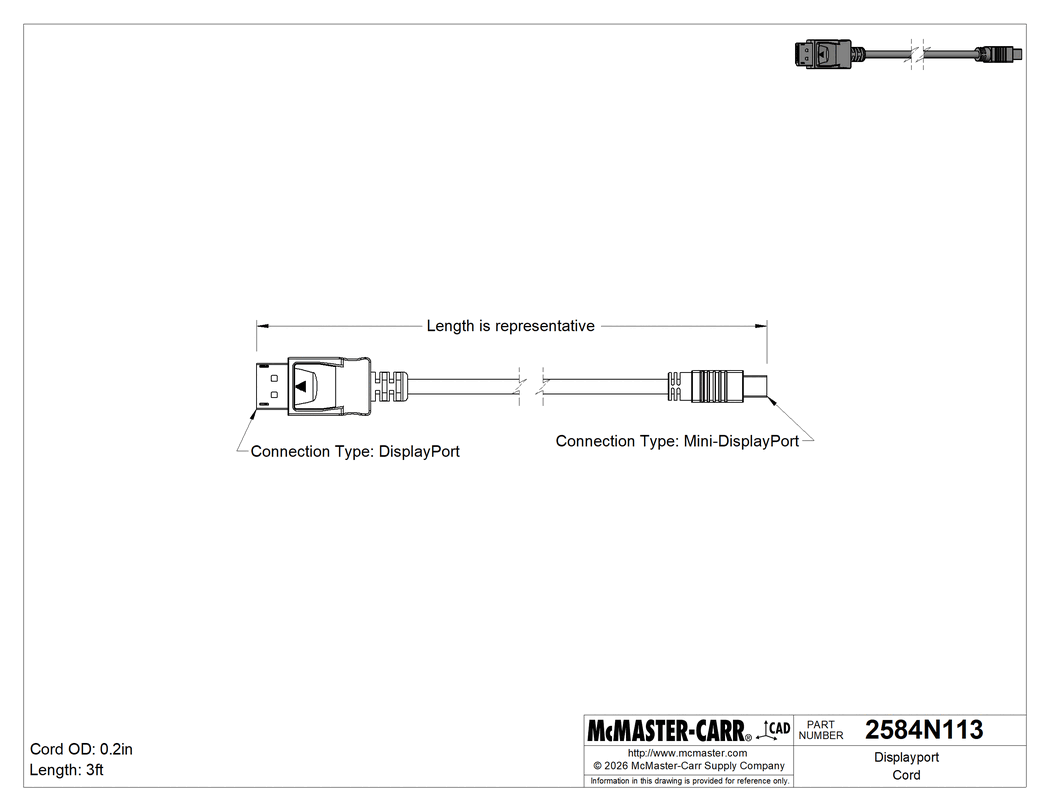

    Technical Drawing of Displayport Cord, Displayport Plug x Mini-Displayport Plug, 3 Feet Length .
    2-D PDF
    000000 each
    2584N113
    In stock
    2584N113
    000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Plug

    Electrical Connection

    Standard DisplayPort

    End Shape

    Straight

    Gender

    Male

    Plug

    Electrical Connection

    Mini DisplayPort

    End Shape

    Straight

    Gender

    Male

    Length

    3 ft.

    Shield Type

    Foil

    American Wire Gauge (AWG)

    28

    Cord OD

    0.2"

    Color

    Black

    Flexibility

    Flexible

    Shielding

    Shielded

    Signal Type

    Video

    Country of Origin

    China

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    854442.0000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Often used to connect multiple monitors to a single computer, these cords send video and audio to a display device. Shielding blocks signal interference from nearby equipment and devices.

    The information in this 3-D model is provided for reference only.
